Specification
Brand : Midzoo

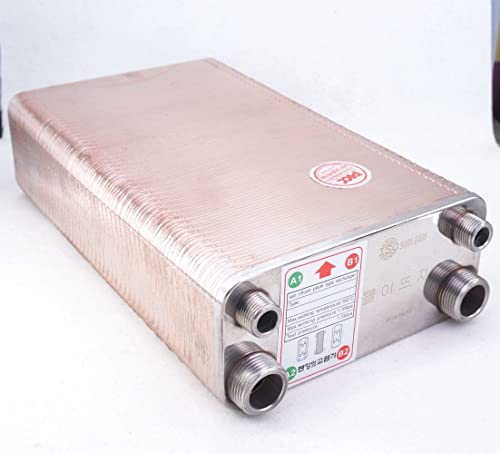

BulletPoint : 80 Plates Heat Exchanger Beer Wort Chiller Cooler SUS 304 Stainless Steel For Homebrew Cooling
BulletPoint1 : Quickly Chilling Beer/ Wort: Compact heat exchanger is designed for chilling your beer/ wort/water. Compared with the immersion chiller, our heat exchanger has 20/30/40 brazed plates and cools wort within minutes rather than several hours
BulletPoint2 : High Thermal Efficiency: Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency.
BulletPoint3 : Great Upgrade: Chiller connection ports are all 1/2" male NPT quick disconnect fittings. It has a tremendously low restriction, which makes it ideal for working with a pump to do gravity transferring.
BulletPoint4 : No Leaks & Rust-free: Wort chiller's plates and fittings are made of 304 stainless steel and have been brazed together with pure copper in an oxygen-free furnace, there is no potential for leaks and rust.
BulletPoint5 : Compact Design: Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
Color : 30 Plates
ExternallyAssignedProductIdentifier : 7732093261886
ItemName : 80 Plates Heat Exchanger Beer Wort Chiller Cooler SUS 304 Stainless Steel for Homebrew Cooling
ItemPackageQuantity : 1
ItemTypeKeyword : beer-brewing-wort-chillers
Manufacturer : Midzoo
Material : Stainless Steel
PartNumber : GxCZKGD-0355
ProductDescription : 20 Plates Chiller:
Dimension: 190mm x 72mm x 65mm
Garden hose thread : 1/2" Male NPT fitting

30 Plates Chiller:
Dimension: 190mm x 72mm x 87mm
Garden hose thread : 3/4" Male NPT fitting

40 Plates Chiller:
Dimension: 190mm x 72mm x 112mm
Water side out/in: 3/4" NPT Theaded
Wort side out/in: 1/2" NPT Threaded

Feature:
The wort chilling rate is depending on tap water temperature and rate of flow.
Low temperature, faster cooling rate
High flow rate, faster cooling rate

Principle: Counterflow chillers are a tube-inside-a-tube design and work by running hot wort from the boil kettle through the inner tube while cold water flows in the opposite direction through the outer tube.

OPERATION TIPS
1. Soak the wort side in a suitable cleaning solution
2. Rinse with water, after filling it with cleaning solution, tip it from side to side to make sure air bubbles escape
3. Let dry after it has been flushed
4. Connect wort-in port to the mash tun
5. Connect wort-out port to your fermenter
6. Connect water-in port to garden hose getting cool water
7. Connect water-out port to garden hose to remove warm water
8. Turn on the cooling water first and then open the valve on your pot to start the wort flow
9. Flush the wort side of the chiller with plenty of clean water immediately after use
10. To remove deposits, soak in a suitable cleaner for 4 hours and then flush

Pacakge Includes: 1Pc wort chiller
ProductSiteLaunchDate : 2021-11-16T15:02:43.769Z
Size : Small
Style : Modern
UnspscCode : 24131500
