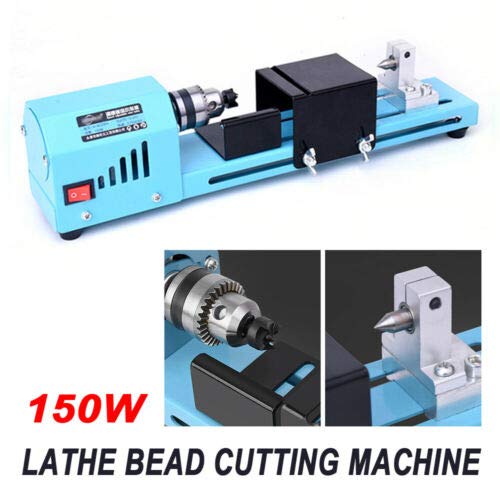

FEATURES:
1. Specially designed for the home DIY enthusiasts, small and portable size with strong power.
2. Stainless steel dustproof cover with super convective cooling hole.
3. The welding line is covered with a full heat shrinkable tube.
4. With 7 levels of power adapter enable you to adjust the rotating speed easily to meet different cutting speed.
5. High quality aluminum alloy base and pure steel structure drill chuck.
6. Super large torque ball bearing motor, maximum rotating speed up to 7000RPM providing ultra strong cutting power with low noise, you can use it at home.
SPECIFICATIONS:
Main material: Aluminum alloy
Color: Blue
Voltage Input: AC 110-230V 50/60Hz
Voltage Output: DC 12-24V
Rated power: 150W
Rated speed: 4000-7000RPM
Power: 7 level of adjustable speed
Max Processing length: 145mm / 5.7in
Max Processing diameter: 50mm / 2.0in
Chuck clamping range: 0.6-6.5mm / 0.02-0.26in
Swing diameter: max 50mm / 2.0in
Grip length: max 140mm / 5.51in
Matching saw blade diameter: max 50mm / 2.0in
Machine size: 345*60*80mm / 13.6* 2.36 * 3.15in
Package lncluded: see picture
NOTE:
1. If the user does not have lathe base experience, when using, uses should follow: low speed, slowly, cautiously and use other security operations.
2. The speed can be adjusted in 4000-7000RPM, speed of cutting wood should not exceed 5000, grinding can use higher speed.
3. Drill chuck axis, the axis of the wood, the tailstock center axis of the drill should be in a straight line, or need to adjust the nut.
4. If not a cylinder, the speed should be reduced.
5. Tailstock bearing without lock tight.
6. When using a knife, locking the bottom of screw, location should be away from timber 1-1.5cm.
