Specification
Brand : Heltec Automation
BulletPoint1 : Connect easily: Wifi extender factory-matched, this HaLow dongle is a plug-and-play network bridge designed to dramatically extend the transmission range of traditional networks with a low-power design for greater penetration. Internet extender wifi booster like an ultra long-range Wi-Fi.
BulletPoint2 : Innovative technology: The HaLow dongle wifi booster integrates seamlessly with traditional Wi-Fi networks and is easy to deploy. You can connect your device to the dongle in three ways. USB Type C, Ethernet, and 2.4GHz Wi Fi, and it's long range and scalable.
BulletPoint3 : Four Bandwidth Modes: This HaLow dongle wifi extenders signal booster for home offers four bandwidth modes (1/2/4/8 MHz), a maximum transmit power of 21±1 dBm, and a data rate of up to 32.5 Mbps@8 M. It is lightweight and relatively easy to deploy.It can be more quickly connected and put to use.
BulletPoint4 : Operating Frequency: The frequency range of this HaLow dongle is 902-928 MHz. The HT-HD01 adopts Wi-Fi HaLow technology and complies with the IEEE 802.11ah standard, operating in the unlicensed SUB-1G frequency band (902-928 MHz). With its rich features and large capacity, it can access a large number of devices at the same time.
BulletPoint5 : Wide range of applications: This HaLow dongle is easy to configure and has a variety of operating modes. Whether for home use or IoT development, this wifi repeater device can significantly reduce wiring costs and increase network flexibility. Widely used in home networking and smart home and other fields.
CompatibleDevices : Wi-Fi HaLow Gateway, Wi-Fi (2.4G) Device, Ethernet Device
DataTransferRate : 32.5 megabits_per_second
ExternallyAssignedProductIdentifier1 : 753763335789
ExternallyAssignedProductIdentifier2 : 0753763335789
Frequency : 928 MHz
FrequencyBandClass : quad_band
IncludedComponents : Viewable details page

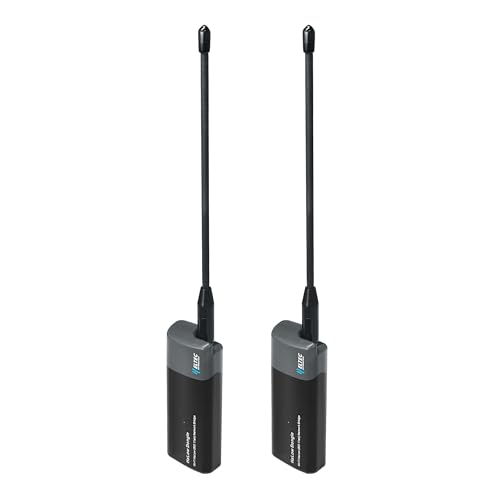

ItemName : Heltec Wi-Fi HaLow Dongle WiFi Extender Signal Booster Wireless Bridge 802.11ah Network Booster Long Range Wireless Access WiFi Extender Ethernet Bridge Repeater (AP+STA Pair Set)
ItemPackageDimensions_Height : 16.5 centimeters
ItemPackageDimensions_Length : 23 centimeters
ItemPackageDimensions_Width : 13.5 centimeters
ItemTypeKeyword : network-access-points
Manufacturer : Heltec
ModelName : HT-HD01
ModelNumber : AP+STA Pair Set
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : ZH-ZC-304-1-2
ProductDescription :

Descriptions

This long-range communicator based on Wi-Fi HaLow can replace Ethernet cables in certain scenarios. IEEE 802.11ah protocol, HT-HD01 operates in the unlicensed SUB-1G frequency band (902–928 MHz). It offers four bandwidth modes (1/2/4/8 MHz), with a maximum transmit power of 21±1 dBm and data rates of up to 32.5 Mbps@8M.

Application

Cooperate with HT-H7608 HaLow router to achieve star networking.

Pairing two HT-HD01 devices for point-to-point communication.

Specifications

MCU:MT7628

Wi-Fi HaLow Module:HT-HC01

Wi-Fi:IEEE 802.11b/g/n

Wi-Fi HaLow: IEEE 802.11ah

Frequency: 902-928MHz

Max. TX power: 21±1 dBm

Bandwidth: 1/2/4/8 MHz

Max Data Rate: 32.5 Mbps @ 8 MHz

ANT Interface:SMA female socket

Ethernet:RJ45(10/100M)，USB-C

Operating Condition:Temperature: -20 ~ +70℃ Humidity: 10%～90%( no-condensing)

Power:USB-C, 5V

Consumption:300mA(Typical)

Ingress Protection:Without waterproof treatment

Shell material:Aluminum Alloy, Plastic

Weight:53.5g (Antenna included),40g(Antenna excluded)

Dimensions:87.5②*32.5*20m3(Antennaexcluded)

Packing list

The default packing list without selecting any accessories is as follows:

Wi-Fi HaLow Dongle AP(Only valid when selecting AP configuration)x1

Wi-Fi HaLow Dongle STA(Only valid when selecting STA configuration)x1

Wi-Fi HaLow Dongle AP+STA(Only valid when selecting AP+STA configuration)x1

Atennax1

USB-C cablex1

Reset button trigger pinx1

Paper user guidex1

Ethernet jumperx1

Special reminder

1.AP means "AccessPoint",STA means"Station".

2.AP and STA must becombined into one setfor use.

3.Please contact cus-tomer service whenplacing an order onhow to select specifi-cations.
