Specification
Brand : Woods
BulletPoint1 : VERSATILE CABLE FOR RESIDENTIAL USES: NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, lighting, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
BulletPoint2 : DURABLE: Type NM-B cable (nonmetallic-sheathed cable) may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors
BulletPoint3 : EASY INSTALLATION: Coated in patented SIMpull Cable Jacket for easier pulling, stripping, and installation
BulletPoint4 : QUICK SIZE IDENTIFICTION: This wire is color coaded for easy size identeification, White - 14 AWG, Yellow - 12 AWG, Orange - 10 AWG, and Black - 8 AWG and 6 AWG.
BulletPoint5 : SPECIFICATIONS: Made in America, 6 gauge, 3 conductors with ground, 25' per coil.UL Listed type NM-B
BulletPoint6 : UL Listed type NM-B
Color : Orange,White,Yellow
ConnectorGender : Female-to-Male
ConnectorType : standard 4 pin 240 male connector
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 032886263736
ExternallyAssignedProductIdentifier2 : 0032886263736
ExternallyAssignedProductIdentifier3 : 00032886263736
IncludedComponents : Electrical & Heating; Cord & Power Management;electrical-cables
InputCurrent : 50 amps
ItemDisplayWeight : 8.9 pounds
ItemForm : Strip
ItemLength : 48 inches

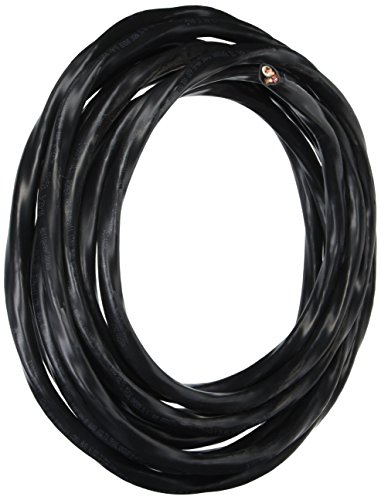

ItemName : Woods 63950021 25' 6-3 NMW/G Wire
ItemPackageDimensions_Height : 29.9974 centimeters
ItemPackageDimensions_Length : 9.6012 centimeters
ItemPackageDimensions_Width : 29.21 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electrical-wires
Manufacturer : Coleman Cable
Material : Copper
ModelName : 018-478
ModelNumber : 63950021
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfWires : 3
PackageLevel : unit
PartNumber : 63950021
PowerSourceType : hand_powered
ProductDescription :

Applications:
Non-metallic sheathed NM-B cable is used in normally dry installations in residential wiring, as branch circuits for outlets, lighting and other residential loads. Its applications are outlined in NEC 2008 and NEC 2011 Article 334. NM-B is rated at 600 volts and although it is rated at a conductor temperature of 90°C dry , its ampacity is limited to 60°C according to the NEC 2008 and NEC 2011. It may be fished through masonry or tile walls, where not exposed or subject to excessive moisture or dampness. NM-B cables are LEAD FREE and RoHS compliant. Equivalent to Romex NM-B.

Standards:
Meets or exceeds all applicable ASTM specifications
UL Standard 83: Thermoplastic Insulated Wires and Cables
UL Standard 719: Non-Metallic Cables
Federal Specification A-A-59544 and requirements of the NEC
Voltage rating - 600 volts

Construction:
Insulation:Color coded polyvinyl chloride (PVC) compound with a nylon covering meeting the required thickness of Type THHN. Conductor insulation is rated 90℃C
Sheath:30 mil color coded PVC sheath rated 90℃C is applied over the completed assembly

Specifications:
Size:12 AWG
Number of Conductors:2
PVC Insulation Thickness:0.76 mm / 0.029 inches
Ground Wire Size:10 AWG
Nylon Thickness:0.13 mm / 0.005 inches
Nominal Cable Dimensions: 14.2 mm x 0.55 inches
Weight per Foot: 0.254 lbs
Allowable Ampacity: 20 Amps

ProductSiteLaunchDate : 2007-01-18T20:13:26-00:00
RecommendedUsesForProduct : Windows,Doors
Size : 250FT Cut
Strands : Multi Strand
StreetDate : 2014-03-21T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 25
Voltage : 600 volts
