Specification
Brand : wirenco
BulletPoint : 25 feet Shielded Single Conductor Wire
BulletPoint1 : #8 AWG Residential Wire for Outlets, Switches and Other Loads
BulletPoint2 : Copper (Cu) Conductors
BulletPoint3 : For Dry Locations up to 90 degrees Celsius or 194 degrees Farenheit. For Exposed and Concealed Applications.
BulletPoint4 : 600-Volt Maximum with an Allowable Ampacity of 40 Amps
BulletPoint5 : Equivalent to Romex NM-B - Wire May not be the Same as the Picture Shown.
Color : Black
ExternallyAssignedProductIdentifier1 : 0840387705347
ExternallyAssignedProductIdentifier2 : 840387705347
ExternallyAssignedProductIdentifier3 : 00645208010378
IncludedComponents : Wire
ItemDisplayDimensions_Length : 0.34 inches
ItemDisplayWeight : 29.6 pounds

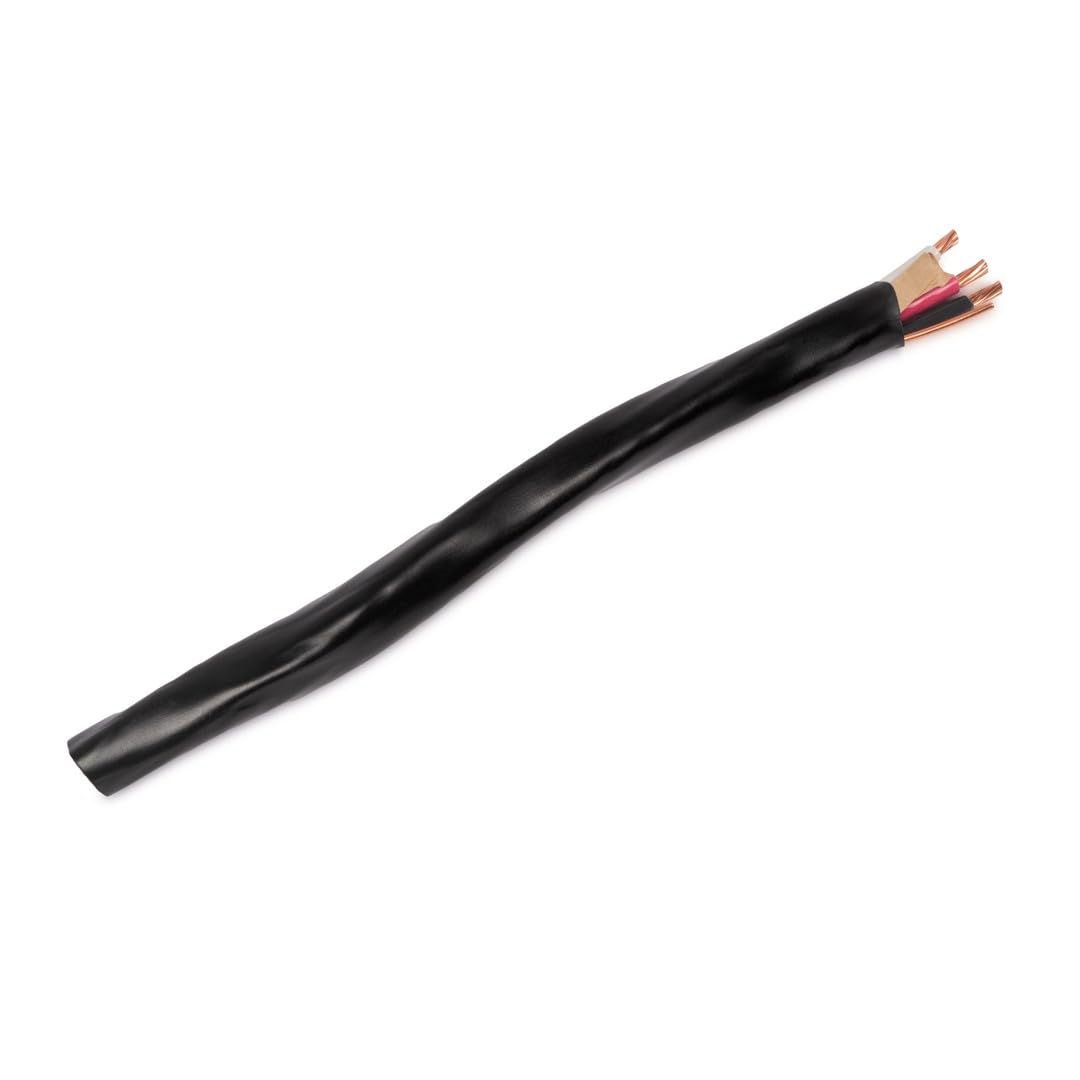

ItemName : Wirenco 8/3 NM-B, Non-Metallic, Sheathed Cable, Residential Indoor Wire, Equivalent to Romex (20Ft Cut)
ItemPackageDimensions_Height : 0.762 centimeters
ItemPackageDimensions_Length : 19.05 centimeters
ItemPackageDimensions_Width : 9.398 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electrical-wires
Manufacturer : wirenco
Material : Copper
ModelNumber : 37876-#
NumberOfItems : 1
NumberOfWires : 4
PartNumber : 37876-#
ProductDescription :

Applications:
Non-metallic sheathed NM-B cable is used in normally dry installations in residential wiring, as branch circuits for outlets, lighting and other residential loads. Its applications are outlined in NEC 2008 and NEC 2011 Article 334. NM-B is rated at 600 volts and although it is rated at a conductor temperature of 90°C dry , its ampacity is limited to 60°C according to the NEC 2008 and NEC 2011. It may be fished through masonry or tile walls, where not exposed or subject to excessive moisture or dampness. NM-B cables are LEAD FREE and RoHS compliant. Equivalent to Romex NM-B.

Standards:
Meets or exceeds all applicable ASTM specifications
UL Standard 83: Thermoplastic Insulated Wires and Cables
UL Standard 719: Non-Metallic Cables
Federal Specification A-A-59544 and requirements of the NEC
Voltage rating - 600 volts

Construction:
Insulation:Color coded polyvinyl chloride (PVC) compound with a nylon covering meeting the required thickness of Type THHN. Conductor insulation is rated 90 degrees Celsius.
Ground: Soft bare copper per ASTM B3
Sheath: 30 mil color coded PVC sheath rated 90 degrees Celsius is applied over the completed assembly

Specifications:
Size: 8 AWG
Number of Conductors: 3 +1 ground
PVC Insulation Thickness: 0.76 mm / 0.029 inches
Ground Wire Size: 10 AWG
Nylon Thickness: 0.13mm / 0.005 inches
Nominal Cable Dimensions: 14.2mm / 0.55 inches
Weight per foot: 0.254 lbs
Allowable Ampacity: 40 amps

ProductSiteLaunchDate : 2021-01-04T08:00:00.000Z
Size : 20Ft Cut
Strands : 19
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
Voltage : 600 volts
