Specification
Brand : DAE
BulletPoint1 : UL/cUL Listed, Conform to ANSI C12.1 national accuracy standards. Comes with a lower cover which has two 3/4" knockouts to connect the conduits. One in-inline fuse with holder is attached for you to connect hot wire A to VA of the meter. The meter is powered by VA and VB. VC just takes reference of voltage from hot wire C and does not need fuse. Please connect the wiring as per 5th picture.
BulletPoint2 : P254-200D KIT is ready for Cloud Metering (2nd picture) with DAE CC2030 Gateway. CC2030 will collect energy data from DAE electrical meters and send them to Cloud Server through Ethernet. With PC, cell phone or tablet, landlords or property managers can get access to real time data, monthly kWh and billing reports to their tenants. TOU (Time of Use) billing reports are also available. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
BulletPoint3 : For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly (3rd picture). Indoor use only, DAE B1725 watertight enclosure is available for outdoor use (4th picture).
BulletPoint4 : Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Following CTs are available with the meter. Split Core CTs DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A), CT-100S (100A) and Solid Core CT-600D9 (600A), CT-400D6 (400A), CT-200D3 (200A).
BulletPoint5 : For monitoring up to 8 electric panels remotely with cell phone, PC and generate billing reports, you will just need 1 SMB350-UL-8-B KIT + 1 CC2030 KIT.
Color : White
ExternallyAssignedProductIdentifier1 : 730707517586
ExternallyAssignedProductIdentifier2 : 0730707517586
ItemDisplayWeight : 2.02 pounds

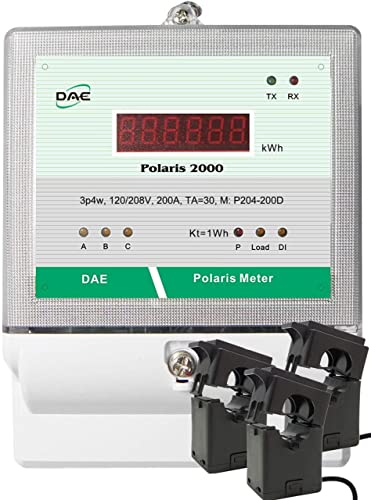

ItemName : DAE P204-200D KIT, UL kWh Smart Submeter, 3 Phase, 200A, 120/208v, 3 Split Core CTs, Demand meter
ItemPackageQuantity : 1
ItemTypeKeyword : electrical-wires
Manufacturer : DAE
Material : copper
ModelNumber : P204-200D KIT
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : P204-200D KIT
ProductDescription :
200A Revenue-Grade, Polaris 2000, kWh Meter, 120/208V, 3 phases, 4 wires (3 hot wire, 1 neutral), with 3 Split core Ct (inner dia. 0.94 inch), Demand Meter.
Solid core CTs (CT-200D3)optional. Solid core CTs are suggested for new construction or for retrofitting construction when the power can be shut off. Split core CTs are ideal for retrofitting projects without having to disconnect wire terminations.
1000 pulses per kWh
Current sensors (CTs) accuracy will not be affected when the CTs are mounted up to 2000 feet away from the meter.
kWh reading With LED display
Parallel up to three sets of CTs for cumulative reading. Non-volatile Memory, the stored data is maintained through power outages.
With Demand (15 minute interval standard, 30 minute or 60 minute intervals available)
No conversion factor or multiplier required.
Five year warranty from the seller and manufacturer.
For the buyers outside of USA, in addition to the tax, the carriers may charge brokerage fee.
ProductSiteLaunchDate : 2015-08-15T07:00:00.000Z
Size : 200A
Style : W/o RS485, Split CTs, Demand
UnitCount : 1
UnspscCode : 39120000
Voltage : 120 volts
