Specification
AssemblyInstructions : Require Assembly
Brand : Haofy
BulletPoint1 : [Wide Application] Ideal for meteorology, environmental monitoring, aerospace, and more, this sensor is also suitable for use in gardens, greenhouses, weather stations, ships, and various other environments.
BulletPoint2 : [Accurate Wind Direction Measurement] Utilizing a design, this sensor accurately measures the direction of the wind for precise readings.
BulletPoint3 : [Abs Material] Made from low inertia abs material, this sensor ensures stable performance and longevity in various environments.
BulletPoint4 : [High Accuracy and Reliability] The wind direction sensor offers precise data with no dead spots, fear of , and excellent linearity for reliable use.
BulletPoint5 : [360?? Wind Direction Monitoring] Equipped with an internal angle sensor, this sensor can provide comprehensive wind direction information from all directions.
Color : Red
ExternallyAssignedProductIdentifier : 4934758546229
ExternallyAssignedProductIdentifier1 : 0844523031734
ExternallyAssignedProductIdentifier2 : 844523031734
IncludedComponents : Wind Cups
ItemDisplayDimensions_Depth : 4 inches
ItemDisplayDimensions_Length : 26 inches
ItemDisplayDimensions_Width : 14 inches
ItemDisplayWeight : 5 pounds

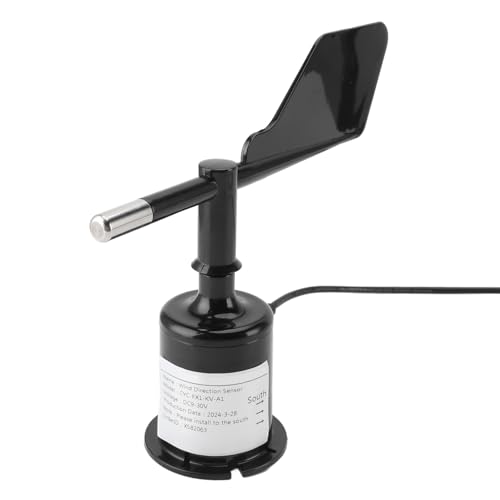

ItemName : 8 Indication Directions Wind Speed Sensor, Polycarbonate Anemometer Wind Measuring Tool, Wind Direction Sensor Transmitter, 360 Degree
ItemPackageDimensions_Height : 8 centimeters
ItemPackageDimensions_Length : 24 centimeters
ItemPackageDimensions_Width : 21 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : anemometers
Manufacturer : Haofy
Material : Aluminum
ModelName : Haofyou1nx7zbqf
ModelNumber : Haofyou1nx7zbqf
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : Haofyou1nx7zbqf
ProductDescription : Item Type: Wind Direction Sensor
Material: ABS
Weight: Approx. 385g / 13.6oz
Product Size: Approx. 223x190x70mm / 8.8x7.5x2.8in
Supply Voltage: DC 9-30V
Output: 4-20mA
Extension Wire Length At Connection: 0.8m / 2.6ft
Accuracy: Omni Directional: ± 3°
Resolution: Omni Directional: 1°
Starting Wind Speed: ≤0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity: DC12V power supply, current type output impedance ≤ 350Ω, DC24V power supply, current type output impedance ≤ 900Ω, voltage type output impedance ≥ 1KΩ
Operating Environment: Temperature -35℃-60℃
Humidity: ≤1 RH without condensation
Prevention Grade: IP64
Cable Grade: Rated Voltage: 300V 80°C
Mounting Hole Diameter: 3.2mm / 0.13in

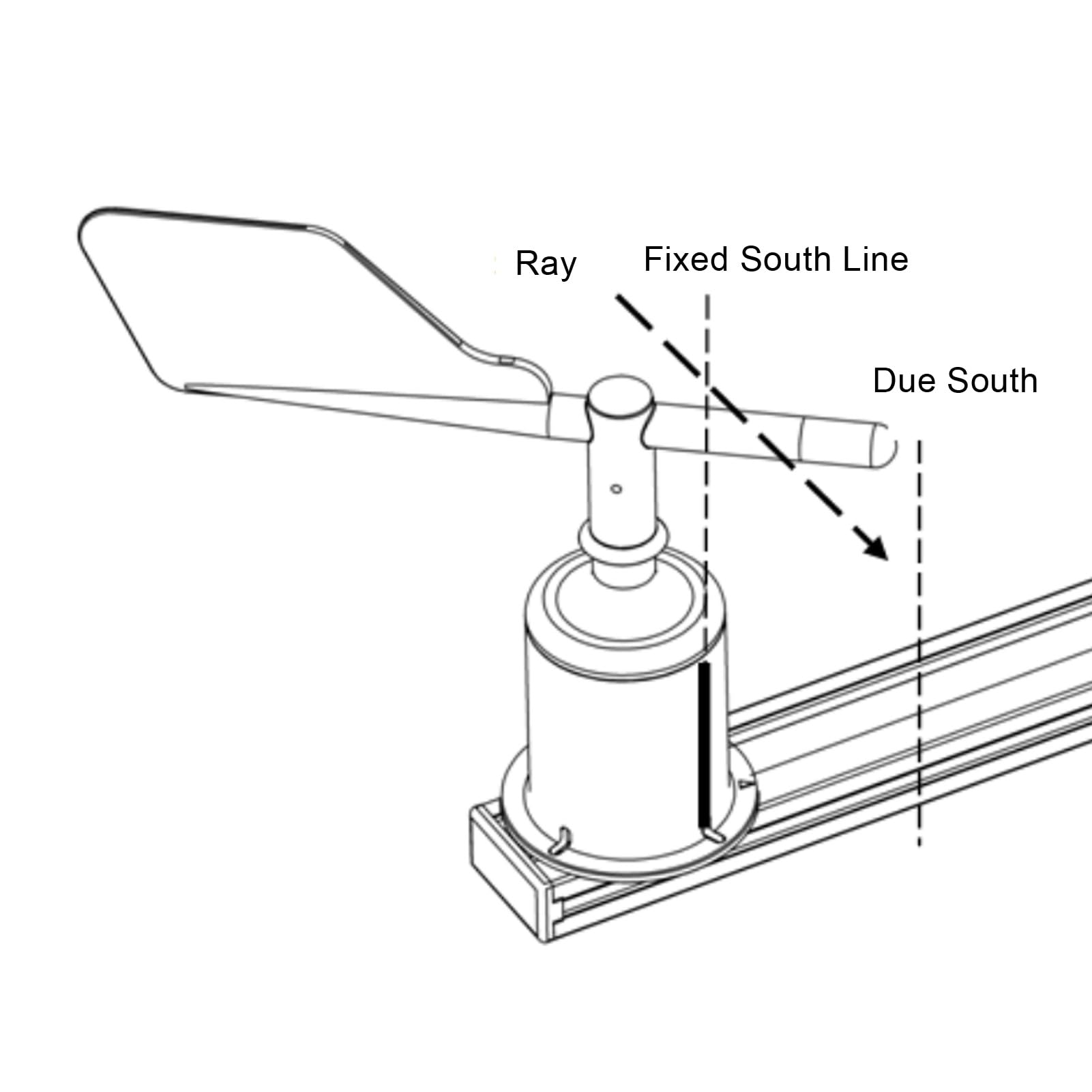

Aerial Plug Diameter: 15mm / 0.59in (It is recommended to reserve 25mm / 0.98in for easy wiring, wiring first, then install the fixed sensor)
Calculation Formula:
4-20mA: F=(I-4)/16x359
Attention:
F: Indicates the wind direction angle value, unit: °.
I: Sensor output current value, mA
Wiring Methods (Wire Sequence)
Wire color
Output (current)
Red Power positive
Black Power negative
Yellow Signal
PackageList:
1 xWind Direction Sensor

ProductSiteLaunchDate : 2025-02-18T00:00:00.000Z
Size : 17.00X17.00X4.80CM
Style : Stylish
SupplierDeclaredDgHzRegulation : not_applicable
Theme : Animal
UnspscCode : 46191500
