Specification
Brand : Uphilltool
BulletPoint1 : ➤【Premium Material】The milling cutter blade is made of high quality tool steel, designed with double blade, can be used on both sides. Thick high-quality paint surface coating, uniform heat conduction, has good invisibility and stability.
BulletPoint2 : ➤【High Performance Welding Machine】Butt fusion welding machine is suitable for PE PP PB PVDF HDPE PVC pipes and fittings hot-melt butt welding. Welding level(Φ, mm) Outer dia 63mm(2.48''), 75mm(2.95''), 90 mm (3.54''), 110 mm (4.33''), 125 mm (4.92''), 140 mm (5.51''), 160 mm (6.30'').
BulletPoint3 : ➤【Heat Fast and Evenly】The heating plate adopts independent temperature control system and non-stick PTFE coating, heat fast and evenly, The temperature can be adjusted manually.
BulletPoint4 : ➤【Excellent Work Efficiency】The heating plate adopts independent temperature control system, accurate scale temperature adjustment 0-280℃, quickly heating the tube, high working efficiency. Single side jacket structure makes the welding process shorter.
BulletPoint5 : ➤【Main Parameters】Power of Heater: 1.5KW/110V; Power of Milling Cutter: 1.1KW/110V; Working temperature: 300°c; Temperature deviation: ±5°c; Environment temperature: -5-40°c; Time required to reach soldering temperature: <20min
ExternallyAssignedProductIdentifier1 : 0689722891693
ExternallyAssignedProductIdentifier2 : 689722891693
IncludedComponents : 1x 160 four-ring rack, 1x 160 cutter, 1x 160 heating plate, 4x 63-140 tiles, 1x Tile screw, 1x Screwdriver, 1x Wrench, 1x Manual
ItemName : Pipe Fusion Welder, Manual Tube Butt Fusion Welding Machine Four-Ring Double-Column Pipe Welding Butt Welding Machine 4 Clamps for PE PP PB PVDF HDPE PVC 2.48"-6.30"
ItemTypeKeyword : power-welders
Manufacturer : Upthehill
Material : Aluminum alloy casting, 45# steel
ModelName : Pipe Fusion Welder
ModelNumber : 63-160MM
NumberOfItems : 1
PartNumber : Description
PowerSourceType : Corded Electric
ProductDescription :

Product Description

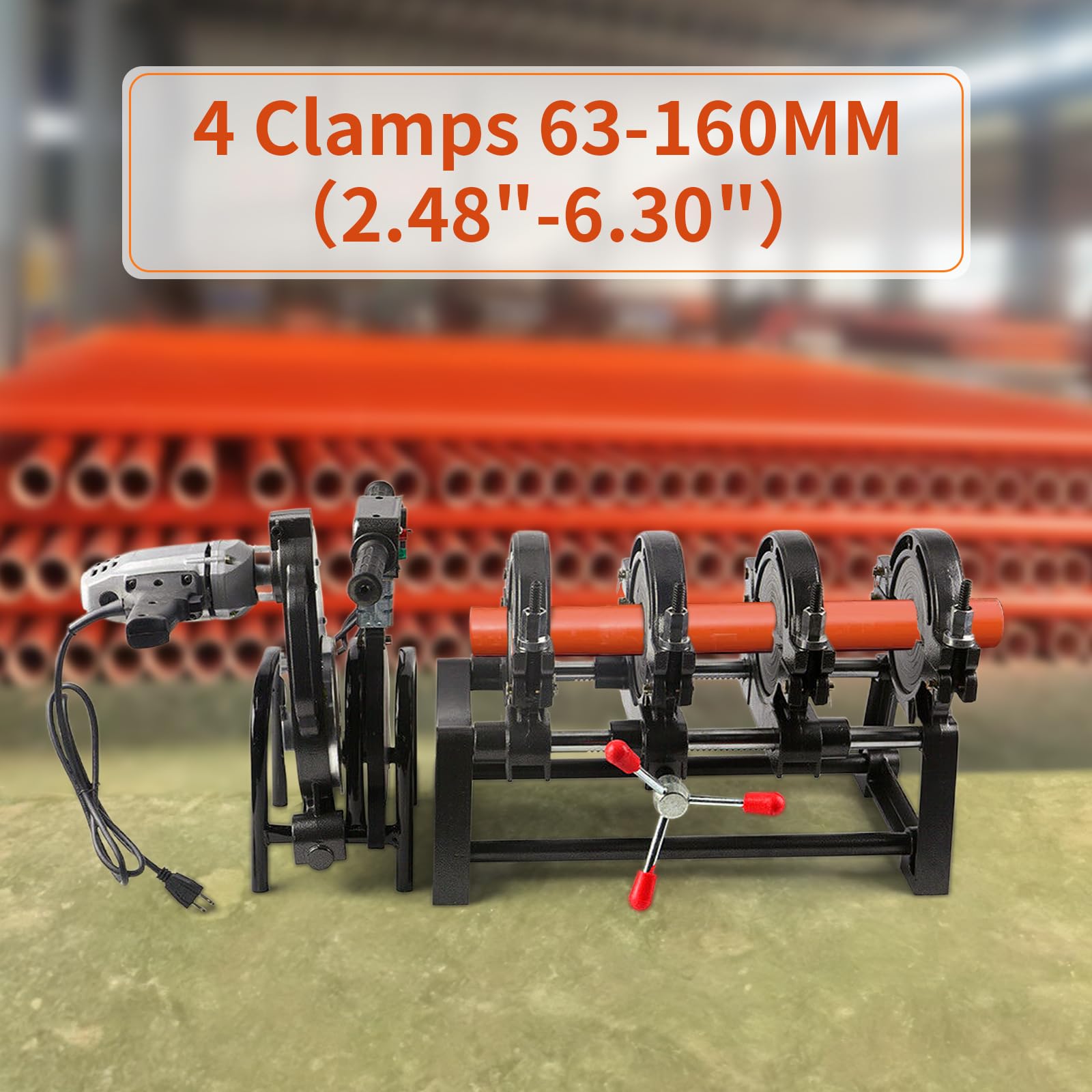

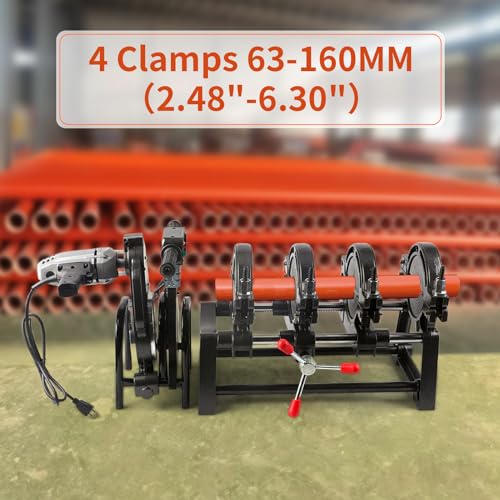

Manually Operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings.  High quality design and construction provides an excellent machine for welding both on the worksite and in the factory.  The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.

Specifications:

Model No.: 63-160MM four rings manual

Materials: Aluminum alloy casting, 45# steel

Welding level(Φ, mm) Outer dia 63mm(2.48”)、75mm(2.95”)、90 mm (3.54”)、110 mm (4.33”)、125 mm (4.92”)、140 mm (5.51”)、160 mm (6.30”)

Docking deviation≤0.3mm

Power of Heater1.5KW/110V

Power of Milling Cutter1.1KW/110V

Working temperature0-280°c (The actual temperature will be affected by the environment) Temperature deviation±5°c

Environment temperature: -5°c-40°c

Time required to reach soldering temperature<20min

Materials can be weldedPE PP PB PVDF HDPE PVC

Product size(LxWxH)：560x295x370mm/22.05x11.61x14.57in

Packing volume: 630x400x420mm/24.80x15.75x16.54in

Packing List:

1x 160 four-ring rack

1x 160 cutter

1x 160 heating plate

4x 63-140 tiles

1x Tile screw

1x Screwdriver

1x Wrench

1x Manual
