Specification
Brand : LGXEnzhuo
BulletPoint1 : 【PARAMETER】Model No.:2.48"-7.87" (63-200mm) 4 rings manual; Welding level(Φ, mm)outer dia: 63mm(2.48”)、75mm(2.95")、90 mm (3.54”)、110 mm (4.33”)、125 mm (4.92”)、140 mm (5.51”)、160 mm (6.30”)、180 mm (7.09”)、200mm(7.87”); Voltage: 110V; Power of Heater: 2.5KW; Power of Milling Cutter:1.1KW; Docking deviation: ≤0.3mm; Time required to reach soldering temperature:<20min; Materials can be welded:PE PP PB PVDF
BulletPoint2 : 【WIDE APPLIACTION】Manually Operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory
BulletPoint3 : 【HIGH QUALITY】Temperature Range:300°C; Temperature deviation:±5°C; Environment temperature:-5……40°C; The heating plate adopts an independent temperature control system and is coated with PTFE;The main part of the frame is made of aluminum alloy material, which is simple in structure, compact and easy to use
BulletPoint4 : 【EASY TO USE】Electric milling method is adopted, with single and double-sided milling functions; the milling inserts are made of high-quality tool steel, double-edged design, and can be used on both sides
BulletPoint5 : 【FEATURES】Features of manual hot melt butt welding machine: It consists of four parts: frame, milling cutter, independent heating plate, milling cutter and heating plate bracket
Color : Silver Tone
ExternallyAssignedProductIdentifier1 : 0785869974258
ExternallyAssignedProductIdentifier2 : 785869974258

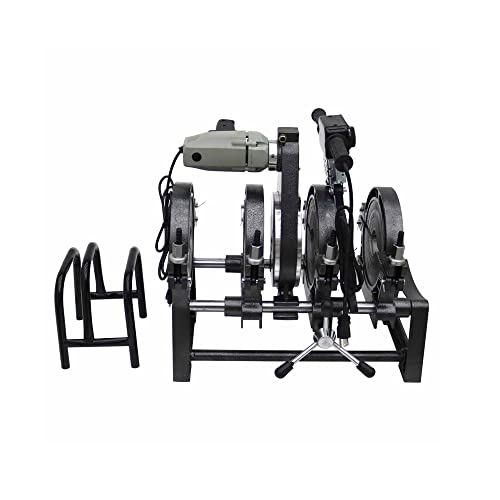

ItemName : LGXEnzhuo Manual 4 Clamps Pipe Fusion Welder PE PP PB PVDF Pipe Hot Melt Machine Manually Operated HDPE Butt Fusion Welding Machine 110V 63-200mm
ItemPackageDimensions_Height : 1.97 inches
ItemPackageDimensions_Length : 9.45 inches
ItemPackageDimensions_Width : 5.12 inches
ItemPackageQuantity : 1200
ItemTypeKeyword : power-welders
Manufacturer : LGXEnzhuo
Material : Stainless Steel
NumberOfPieces : 1200
PartNumber : E145021
ProductDescription : Instruction for Use
1. The whole equipment should be placed on a stable and dry plane to operate.
2. Before operation make sure the following things:
◆ The machine is in good conditions
◆ The power complies with the requirements according to the butt fusion machine
◆ Power line is not broken or worn
◆ All instruments are normal
◆ The blades of planning tool are sharp
3. Install appropriate inserts to frame according to the outside diameter of pipes/fittings.
4. According to the requirements of fitting and welding process, set the temperature in temperature controller and set time in timer. (See section 7 this manual).
5. Welding Steps
Before welding, firstly, check if the material and its pressure grade are the required ones.Secondly check if there are scratches or fissures on the surface of pipes/fittings. If the depth of scratches or fissures exceeds 10% of the wall thickness, cut the section of scratches or fissures. Clean the pipe end’s surfaces with clean cloth to keep the pipe’s ends clean.
6. Clamping
Place the pipes/fittings in inserts of frame and keep the ends to be welded be the same length(no effect on the planning and heating of the pipe). The pipe out of the basic frame should be supported to the same central axial of clamps. Fasten the screws of clamps to fix the pipes/fittings.
8. Heating
Clear the dust or slit on the surface of heating plate (Caution: Don’t damage PTFE layer on the surface of heating plate.), and make sure the temperature has reached the required one.Put the heating plate between the pipe ends after it reaches required temperature. Close the pipes/fittings ends by operating direction valve and raise the pressure to specified pressure by swinging pressure regulation valve till the bead reaches specified height.Turn swing check valve anti-clockwise to reduce the pressure (not more than drag pressure)and turn swing check valve in clockwise direction to the end.
ProductSiteLaunchDate : 2022-08-24T08:30:45.303Z
Size : 0.61" x 0.53" x 0.31"
Style : Manual 4 Clamps
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
