Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : LGXEnzhuo
BulletPoint1 : 【PARAMETER】Model No.:3.54"-9.84" (90-250mm) two rings manual; Welding level(Φ, mm)outer dia:90mm(3.54''),110mm(4.33''),125(4.92'')140(5.51''),160mm(6.30''), 180(7.09''),200mm(7.87''),225mm(8.86''),250mm(9.84''); Voltage: 110V; Power of Heater: 1.8KW; Power of Milling Cutter:0.83 KW; Docking deviation: ≤0.3mm; Time required to reach soldering temperature:<20min; Materials can be welded:PE PP PB PVDF
BulletPoint2 : 【HIGH QUALITY】Temperature Range:0-300°C; Temperature deviation:±5°C; Environment temperature:-5……40°C; The heating plate adopts an independent temperature control system and is coated with PTFE;The main part of the frame is made of aluminum alloy material, which is simple in structure, compact and easy to use
BulletPoint3 : 【EASY TO USE】Electric milling method is adopted, with single and double-sided milling functions; the milling inserts are made of high-quality tool steel, double-edged design, and can be used on both sides
BulletPoint4 : 【FEATURES】Features of manual hot melt butt welding machine: It consists of four parts: frame, milling cutter, independent heating plate, milling cutter and heating plate bracket.Please note that the color of this machine is delivered randomly, and the color actually received shall prevail.
BulletPoint5 : 【WIDE APPLIACTION】Manually Operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory
Color : Black
ExternallyAssignedProductIdentifier : 8500177194158
ExternallyAssignedProductIdentifier1 : 0785869974272
ExternallyAssignedProductIdentifier2 : 785869974272
FinishType : Chrome
Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : CN_SmallLithiumIonBatteryInEquipment
Hazmat11 : DE_SmallLithiumIonBatteryInEquipment
Hazmat12 : EG_SmallLithiumIonBatteryInEquipment
Hazmat13 : ES_SmallLithiumIonBatteryInEquipment
Hazmat14 : FR_SmallLithiumIonBatteryInEquipment
Hazmat15 : GB_SmallLithiumIonBatteryInEquipment
Hazmat16 : IN_SmallLithiumIonBatteryInEquipment
Hazmat17 : IT_SmallLithiumIonBatteryInEquipment
Hazmat18 : JP_SmallLithiumIonBatteryInEquipment
Hazmat19 : MX_SmallLithiumIonBatteryInEquipment
Hazmat2 : UN3481
Hazmat20 : NL_SmallLithiumIonBatteryInEquipment
Hazmat21 : PL_SmallLithiumIonBatteryInEquipment
Hazmat22 : SA_SmallLithiumIonBatteryInEquipment
Hazmat23 : SE_SmallLithiumIonBatteryInEquipment
Hazmat24 : SG_SmallLithiumIonBatteryInEquipment
Hazmat25 : TR_SmallLithiumIonBatteryInEquipment
Hazmat26 : US_SmallLithiumIonBatteryInEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryInEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryInEquipment
Hazmat6 : AU_SmallLithiumIonBatteryInEquipment
Hazmat7 : BE_SmallLithiumIonBatteryInEquipment
Hazmat8 : BR_SmallLithiumIonBatteryInEquipment
Hazmat9 : CA_SmallLithiumIonBatteryInEquipment
IncludedComponents : FS37 Fusion splicer (1pc)

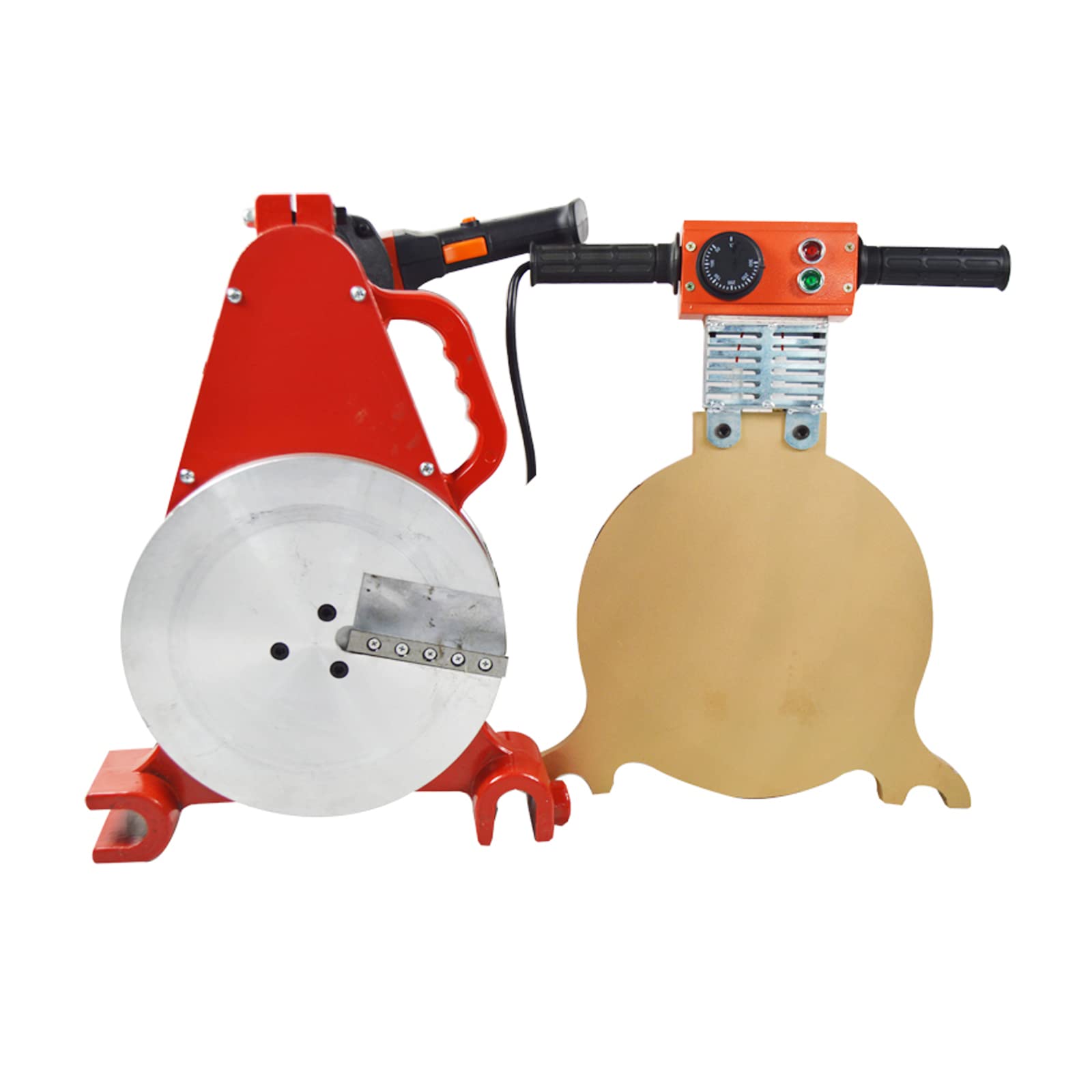

ItemName : LGXEnzhuo Manual 2 Clamps Pipe Fusion Welder HDPE Butt Fusion Welding Machine PE PP PB PVDF Pipe Hot Melt Machine 110V 90-250m
ItemPackageDimensions_Height : 36.83 centimeters
ItemPackageDimensions_Length : 20.32 centimeters
ItemPackageDimensions_Width : 27.94 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-welders
Manufacturer : LGXEnzhuo
Material : Aluminum+ABS
ModelName : FS37
ModelNumber : FS37
NumberOfBoxes : 1
NumberOfLithiumIonCells : 1
PartNumber : E145011
PowerSourceType : ac
ProductDescription : Instruction for Use
1. The whole equipment should be placed on a stable and dry plane to operate.
2. Before operation make sure the following things:
◆ The machine is in good conditions
◆ The power complies with the requirements according to the butt fusion machine
◆ Power line is not broken or worn
◆ All instruments are normal
◆ The blades of planning tool are sharp
3. Install appropriate inserts to frame according to the outside diameter of pipes/fittings.
4. According to the requirements of fitting and welding process, set the temperature in temperature controller and set time in timer. (See section 7 this manual).
5. Welding Steps
Before welding, firstly, check if the material and its pressure grade are the required ones.Secondly check if there are scratches or fissures on the surface of pipes/fittings. If the depth of scratches or fissures exceeds 10% of the wall thickness, cut the section of scratches or fissures. Clean the pipe end’s surfaces with clean cloth to keep the pipe’s ends clean.
6. Clamping
Place the pipes/fittings in inserts of frame and keep the ends to be welded be the same length(no effect on the planning and heating of the pipe). The pipe out of the basic frame should be supported to the same central axial of clamps. Fasten the screws of clamps to fix the pipes/fittings.
11. Heating
Clear the dust or slit on the surface of heating plate (Caution: Don’t damage PTFE layer on the surface of heating plate.), and make sure the temperature has reached the required one.Put the heating plate between the pipe ends after it reaches required temperature. Close the pipes/fittings ends by operating direction valve and raise the pressure to specified pressure by swinging pressure regulation valve till the bead reaches specified height.Turn swing check valve anti-clockwise to reduce the pressure (not more than drag pressure)and turn swing check valve in clockwise direction to the end.
ProductSiteLaunchDate : 2022-08-24T08:30:45.303Z
Size : 2 Inch
SpecificUsesForProduct : thermoplastic pipe welder hdpe ppr
Style : Manual 2 Clamps
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
Voltage : 110 volts
