Specification
Brand : Apache
BulletPoint1 : Oils, grease, acids, and many chemicals
BulletPoint2 : Rolls up flat for easy storage
BulletPoint3 : Male x female aluminum short shanks reinforced by Band-It clamps
BulletPoint4 : Tube/cover are PVC, reinforced with 3 ply polyester yarns, one longitudinal ply and two spiral plies
BulletPoint5 : Both tube/cover are extruded simultaneously to obtain maximum bonding
BulletPoint6 : [HIGH DENSITY]. Once-molded by extruder plastic, maximum bonding, non water-absorbing, no leak, strong, light weight, prevents tear and twist, higher pressure resistance, resists to oils, grease, acids, and chemicals.
BulletPoint7 : [MULTIPURPOSE]. Ideal for draining swimming pools, backwash pool filter, sewage pump, sump pump, trash pump, pool drain and sand filter pumps etc; widely used in household, mine, factory, agriculture, and architectural engineering;This drain hose can adapt to most outdoor conditions and all seasons.
Color : Blue
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 725559146596
ExternallyAssignedProductIdentifier2 : 0725559146596
ExternallyAssignedProductIdentifier3 : 00725559146596
GpsrSafetyAttestation : 1

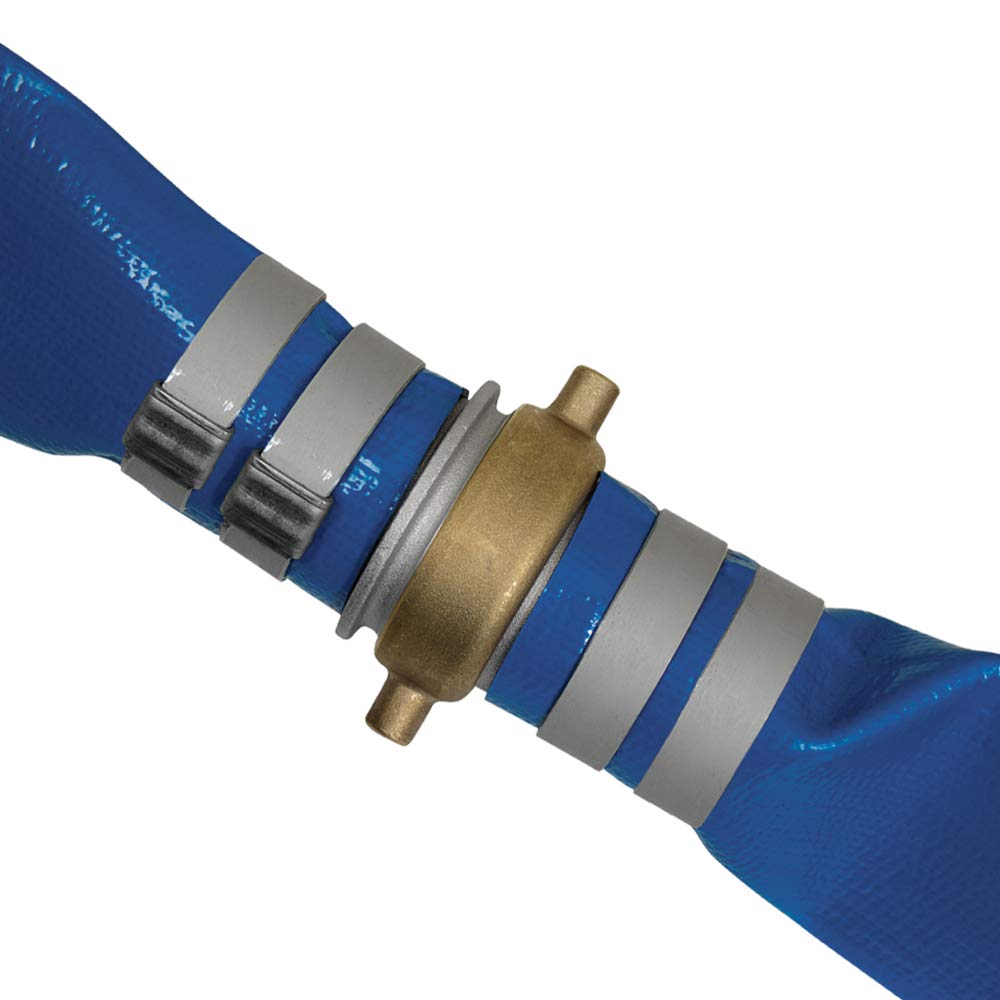

IncludedComponents : Apache 98138065 3" x 50' Blue PVC Lay-Flat Discharge Hose with Aluminum Pin Lug Fittings
ItemDisplayWeight : 22 pounds
ItemLength : 50 feet
ItemName : Apache 98138065 3" x 50' Blue PVC Lay-Flat Discharge Hose with Aluminum Pin Lug Fittings
ItemPackageDimensions_Height : 34.29 centimeters
ItemPackageDimensions_Length : 19.05 centimeters
ItemPackageDimensions_Width : 33.02 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : water-hoses
Manufacturer : Apache
Material : Pvc
Material1 : Aluminum
Material2 : Nylon
Material3 : Plastic
MaximumPressure : 55 pounds_per_square_inch
ModelName : 3" x 50' Blue PVC Lay-Flat Discharge Hose with Aluminum Pin Lug Fittings
ModelNumber : 98138065
NominalWallThickness : 1.3 month
NumberOfItems : 1
PackageLevel : unit
PartNumber : 98138065
ProductDescription :

2 inch × 100 ft Blue Heavy Duty PVC Lay Flat Water Pump Discharge Hose Assembly with Aluminum Camlock C & E Fittings, Camlock Type F Included

Specification:

Hose Size: 2 inch, 3.4 inch wide;

Male Cam lock Coupling - Aluminum 2 inch Type "E" Shank ;

Female Cam lock Coupling - Aluminum and brass 2 inch Type "C" Shank ;

Aluminum 2 inch Type "F" : 2" Male Adpater x 2" NPT Male threaded;

Hose Length: 100 feet;

Color: blue;

Max Working Pressure : 90 psi;

Temperature range: 23°F to 149°F (-5°C to 65°C) .

Feature:

Install to threaded type connection by adapter cam lock A, F, D or B,

Easy to operate, efficient, save time and energy.

heavy duty, super sturdy, relatively light weight.

Formulated with UV protectors, able to withstand outdoor conditions.

Use in all seasons, easy to storage and takes hardly any space.

Applications:

For swimming pool backwash, draining piping systems.

For sewage pump, sump pump, trash pump and sand filter pumps etc.

For open ended discharge applications

For agriculture irrigation and landscaping.

For construction dewatering and submersible pumping.

How to choose a discharge hose assembly for a water pump?

1. If your pump outlet is a Male camlock adapter,

You can directly select "camlock C&E" and use the C-type connector to connect the backwash hose to the pump.

2. If your pump outlet is an NPT male threaded connection,

You need to choose a "camlock C&E" connector combination with an A-type connector (one end is NPT female thread), rotate and screw the A-type connector onto the pump outlet (NPT male thread), and then use the C-type connector of the backwash hose to connect to the pump.

3. If your pump outlet is an NPT female threaded connection,

You need to choose a combination of "camlock C&E" connectors with an F-type connector (one end is NPT male thread), rotate and screw the F-type connector into the pump outlet (NPT female thread), and then use the C-type connector of the backwash hose to connect to the pump.

How does the connection work?

From the hose ends quick release type couplings to a threaded type connection, you need a right Adaptor  to screw onto pool’s discharge pipe end or pump outlet, such as camlock coupling type “A”, “F”.

Type A:

Male groove adapter end for connecting to female cam coupler (type C),

Female NPT threaded end for connecting to an NPT male threaded connection (male thread pump outlet or pipe).

Type F:

Male groove adapter end for connecting to female cam coupler (type C),

Male NPT threaded end for connecting to an NPT female threaded connection (female thread pump outlet or pipe).

Type E:

Male camlock adapter end for connecting to female cam coupler (type C),

Female hose shank side slide into hose, fixed directly with clamps.

Easy Installation:

To make a connection, simply slide the male adapter (type A, F or E) into the female coupler (type C) and with normal hand pressure, press the brass cam levers down, remain locked when engaged to help prevent disconnects.

Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

The adaptor can be kept on the pump outlet or on the pipe for convenient next use.

Notice:

Please check pump outlet or PVC pipe sizes before ordering.

Please select the right adapter according to the instructions above.

You can buy the adapter with the hose, or the hardware store can also help you.

Not good for drinking water.

Service:

If you have any questions or received a damaged or used products, do not hesitate to contact us, we will provide solutions within 24 hours.

ProductSiteLaunchDate : 2007-06-11T00:00:00-00:00
Size : 3" x 50'
StreetDate : 2016-02-01T00:00:01Z
Style : Pin Lug Fitting (Aluminum)
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 40142000
