Specification
AccessLocation : Bottom
Brand : DiTFATOP
BulletPoint1 : CW-5200DHTY Specification: Voltage: AC 1P 110V, 60Hz; Current: 0.5~8.9A ; Machine Power 0.77kW; Compressor power: 0.66kW 0.9HP; Nominal cooling capacity: 5699Btu/h; 1.67kW; 1435Kcal/h; Refrigerant: R-410a; Refrigerant charge: 330g; Precision: ±0.3℃; Tank Capacity: 6 L; Reducer: Capillary; Max. flow: 13 L/min; Inlet and Outlet: OD 10mm barbed connector
BulletPoint2 : Application: S&A CW-6000DN industrial water chiller is designed for cooling the lser tube under 150W, 130W CO2 Engravr or CNC Spindle machine. For water Cooling and the temperature can be adjusted precisely.
BulletPoint3 : It can control the water temperature, precision is ±0.3℃, which provide stable working conditions for laser devices.
BulletPoint4 : Multiple alarm protection: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm. CW-5200 water chiller has unique low flow alarm protection function, which ensures the cooling water cycle working safely.
BulletPoint5 : 1. Machine Size: 22.8" x 11.4" x 18.5", 52.9lb; Package: 25.6" x 14.2" x 20.1" , 60lb. 2. CE ,RoHS approval; 3. Cooling water additive is forbidden by express company, so we could not put it into the package. You can buy it from local. 4. We provide industrial machines and supplies with professional support team, if any questions, kindly contact and we will respond within 24 hours.
Capacity : 102 ounces
Capacity1 : 5 gallons
Capacity2 : 5 liters
Color : White
Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : CN_SmallLithiumIonBatteryInEquipment
Hazmat11 : DE_SmallLithiumIonBatteryInEquipment
Hazmat12 : EG_SmallLithiumIonBatteryInEquipment
Hazmat13 : ES_SmallLithiumIonBatteryInEquipment
Hazmat14 : FR_SmallLithiumIonBatteryInEquipment
Hazmat15 : GB_SmallLithiumIonBatteryInEquipment
Hazmat16 : IN_SmallLithiumIonBatteryInEquipment
Hazmat17 : IT_SmallLithiumIonBatteryInEquipment
Hazmat18 : JP_SmallLithiumIonBatteryInEquipment
Hazmat19 : MX_SmallLithiumIonBatteryInEquipment
Hazmat2 : UN3481
Hazmat20 : NL_SmallLithiumIonBatteryInEquipment
Hazmat21 : PL_SmallLithiumIonBatteryInEquipment
Hazmat22 : SA_SmallLithiumIonBatteryInEquipment
Hazmat23 : SE_SmallLithiumIonBatteryInEquipment
Hazmat24 : SG_SmallLithiumIonBatteryInEquipment
Hazmat25 : TR_SmallLithiumIonBatteryInEquipment
Hazmat26 : US_SmallLithiumIonBatteryInEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryInEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryInEquipment
Hazmat6 : AU_SmallLithiumIonBatteryInEquipment
Hazmat7 : BE_SmallLithiumIonBatteryInEquipment
Hazmat8 : BR_SmallLithiumIonBatteryInEquipment
Hazmat9 : CA_SmallLithiumIonBatteryInEquipment
InstallationType : Countertop
InstallationType1 : Countertop
InstallationType2 : Freestanding
ItemDisplayWeight : 53 pounds

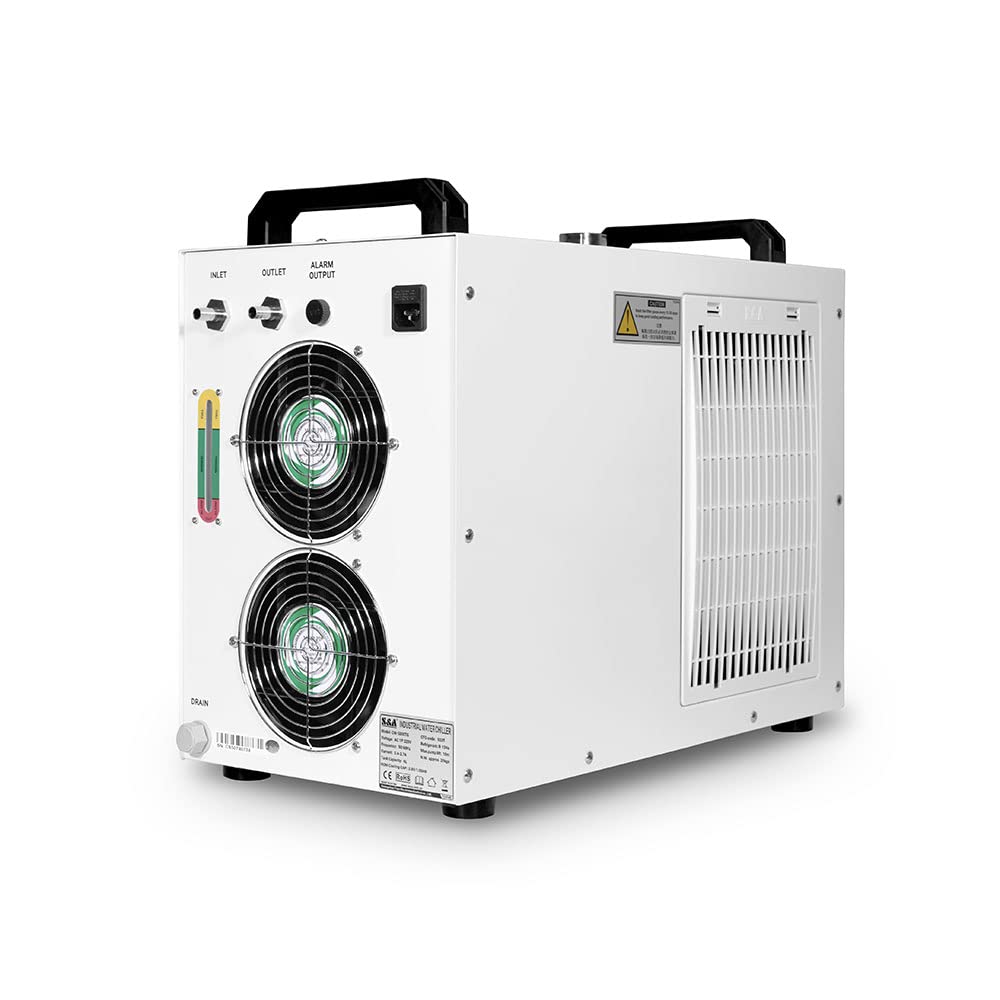

ItemName : DiTFATOP S&A 5200DH Industrial Water Chiller 110V for Cooling 130W CO2 CNC Spindle Machine, Water Cooling, AC 1P 110V 60Hz
ItemPackageDimensions_Height : 20.1 inches
ItemPackageDimensions_Length : 25.6 inches
ItemPackageDimensions_Width : 14.2 inches
ItemPackageQuantity : 1
ItemTypeKeyword : water-coolers
LowerTemperatureRating : 59 degrees_fahrenheit
Manufacturer : CAGSigns
Material : Plastic
Material1 : Acrylonitrile Butadiene Styrene (ABS)
Material2 : Sta
Material3 : HIPS
Material4 : Silicone
ModelName : CW-5200DHTY
ModelNumber : LUS21643
NumberOfItems : 1
NumberOfSettings : 1
PartNumber : LUS21643
PowerSourceType : Battery Powered
ProductDescription : CAUTIONS
We are authorized as "S&A" brand name product agent.
All of S&A water chillers are certified with design patent. Counterfeiting is not allowed, Please recognize S&A logo when you purchase S&A water chillers.
Intro
CW-5200DH industrial water chillers have been popular for over 16 years with the annual output of 30,000 units.It is designed for cooling the one CO2 glass laser tube under 150W of the laser engraving and cutting machine. (Its emitting rate is higher than 60%.)
Cooling capacity is 1400W.
Economic cooling equipment, easy to install and operate, compact and easily movable.

Specification
Voltage AC 1P 110V
Frequency 60Hz
Current 0.5~8.9A
Machine Power 0.77KW
Max. power consumption 1.51kW
Compressor power 0.66kW; 0.9HP
Nominal cooling capacity 5699Btu/h; 1.67kW; 1435Kcal/h
Refrigerant charge 330g
Pump power 0.05kW
pump pressure 1.2bar
Pump flow 13L/min
Refrigerant R-410a
Precision ±0.3℃
Reducer Capillary
Tank capacity 6 L
Inlet and outlet OD 10mm barbed connector
Dimension 58 x 29 x 47cm(22.8" x 11.4" x 18.5")
N.W 24Kgs(52.9lb)
G.W 27Kgs(60lb)

Features
suitable for cooling the lser tube under 150W, and the temperature can be adjusted precisely. It can extend the using life of lser tube and ensure the engraving effect better.
With completed water flow and over high temperature alarm functions.
Temperature precision is ±0.3℃, which provide stable working conditions for laser devices.
Multiple alarm function: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.
This series of water chillers adopt intelligent controller, which need not adjust the control parameters under normal.
circumstances, it will automatically adjust control parameters according to room temperature changes, to meet the cooling requirement.
CW-5200 water chiller has unique low flow alarm protection function, which ensures the cooling water cycle working safely.
Specific disconnection alarm securing protection.
Enclosed water tanks, water used for a long time.
Equipped with alarm output port, can quickly protect sensitive components.
High cost performance, low failure rate.
Multiple power specifications; CE approval; REACH approval; RoHS approval.

ProductSiteLaunchDate : 2023-08-24T07:00:00.000Z
RegulatoryComplianceCertification : Q-22-005
Size : 13.38in
Style : Top Load
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 48101700
UpperTemperatureRating : 194 degrees_fahrenheit
Wattage : 4 watts
