Specification
Brand : TransData
BulletPoint1 : 1 Element, Single phase Watts VARS self powered Common Ground Outputs [(2) 7-Pin Terminals]
BulletPoint10 : Capacity Max:0-500V AC (Customerized,contact operator if you need other input ranges,e.g.0-75mV or 0-300V)
BulletPoint11 : Impulse Voltage:5KV(peak value),1.2/50uS
BulletPoint12 : Response Time:=/< 300mS
BulletPoint13 : Default Frequency:40-60Hz(contact us,if you specially need different frequency,e.g. 100Hz)
BulletPoint14 : Load Capacity: 2 times current continuous
BulletPoint15 : Isolation Withstanding Voltage:AC 2.0KV/min*1mA between input/output/power
BulletPoint16 : Feature:Voltage Terminal Insert,standard din rail(35mm)mounting or pannel mounting
BulletPoint17 : Storage Temperature:-40 to 70 degrees Centigrade,20% to 95% without condensation
BulletPoint2 : Accuracy 0.25% of rated output
BulletPoint3 : +/-1mA output is standard, consult factory for all others
BulletPoint4 : 5 Year Warranty/Huge in stock inventory
BulletPoint5 : Retrofit replacement for Scientific Columbus XLWV5C5A4
BulletPoint6 : Working Stability: annual change < 0.2%
BulletPoint7 : Power Consumption:1.0 VA or less
BulletPoint8 : Working Environment:-10 to 50 degrees Centigrade,20% to 90% without condensation
BulletPoint9 : Isolation Resistance:>/=20M Ohm(DC514V)
ExternallyAssignedProductIdentifier : 6933076218489
ExternallyAssignedProductIdentifier1 : 0753807344425
ExternallyAssignedProductIdentifier2 : 753807344425
ItemName : TransData 10EWRS550 Watt/VAR 1 Element +/-1mA Output Transducer 500 Fullscale Calibrating Watts VARS with Calibration Certificate
ItemPackageDimensions_Height : 2.81 inches
ItemPackageDimensions_Length : 5.43 inches
ItemPackageDimensions_Width : 3.15 inches
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-transducers
Manufacturer : TransData
Material : cold_rolled_steel
MaximumFrequency : 60 hertz
MinimumFrequency : 40 hertz
ModelNumber : AO-98073-48
NumberOfItems : 1
PartNumber : 10EWRS550

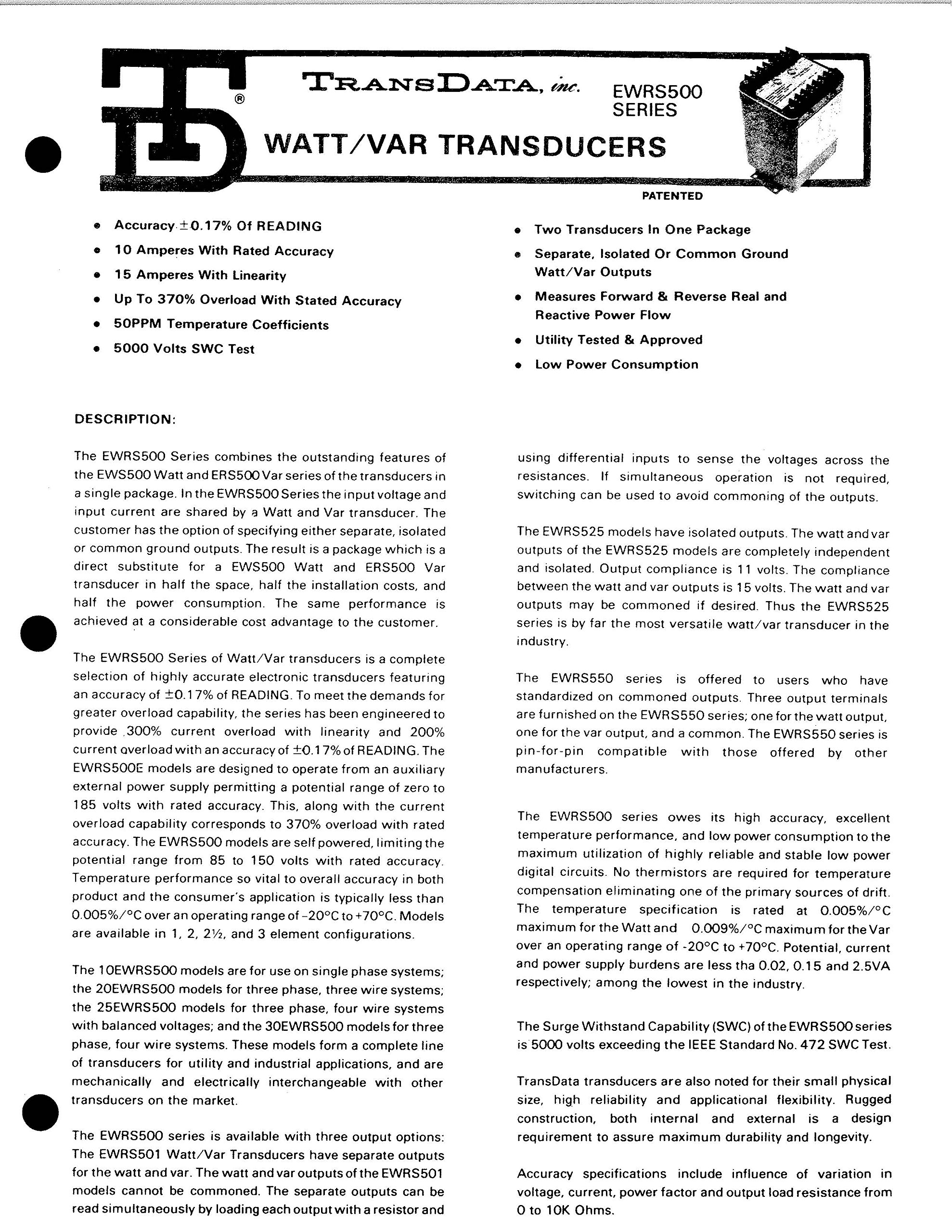

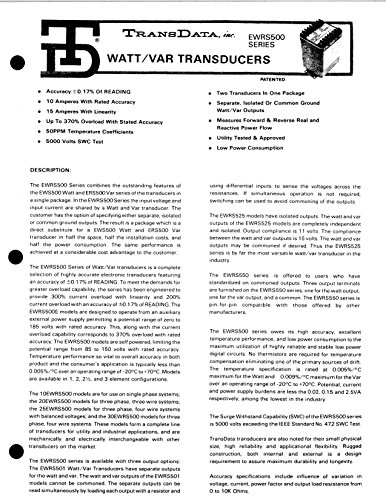

ProductDescription : The EWRS500 Series combines the features of both a Watt and VAR transducer in a single package. The input voltage and current are shared by the Watt and VAR transducer, with an option of specifying separate, isolated or common ground outputs. The result is a package that replaces both a Watt and VAR transducer in half the space, half the installation cost, and half the power consumption. TransData provides high accuracy, electric utility grade transducers sold at over 2000 utilities worldwide. Contact TransData for a wide variety of additional models with available external power and output options.
ProductSiteLaunchDate : 2014-12-18T08:00:00.000Z
StreetDate : 2017-03-14T00:00:01Z
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 1
UnspscCode : 41000000
