Specification
Brand : Taidacent
BulletPoint1 : duty cycle to 0-5v 0-10v linear conversion transmitter
BulletPoint2 : working voltage: 9V ~ 17V
BulletPoint3 : Input voltage: 0.00V ~ 5.00V
BulletPoint4 : the output voltage: 0.00V ~ 5.00V
BulletPoint5 : control mode: signal isolation
Color : Black
ExternallyAssignedProductIdentifier1 : 0681413647589
ExternallyAssignedProductIdentifier2 : 681413647589

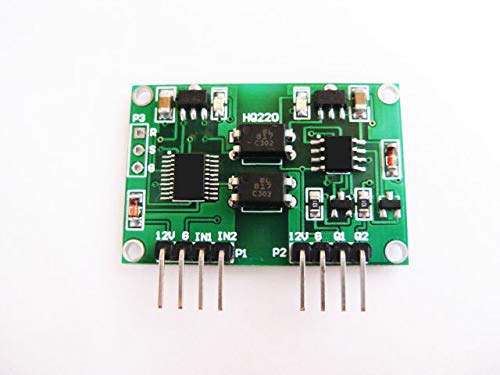

ItemName : Taidacent Two Channels Voltage Signal Isolation Module 0-5v Linear Conversion Transmitter Module
ItemPackageDimensions_Height : 7.62 centimeters
ItemPackageDimensions_Length : 1.27 centimeters
ItemPackageDimensions_Width : 5.08 centimeters
ItemTypeKeyword : voltage-testers
Manufacturer : Taida
Material : ABS
ModelNumber : HQ220
PartNumber : HQ220
ProductDescription : 1, Working voltage: 9V ~ 17V
2. Input voltage: 0.00V ~ 5.00V
3, Output voltage: 0.00V ~ 5.00V
4, Control mode: signal isolation
5, Size: (length) 38mm * (width) 25mm * (height) 10mm
6, Drive mode: no need to drive.
7, Scope of application: voltage signal isolation;

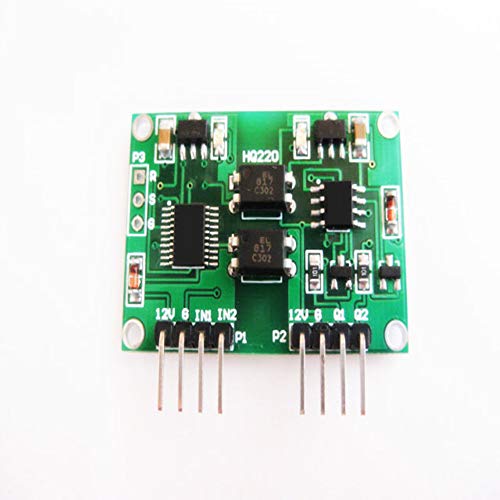

8, Way of Connection
Interface P1:
12V: Power supply 1 positive interface (9V ~ 17V).
GA: Power 1 ground interface.
IN1: Signal channel 1 input interface (0.00V ~ 5.00V).
IN2: Signal channel 2 input interface (0.00V ~ 5.00V).

。nterface P2:
12V: Power supply 2 positive interface (9V ~ 17V).
GB: Power 2 ground interface.
Q1: Signal channel 1 output interface (0.00V ~ 5.00V).
Q2: Signal channel 2 output interface (0.00V ~ 5.00V).
ProductSiteLaunchDate : 2018-11-20T08:00:00.000Z
Size : 7mm,40pcs
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 32101600
