Specification
Brand : Moncer
BulletPoint : USB tester (UT70) integrates 5 measuring interfaces (Type-C, USB-A, Micro-USB full coverage), adopts 0.96 inch HD IPS screen, dedicated 16-bit ADC chip, dedicated PD protocol physical chip, real-time monitoring of voltage, current, power, electricity, capacity, waveform curve, fast charge protocol, etc
BulletPoint1 : 【Pulse Output Options】 Standard passive pulse output options for seamless integration with various amr systems
BulletPoint2 : 【Compatibility】 Conforms to iec 62053-31 and din43864 standards, ensuring reliable energy tracking
BulletPoint3 : 【Accurate Display】 Features a 5+1 digital display showing precise energy consumption readings up to 999991kwh
BulletPoint4 : 【Versatile Mounting】 35Mm standard din-rail mounting compatible with din en50022 and din43880 standards
BulletPoint5 : 【Compact and Lightweight】 Small size and light weight design for easy installation and portability
Color : white
ExternallyAssignedProductIdentifier : 9465589417242
ExternallyAssignedProductIdentifier1 : 0717225381400
ExternallyAssignedProductIdentifier2 : 717225381400
IncludedComponents : 1 * Energy Meter

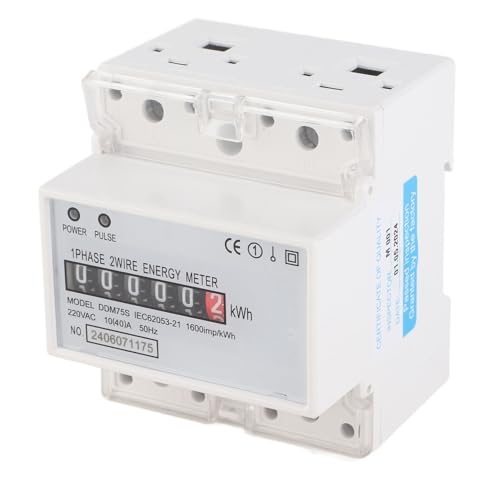

ItemName : Energy Meter, DDM75S Single Phase 4P LED Din Rail Energy Meter, Power Consumption Meter 10-40A KWh Meter with Passive Pulse Output
ItemPackageDimensions_Height : 8.1 centimeters
ItemPackageDimensions_Length : 9.5 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-testers
Manufacturer : Moncer
MaximumOperatingVoltage : 28 volts
MeasurementAccuracy : ±01%
MeasurementType : Ammeter
ModelName : Eujgoov0cqsfabh47
ModelNumber : Moncer9833
NumberOfItems : 1
PartNumber : Moncer DDM75S
PowerSourceType : Corded Electric
ProductDescription :

Features：
Small size, light weight, good reliability and easy installation. 35mm standard DIN-rail mounting in accordance with standard DIN EN50022.

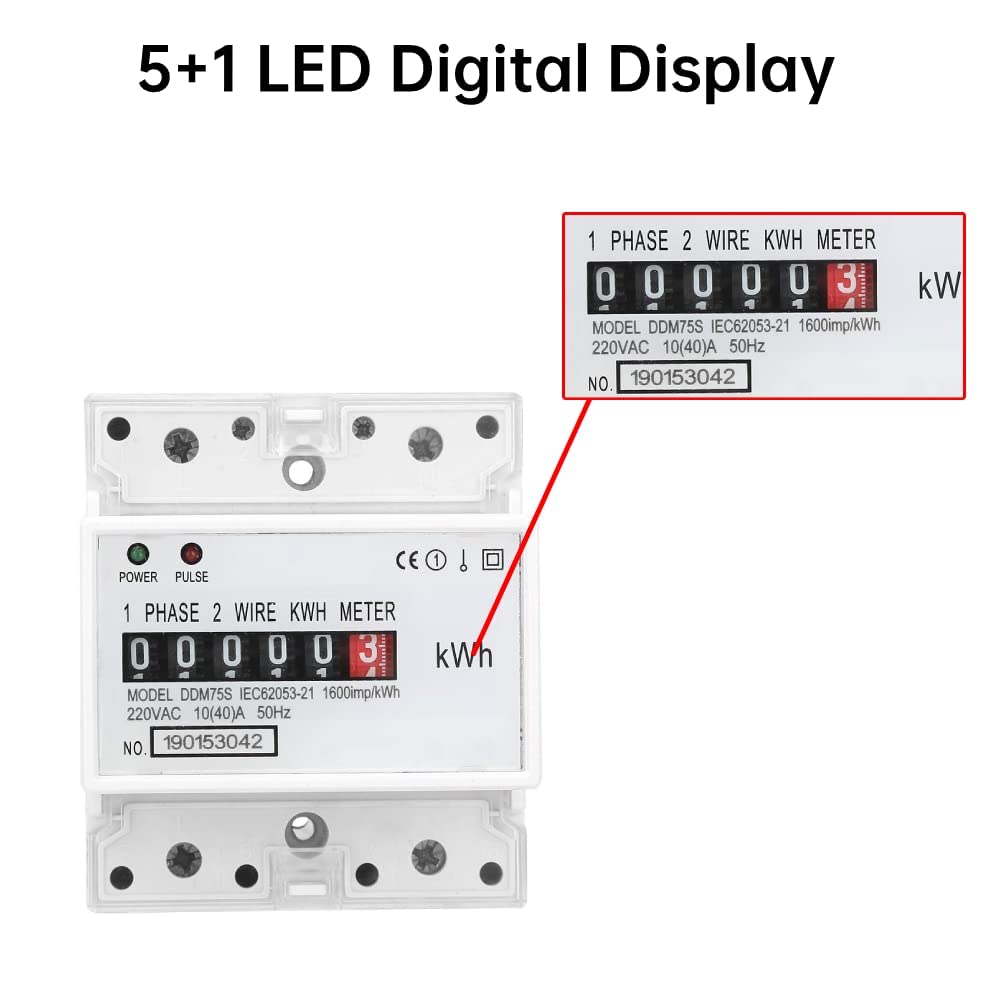

Six widths (12.5mm modulus) in accordance with DIN43880. Standard configuration 5+1(99999.1KWh) digital display.
The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
Double color LED indicates the power status (green) and the energy pulse signal (red).
One-way measurement of single-phase two - wire active energy consumption . This has nothing to do with the direction of the load current. Comply with IEC 62053-21.
Direct connection operation, two wiring methods. Standard configuration S type wiring, U type wiring can be selected.
Extend the terminal cover to protect the use of the security.

Specification：
Item Type: Din Rail Energy Meter
Model: DDM75S
Voltage Specification: 220V/230V 50/60Hz
Frequency: 50/60Hz
Current Specifications: 10(40)A
Insulation performance: AC voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KV
Display mode: (5+1) digital display
Installation method: rail installation
Weight: 246 g / 8.7 oz(approx.)

Package List：
1 * Energy Meter
ProductSiteLaunchDate : 2025-02-01T07:30:25.471Z
Size : One Size
SpecificationMet1 : CE
SpecificationMet2 : FCC
Style : modern DDM75S 10-40A Single Phase KWH Meter
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41113600
