Specification
Brand : DWEII
BulletPoint1 : ❃❃ Digital Voltage Measuring Instrument,Single Phase Energy Meter Electricity Usage Monitor,AC 40-300V,100A, Built-in CT Kwh Voltage Current Frequency Guide Rail Type Electric Meter- 2pack
BulletPoint2 : ❃❃Ac power meter voltage measuring range is AC 40-300V, current measuring range is 0-100A, active power range is 0-450000W, electric energy range is 0-99999kWh. Frequence:45.0Hz-65.0Hz,Power Factor:0.00-1.00PF
BulletPoint3 : ❃❃Applicable to the chemical industry, power plant, automation equipment, DOS system, electromechanical equipment and other places. and widely used in school, market, home, industry, laboratory, etc. Notes: This energy meter can be used to measure non-standard sine wave from inverter.
BulletPoint4 : ❃❃1. when power off, the electric energy data will be stored and memorized, when the power is reconnected, this watt meter will go on cumulating data. 2. Data reset for multiple measurement needs. Press the reset button for five seconds, the kwh usage meter will be reseted.
BulletPoint5 : ❃❃Colorful LCD HD display, 178° viewing without dead angle, with backlight function, this ac power meter single phase is clearly visible whatever day or night.
Color : External CT
ExternallyAssignedProductIdentifier1 : 687117729958
ExternallyAssignedProductIdentifier2 : 0687117729958
InputVoltage : 40 volts

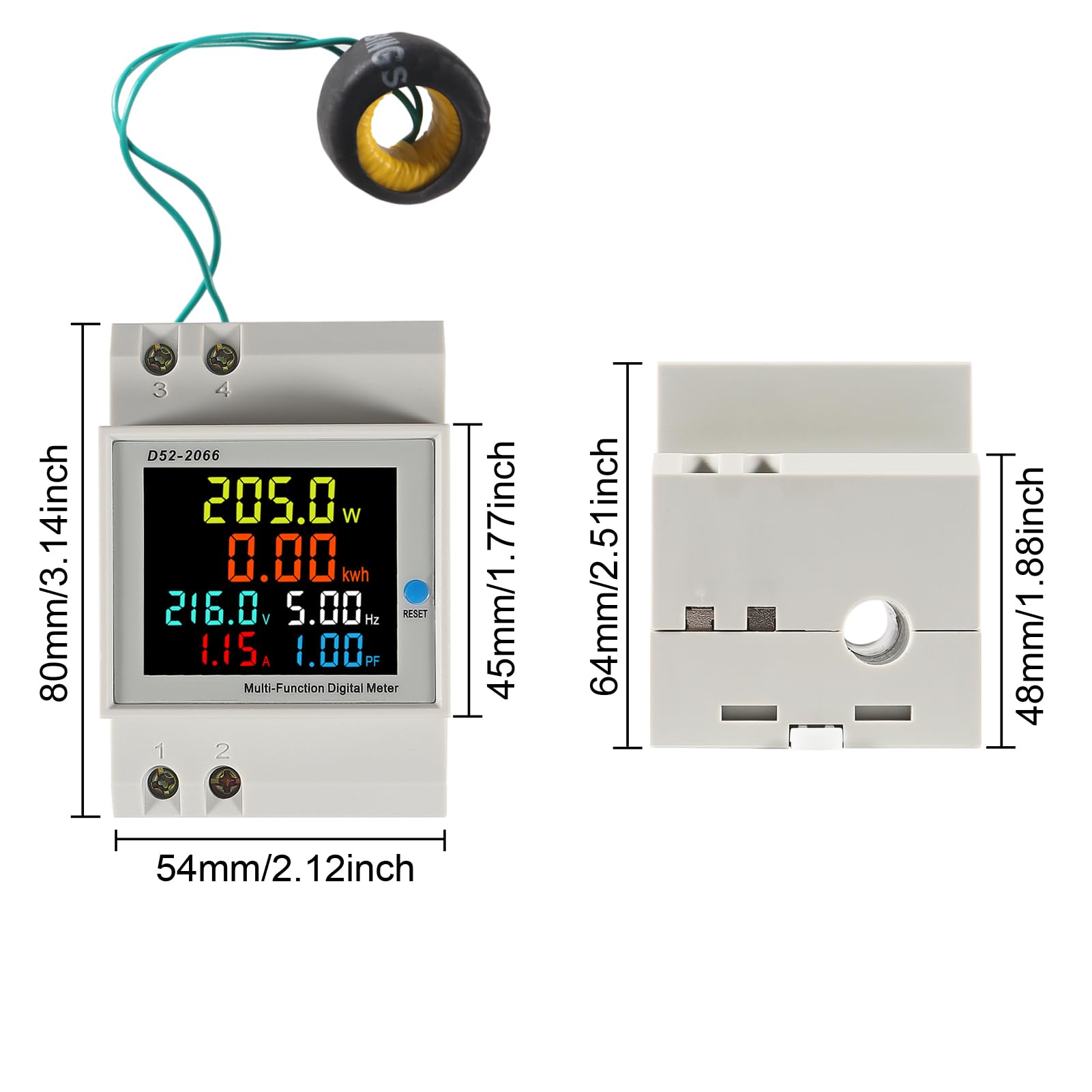

ItemName : DWEII 2Pack Single Phase Energy Meter Din Rail Electricity Usage Monitor AC 40-300V 100A Voltmeter Ammeter Watt Kwh Frequency Power Meter External CT 110V
ItemPackageDimensions_Height : 19.0246 centimeters
ItemPackageDimensions_Length : 6.5024 centimeters
ItemPackageDimensions_Width : 12.8016 centimeters
ItemTypeKeyword : voltage-testers
Manufacturer : DWEII
ModelNumber : D52-2066
NumberOfItems : 2
OutputVoltage : 300 volts
PartNumber : DW-0865
ProductDescription :

Specification:

Item Type: Watt‑Hour Meter

Model: D52-2066

Material: ABS

Measurement Accuracy: 1%±2 Words

Measuring Range: AC Voltage: AC40.0-300.0V, AC Current: AC0-100.0A

Current Display Resolution: 0.01A

Power Frequency: 45.0Hz-65.0Hz

Power Factor: 0.00-1.00PF

Measurement Speed: about 2 times per second

Installation Method: Rail Type

How to Use:

1. Connect the measured voltage to the 1 and 2 terminals on the bottom left of the meter.

2. The built‑in transformer is wired according to the wiring diagram in Figure 1, and the wire of the measurement loop is passed through the hole under the meter. The penetration direction of the wire is arbitrarily selected by the user according to the situation of use. Or penetrate from the circular hole on the top of the meter and come out from the bottom.

3. Connect the external transformer according to the wiring diagram in Figure 2, connect the 2 wires of the secondary end of the accurate current transformer with the meter to the 3 and 4 terminals on the upper left of the meter, and pass the wires of the measurement circuit through the mutual inductance.

4. The meter displays the measurement parameters after the power is turned on.

5. When it is necessary to reset the energy measurement (when measuring from 0), press and hold the button (RESET) on the right side of the instrument panel for 5 seconds (press and hold for 5 seconds) until the energy display is 0, release the button, At this time, the electrical energy is measured from 0.

Package List:

2 x Smart Watt-Hour Meter

2 x Manual
