Specification
Brand : Midzooparts
BulletPoint : DVB100 Digital display voltage comparator /0-100V voltage measurement / charge discharge / overvoltage under voltage overrun
BulletPoint1 : Standard industry packaging
BulletPoint2 : 5 VDC versions operate directly from dtl or TTL circuits
BulletPoint3 : Internal clamping Diode versions (d−suffix)
BulletPoint4 : Flame Retardant epoxy case is immersion resistant
BulletPoint5 : Can be used with Nte409 socket
Color : GRV8-03
CurrentRating : 2 amps
ExternallyAssignedProductIdentifier : 4653017428891
ExternallyAssignedProductIdentifier1 : 0079458990577
ExternallyAssignedProductIdentifier2 : 079458990577
ExternallyAssignedProductIdentifier3 : 00768249031772
FinishType : Finish
IncludedComponents : inc

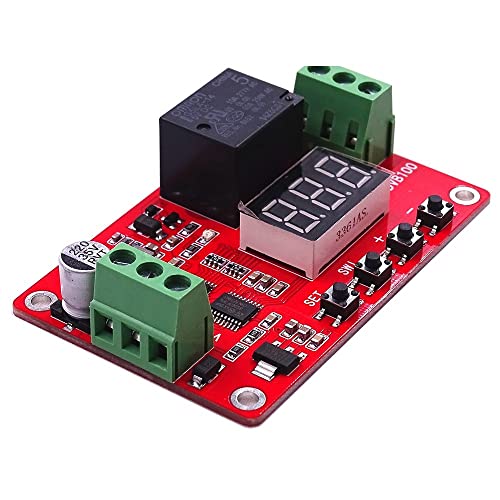

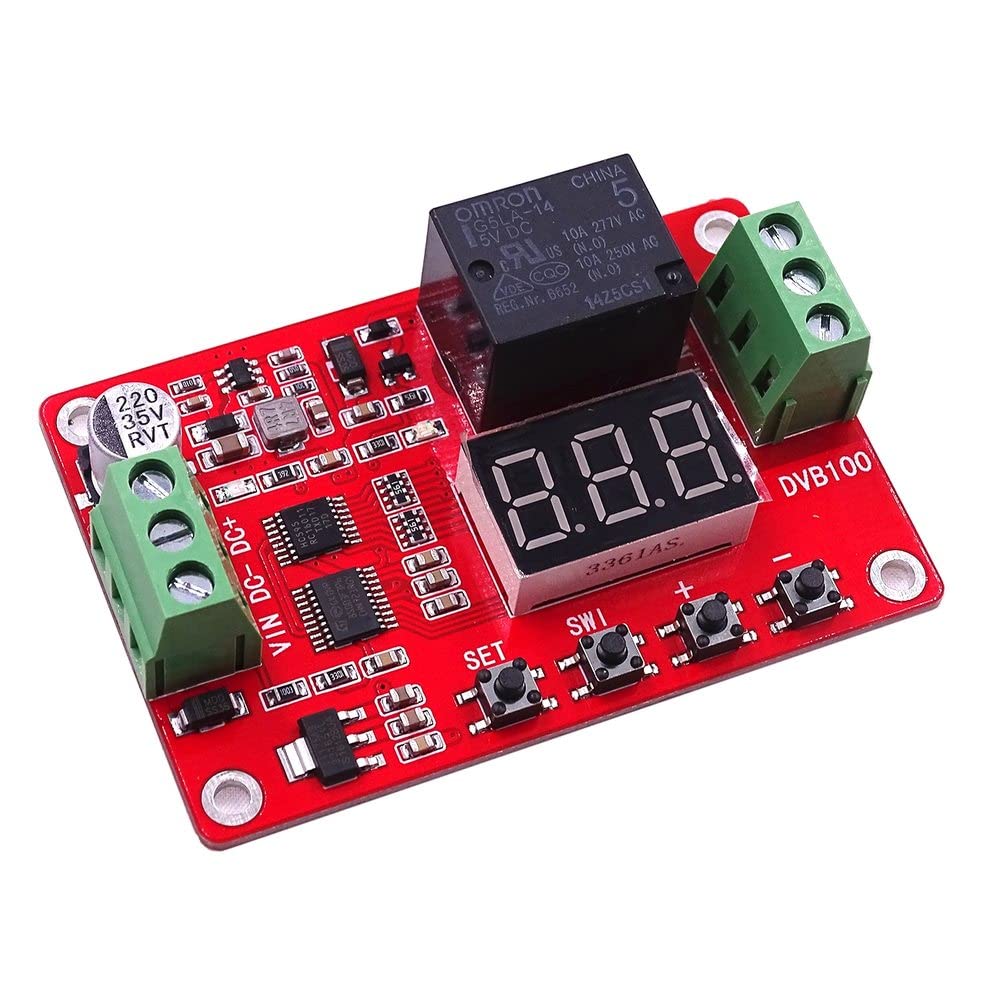

ItemName : DVB100 Digital Display Voltage Comparator /0-100V Voltage Measurement/Charge Discharge/overvoltage Under Voltage overrun
ItemPackageDimensions_Height : 0.762 centimeters
ItemPackageDimensions_Length : 15.24 centimeters
ItemPackageDimensions_Width : 3.048 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : Midzooparts
Material : copper
MaximumSwitchingCurrent : 2 amps
MaximumSwitchingVoltage : 5 volts
MeasurementSystem : Imperial
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelNumber : R57-2D.5-12D
MountingType : din_rail
NumberOfItems : 1
OperationMode : On-off
PartNumber : XHLModulepart_10212
PowerSourceType : Corded Electric
ProductDescription :
Descriptions:
Functional characteristics:
1. provide 5 functions for users to choose, to meet more application needs;
2., the user can set the voltage limit and voltage limit;
3. measuring range DC 0-100V, measuring accuracy + 0.1V;
4. module working voltage range DC8-32V;
5. increase the pull in delay and disconnect delay function;
6. all settings parameters can be automatically saved, the content of power loss is not lost;
7. using genuine OMRON relay, more stable and reliable;
8. redesigned power module, can ensure the stability of the module in a wide range of voltage.
Module function
Users can choose one of the following 5 functions, you can set and save the functional parameters, the parameter settings will be automatically saved after the completion of the loss of power is not lost.
Function 1:
Voltage measurement: select this function, the relay will not act, digital display current measuring voltage;
Function 2:
Charging monitoring: when the measurement voltage is lower than the lower limit voltage, the relay is pulled in, higher than the upper limit voltage, the relay is disconnected;
Function 3:
Discharge monitoring: when the measurement voltage is higher than the upper limit voltage, the relay is pulled in, lower than the lower limit voltage, the relay is disconnected;
Function 4:
Pull in interval: when the measuring voltage is between the upper limit and the lower limit, the relay is pulled in, and other conditions are disconnected;
Function 5:
Out of range pull in: when the measurement voltage is lower than the lower limit voltage, or the measurement voltage is higher than the upper limit voltage, the relay is pulled in; otherwise, the relay is disconnected.
Two operation instructions
Users can select the function mode by button and display, and other parameters can also be set. After all the parameter settings are finished, it can be automatically saved
ProductSiteLaunchDate : 2021-12-23T17:50:50.189Z
Size : AC127V-265V,3Phase4Wire
SpecificationMet : Din
SpecificationMet1 : CE
SpecificationMet2 : UL
Style : Digital
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 41113600
UpperTemperatureRating : 85 degrees_celsius
Voltage : 250 volts
Wattage : 500 watts
