Brand : DIYElectronic
BulletPoint : DC 12V Under-Voltage Protection Module for Battery Charge/Discharge Controller for 1pcs 0V-30V Battery Adjustable Relay Module
BulletPoint1 : Multi-Point Control Capability – Achieve precise and efficient multi-point control with impulse commands, making this relay ideal for industrial automation, lighting control, and home wiring systems.
BulletPoint2 : LED Status Indicators for Easy Monitoring – Equipped with green and red LED indicators to display power and relay output status at a glance, ensuring dependable operation and quick troubleshooting.
BulletPoint3 : Compact 18mm DIN Rail Design – Slim and space-saving design fits seamlessly into standard 35mm DIN rail mounting systems, appropriate for control panels with limited space.
BulletPoint4 : Sturdy and Long-Lasting Performance – Engineered for high reliability, offering 10 million mechanical cycles and 1 million electrical cycles under resistive load, ensuring long-term action.
BulletPoint5 : Wide Operating Range and Flexible Wiring – Designed to operate in temperatures from -20℃ to 55℃ and mount at altitudes up to 2000m, with robust wiring options for diverse installations.
Color : Grey
ConnectorType : Plug-In
CurrentRating : 16 amps
ExternallyAssignedProductIdentifier : 7361424100671
ExternallyAssignedProductIdentifier1 : 738603998607
ExternallyAssignedProductIdentifier2 : 0738603998607
IncludedComponents : inc
ItemName : DC 12V Under-Voltage Protection Module for Battery Charge/Discharge Controller for 1pcs 0V-30V Battery Adjustable Relay Module
ItemPackageDimensions_Height : 9.2964 centimeters
ItemPackageDimensions_Length : 2.3876 centimeters
ItemPackageDimensions_Width : 7.3914 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : DIYElectronic
Material : Copper
MaximumSwitchingCurrent : 16 amps
MaximumSwitchingVoltage : 230 volts
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
MinimumSwitchingVoltage : 9 volts
ModelNumber : EVTSCAN01smaopqf7
MountingType : din_rail
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Electronic
PartNumber : DIYELJHmo_1097

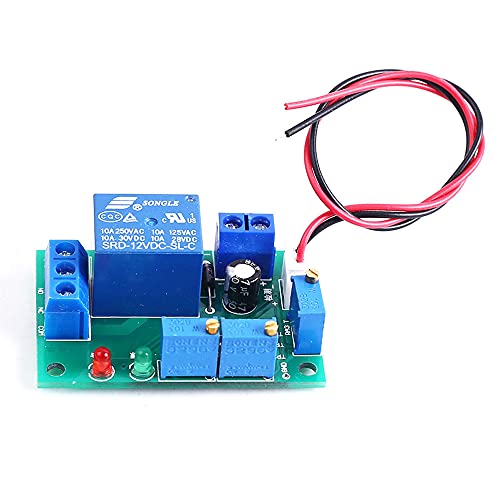

ProductDescription : DC 12V Under-Voltage Protection Module for Battery Charge/Discharge Controller for 1pcs 0V-30V Battery Adjustable Relay Module
1.
Descriptions:
It is a DC 12V under-voltage protection module.This board is a voltage detection module for the common negative electrode (detecting and powering the common negative electrode).The detected voltage needs to have a 2ma drive capability.Its corresponding time is 0.1s-0.2s.
2.Feature:
1>.Real-time battery voltage monitoring
2>.It has a large detection range
3>.There are multiple setting methods for you to choose
4>.It supports the delay check function,which can effectively avoid misoperation caused by voltage jump
3.
Descriptions:
1>.Product Name:DC 12V Under-Voltage Protection Module
2>.Power Supply Voltage:DC 12V
3>.Voltage Detection Range:DC 0V~30V
4>.Standby Current:6mA
5>.Working Current:45mA
6>.Voltage Resolution:0.1A
7>.Test Interface Withstand Voltage:50A
8>.Work Temperature:-25℃~85℃
9>.Work Humidity:5%~95%RH
10>.Size:52*35*22mm
4.Way of Working:
1>.The initial module power-on relay is OFF,and the load does not work.
2>.When it detects that the voltage is lower than the low limit (RA1) setting or detects that the voltage is higher than the high limit (RA2) setting and lasts for T time (RA3 adjustable setting),the relay is ON and the load works.
3>.After the relay is ON,the relay is released only when it is detected that the voltage is between the low limit (RA1) and the high limit (RA2) setting.
4>.After the relay is released,repeat the second and third steps to test the voltage repeatedly.
5.Module Debugging Settings:

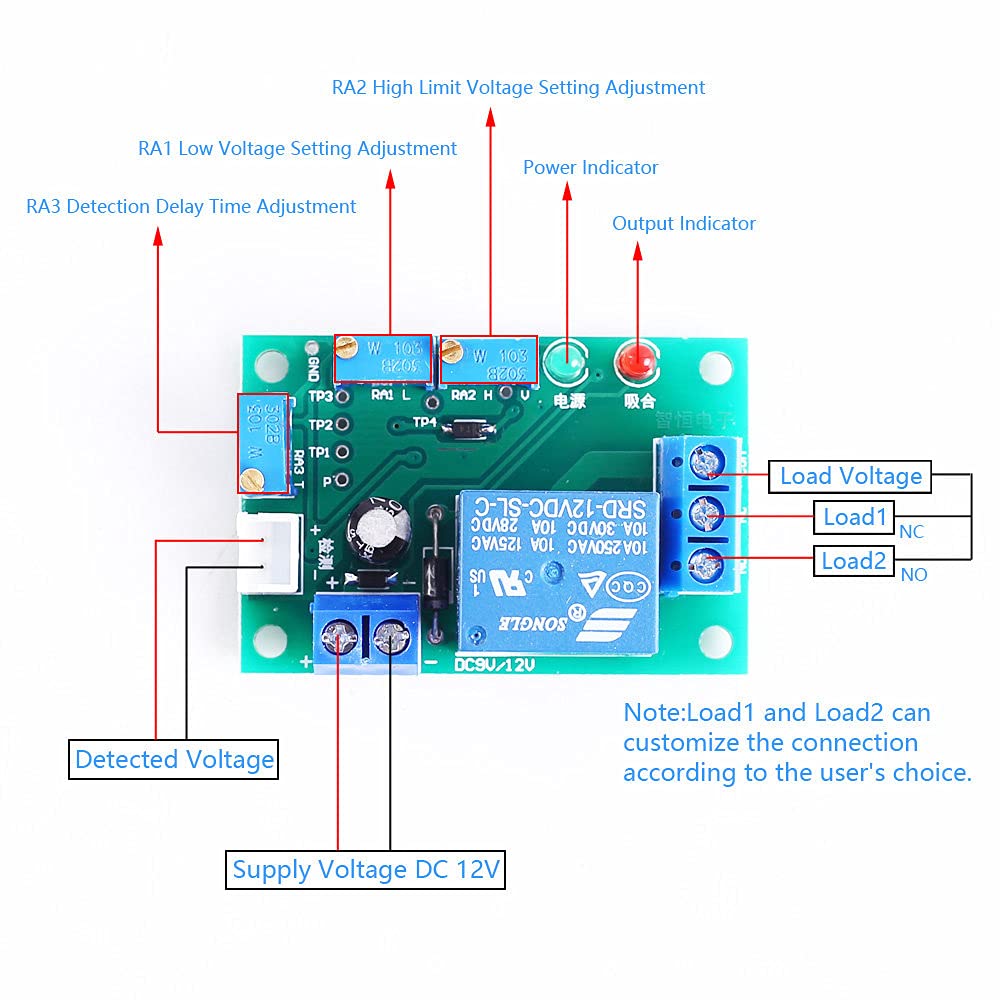

1>.Test point:TP1 test point,test point for detecting the input voltage of the interface (divided by a fixed resistor)
2>.TP3 test point,RA1 (low limit) adjustable resistance adjustable voltage test point.
3>.TP4 test point,RA2 (high limit) adjustable resistance adjustable
