Specification
Brand : eletechsup
BulletPoint1 : Timing range: 0~999Min / Voltage detection error: ±0.1V / Voltage detection display range: 0~99.9V
BulletPoint2 : Working power supply: 12V Version : DC 10-16V ;24V Version : DC 20-30V
BulletPoint3 : Working current: 55mA/12V when the relay is closed, standby current when the digital tube is off: 8mA/12V
BulletPoint4 : Electrical durability: >100,000 times (10A-250VAC) / Electric shock load: 10A/277VAC 10A/30 DC
BulletPoint5 : Relay parameters: a group of conversions (normally open and normally closed points)
ConnectorType : Through Hole
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier1 : 0733805254667
ExternallyAssignedProductIdentifier2 : 733805254667
FinishType : Finish
IncludedComponents : Module
InputVoltage : 10 volts

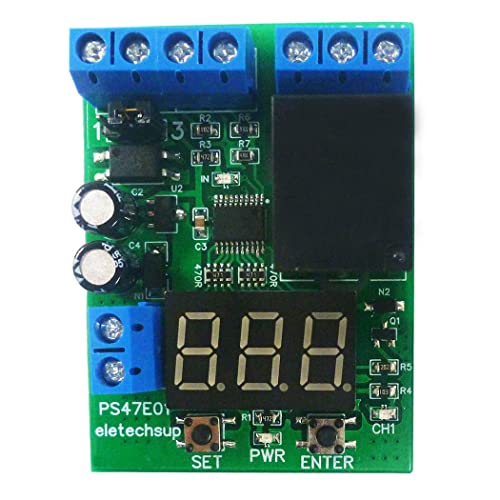

ItemName : DC 12V LED Digital Relay Switch Control Board Module Relay Module Voltage Detection Charging Discharge Monitor Test (1)
ItemPackageDimensions_Height : 17.0942 centimeters
ItemPackageDimensions_Length : 4.2926 centimeters
ItemPackageDimensions_Width : 11.0998 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : eletechsup
Material : iron
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 250 volts
MeasurementSystem : Metric
ModelNumber : 120
MountingType : Flush Mount
NumberOfItems : 1
OperatingVoltage : 10 volts
OperationMode : Automatic
PartNumber : PS47E01_12V
PowerSourceType : Powersource
ProductDescription : Specification:
Item Size:50mm * 73mm * 18.5mm;
Maximum load of NO port: AC 250V/10A,DC 30V/10A;
Provides four fixed bolt holes,hole diameter:3.1mm,holes spacing:44.5mm*67mm;

Module Port:
Input Connection:
DC +: Connect the positive pole (VCC)
DC-: Connect the negative pole (GND)
IN1-IN4: Control the relay-operating by low or high level

Output Connection:
NO1-NO4:Normally open interface,suspended before relay-operating and short-circuit with COM after
COM1-COM4:Channel common interface for relay
NC1-NC4:Normally closed interface,short-circuit with COM before relay-operating and suspended after

ProductDescription1 :

Packing list : DC 12V 24V LED Digital Relay Switch Control Board Module Relay Module

Product parameters:



1. Timing range: 0~999Min

2. Working power supply: 12V Version : DC 10-16V ;24V Version : DC 20-30V

3. Voltage detection error: ±0.1V

4. Voltage detection display range: 0~99.9V

5. Electrical durability: >100,000 times (10A-250VAC)

6. Electric shock load: 10A/277VAC 10A/30 DC

7. Relay parameters: a group of conversions (normally open and normally closed points)

8. Working current: 55mA/12V when the relay is closed, standby current when the digital tube is off: 8mA/12V

9. Three-digit digital tube: It can be set to automatically turn off the digital tube (0~9Min); the set parameters can be saved for 30 years after power off

10. Weight: 26.6g

11. L*W*H: 57*42*20mm

12.Working environment temperature: -40℃~ 85℃



Interface Description:

V+ : Voltage detection positive input terminal

V- : Voltage detection ground

IN+ : Forced switch signal input

IN- : Forced switch signal input

NO : The relay is normally open

COM: relay common terminal

NC : Normally closed terminal of relay



Instructions for use:

After the module is powered on, the indicator light flashes four times and then stays on, the digital tube displays the detection voltage, short press the SET key to enter the setting, the set value digit flashes, press the ENTER key to make the set value from 0 to 9 The cycle increases, the first to be set is the upper limit of the voltage, short press the SET button three times, the second group to be set is the lower limit of the voltage, the lower limit of the voltage cannot be set higher than the upper limit,

ProductDescription2 :

(if the lower limit is The value cannot be set, please increase the upper limit first), short press the SET key to enter the third group of values for the voltage correction value, the default is 0, the setting range is -0.5 ~ +0.5, and the fourth group of values is the digital tube The time of automatic shutdown, such as ''dL0'' means that the digital tube is always on, ''dL9'' means that the digital tube is automatically turned off after 9 minutes. After pressing the SET setting, the digital tube is no longer flashing. At this time, it enters the voltage detection control mode and collects real-time data. Display the DC voltage value input from the outside, when the detected voltage is higher than the set voltage upper limit, the relay will pull in (normally open point is connected, normally closed point is disconnected), until the voltage is lower than the set voltage lower limit value , the relay is released (the normally closed point is connected, and the normally open point is disconnected).



When the voltage is detected, press and hold the SET button for three seconds and then release it, the logic state of the voltage control relay will be reversed. You can use this operation to achieve the voltage higher than the upper limit relay pull-in, or the voltage lower than the lower limit relay pull-in.

When the voltage is detected, short press the ENTER key to switch the minute timing time of the relay's pull-in status (the rightmost decimal point flashes when the timing is in progress). When the relay is released, the timing stops. Press and hold ENTER for three seconds to reset the timer value.

The forced switch can be externally connected or a voltage signal (DC5-26V) can be used to force the relay to pull in. When the external switch or voltage signal is continuously input, the relay pulls in. When the switch or signal disappears, the relay is controlled by voltage detection.

Note: The detection voltage terminals should be in reliable contact,
ProductDescription3 : loose wiring, and lack of insulation around the circuit board may result in inaccurate voltage detection values.
