Specification
Brand : Generic
BulletPoint : Monitoring Relays
BulletPoint1 : Package Included: 2Pcs Voltage Protection Module
BulletPoint2 : Function: The protection switching module is a programmable battery low voltage disconnect switching module for DC 12-36V lead-acid and lithium-ion batteries, without battery
BulletPoint3 : Reset: After power off, press and hold both buttons at the same time, then switch on the power. At this time, the screen displays ""888"", indicating the restoration of factory settings
BulletPoint4 : Battery protection: with accurate voltage monitoring function, it can detect the battery voltage in time, and has over-charging, over-discharging, short-circuit and over-current protection function
BulletPoint5 : Customer Service:If you encounter any product problems, please feel free to contact us, we will provide you with quality after-sales service
Color : 300A CT
CurrentRating : 16 amps
ExternallyAssignedProductIdentifier : 8017169386311
ExternallyAssignedProductIdentifier1 : 0689076273268
ExternallyAssignedProductIdentifier2 : 689076273268
IncludedComponents : No

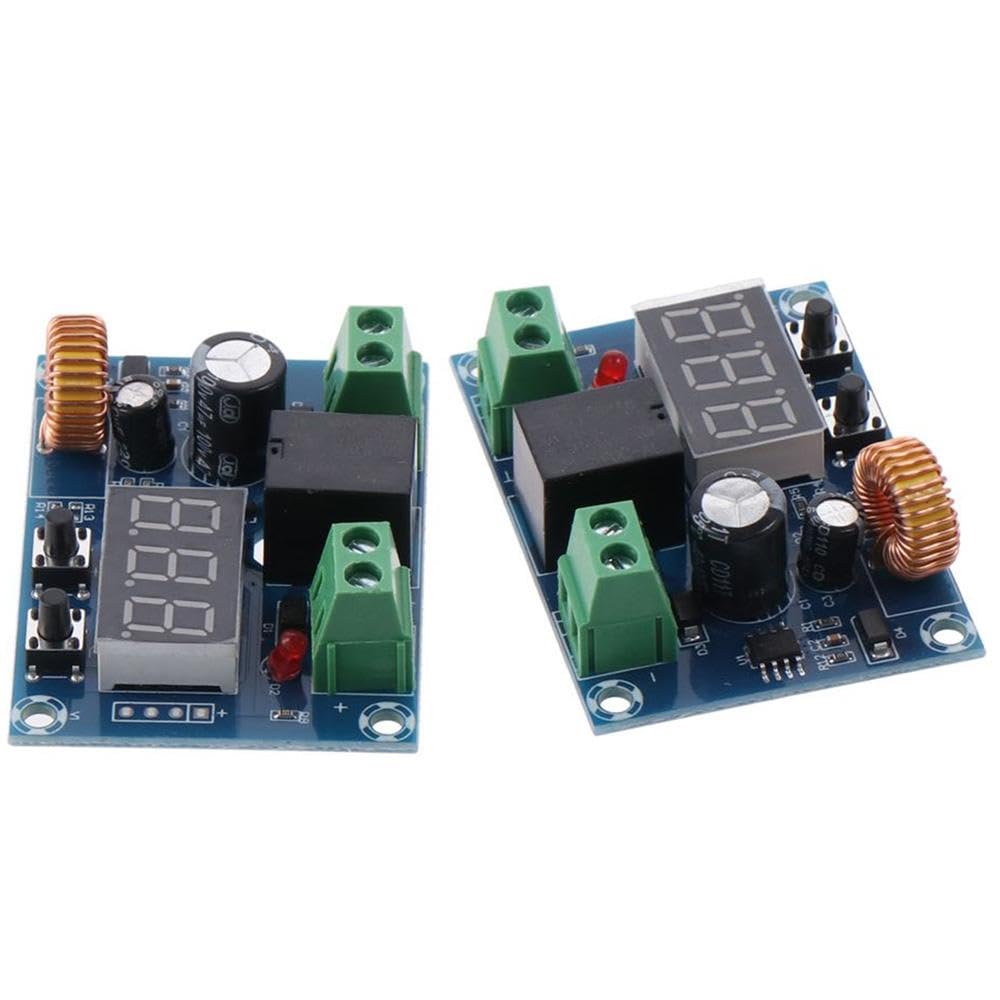

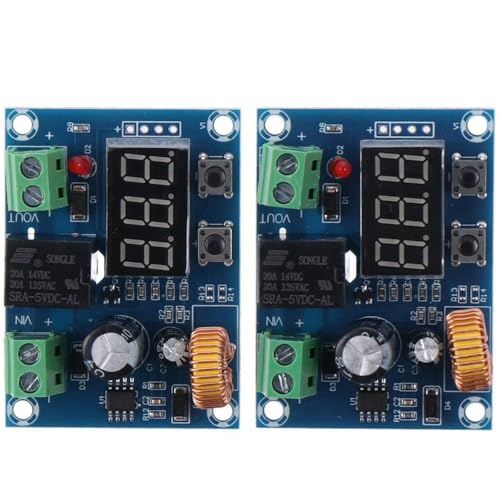

ItemName : 2Pcs DC Voltage Protection Module,Voltage Protection Digital Display Switch, Low Voltage Disconnect Protection Module
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : SHUATI
Material : Copper
MaximumSwitchingCurrent : 16 amps
MaximumSwitchingVoltage : 240 volts
MaximumVoltage : 24 volts
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
MechanicalLifeExpectancy : 1107 cycles
ModelName : QAXIOQCS
ModelNumber : FEBB2D80-SET/06OO8
MountingType : din_rail
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Automatic
PartNumber : FEBB2D80-SET/06OO8
ProductDescription :

(Note: Due to the limitation of the size of the PCB board, the relay size of this module is mini and the circuit lines are very thin. The current should not be too large during actual use. If the current exceeds 8A, the relay contacts may be blown.)

Wide Applications: Programmable battery low voltage disconnect switch for DC12-36V lead acid battery and lithium ion battery. It's a protection switch module, not included batteries itself. Compatible Battery: lead acid, lithium ion battery, solar panel battery. Not suitable for battery packs.

Usage Method: On-board momentary push button to set the low voltage disconnect parameter and 3 digit red LED display the parameter easy to operation. When the battery voltage reach the setting values, the module will disconnect load automatically to aviod the battery from over discharging to prolong the battery lifetime. (Note: The relay does not contain a power cut-off switch, remember to cut off the power supply after disconnection, otherwise the module will continue to use the battery until the voltage is 0.)

Reset: When the power is off, press and hold the two buttons at the same time, and then power on. The factory-set protection value: 12V, difference value: 2V.Difference Value""is the value between the battery voltage to disconnect and the battery voltage to reconnect.

Advantage: Display is accurate, the switch module is quickly to open and close when near minimum voltage; Settings is stored non-volatile, it can keep set when power off.

Package Included: 2Pcs Voltage Protection Module

Note:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.

ProductSiteLaunchDate : 2023-11-21T08:22:11.529Z
Size : Wifi
SpecificationMet : Din
SupplierDeclaredDgHzRegulation : not_applicable
TemperatureRating : 85 degree celsius
TerminalType : Screw Terminal
UnitCount : 1
UnspscCode : 39120000
UpperTemperatureRating : 55 degrees_celsius
Wattage : 1.7 watts
