Specification
Brand : Qioni
BulletPoint1 : Compatible with all 5MP / 4MP / 3MP / 1080p / 720p HD-CVI, HD-TVI, HD-AHD, NTSC, PAL and SECAM video formats. 60 Db cross talk and noise immunity. Spring type connection terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera system，gold plated BNC better transmission quality long distance HD transmitter. No power required!
BulletPoint2 : Instead of screw installation on UPT terminal blocks, this upgraded Evertech HD CCTV Via Twisted Video Balun Transceiver adopted newest “ Press Fit “ screw free installation method, easy to install and save your time, makes the installation work more convenient!
BulletPoint3 : There are 4 small holes and bulgy points set on opposite sides of video balun enable you to combine them together and made a neat line so they are more manageable if more than one video balun is used.
BulletPoint4 : Evertech 16 Pairs ( 32 Pcs. ) HD CCTV Via Twisted HD-CVI/TVI/AHD Passive Video Balun Transceiver BNC Cable Tool Free UTP Terminal Connecter
BulletPoint5 : 1 Year Warranty
Color : Gold
CompatibleDevices : Camera
ConnectorGender : Male-to-Female
ConnectorType : BNC
ExternallyAssignedProductIdentifier1 : 0749249363100
ExternallyAssignedProductIdentifier2 : 749249363100

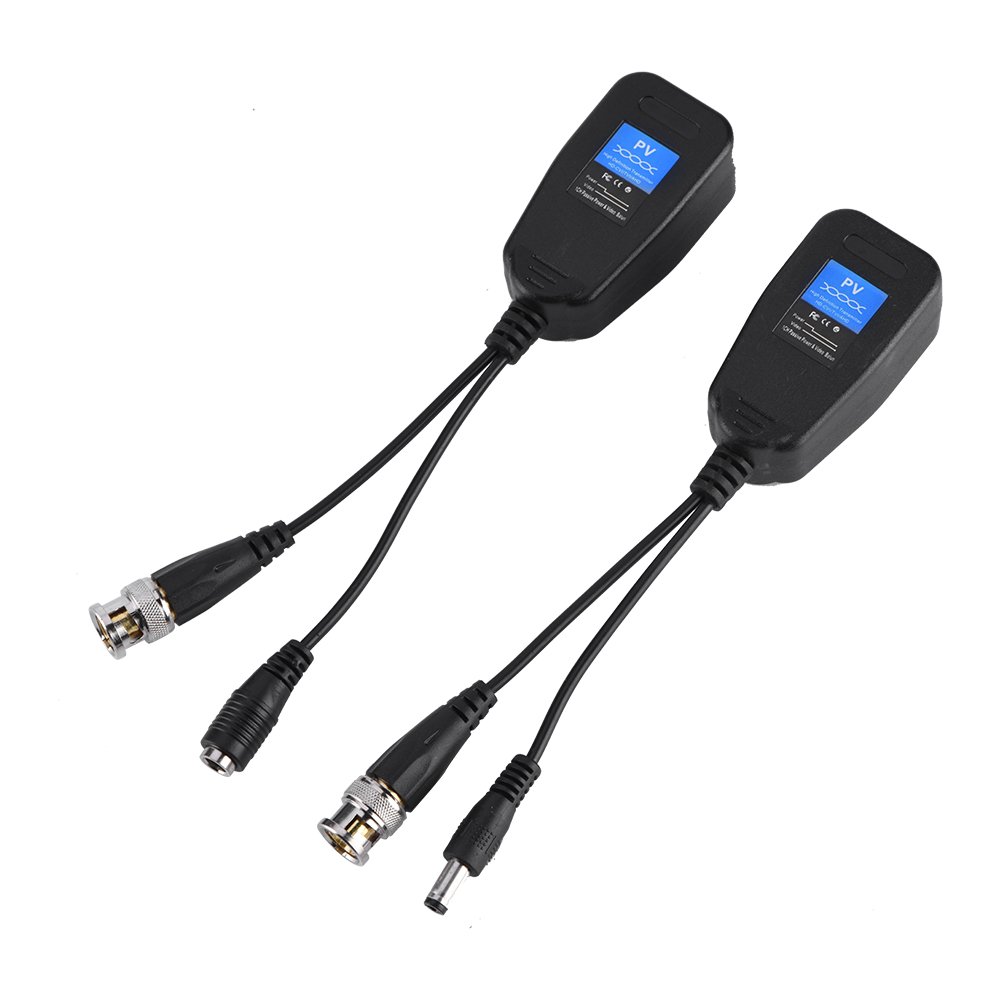

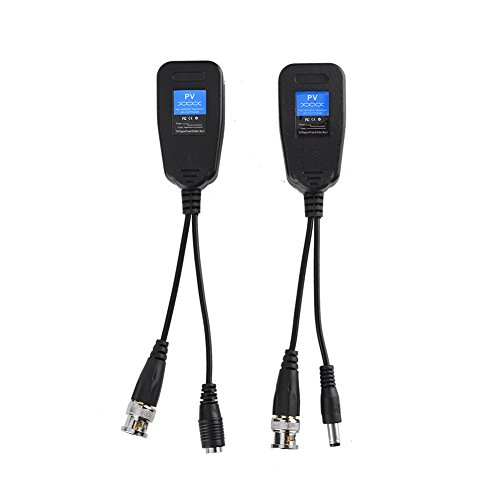

ItemName : Qioni 1Pair Power Video Balun, HD-CVI/TVI/AHD Passive CCTV Coax BNC Video Balun with Power Connector and RJ45 CAT5 Data Transmitter, Compact Size and Easy Installation
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : surveillance-video-transmission-systems
Manufacturer : Qioni
ModelNumber : EVBLN9455MP016
NumberOfChannels : 37
PartNumber : 4657-45
ProductDescription : Specification:
Description:
This Video Transceiver with Power is a passive (non-amplified) device that allows the of real-time or color video over Unshielded Twisted Pair (UTP) telephone wire. Power and Video are routed via UTP and RJ45 connections. Its unparalleled interference rejection and low allows video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits.
Features:
Compatible with HD-CVI, HD-TVI, HD-AHD .
NTC, PAL, and SECAM video formats.
60 db crosstalk and noise immunity.
Compact size and easy installation.
Save cable cost 30%-50%.
Specifications:
Frequency response: DC-60MHZ
Attenuation: 0.5bd type
CMRR(common mode rejection ratio): 60bd
Impedance: BNC: 75Ω; RJ45: 100Ω
distance: Up to 450m for 720P CVI cameras; Up to 250m for 1080P CVI cameras; Up to 250m for 1080P / 720P TVI cameras; Up to 320m for 720P AHD cameras
Working temperature: -10℃ to + 70℃
Storage temperature: -30℃ to + 70℃
Humidity: 0 to 95%
Dimension: 55x30x25 with 12cm cable
Material: ABS plastic
Package weight: 87g
Quantity: 1 pair (2 pcs)
Package Included:
2Pcs x BNC Video Power Balun


ProductSiteLaunchDate : 2023-05-26T08:45:12.614Z
UnspscCode : 43190000
