Specification
Brand : GODIYMODULES
BulletPoint1 : Supply voltage: dc 4.5 v-5.5 v, please note that this machine has no built-in voltage regulator unit, it should not supply over the voltage range
BulletPoint2 : Standby current: <25ma Emission current: <150ma Output impedance: 50 ohms Output frequency range: 35 mhz-4000 mhz Output step: 1 khz-8 khz Output power: -1dbm (w) @ 150 mhz (absolute value of test power) approx. 1 mW
BulletPoint3 : This product operation keyboard has 15 ppt keys, 0 keys, 9 numeric keys, 10, "+ +" and "-" keys that adjust the frequency to use, and also generate emission output behavior. Press the "+ +" or "-" key to add 1 kHz or lose 1 kHz for the primitive frequency output. Press and hold "+ +" or "-" for more than 1 second, continuous or continuous reduction will occur.
BulletPoint4 : The scanning mode is 1 khz at 35 mhz ~ 138 mhz; 10 khz at 138 mhz ~ 550 mhz; 100 khz at 550 mhz ~ 4000 mhz.
BulletPoint5 : To end the scan, simply press the "+ +" - "button or the" ok "button. The" ok "button is the exit control button. Click to launch and press again to stop the transmission. The launch behavior caused by "+ +" or "-" requires two "ok" s to end the launch behavior. This product is in the upper right corner of the screen when there is output emission behavior. The corner will appear ">>", button "c" will end the broadcast and the frequency will be zero.
IncludedComponents : 1pcs

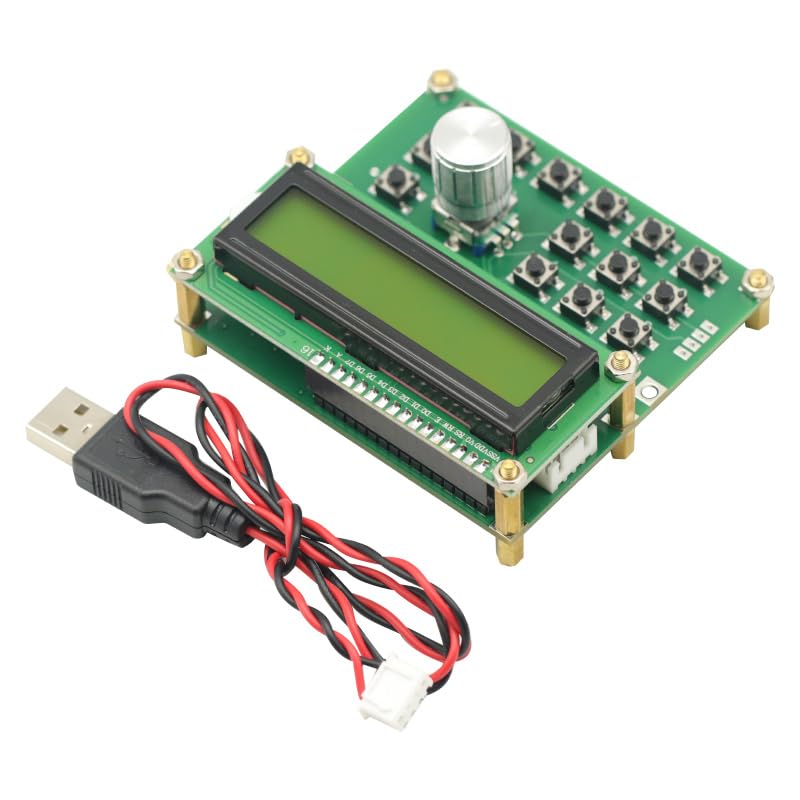

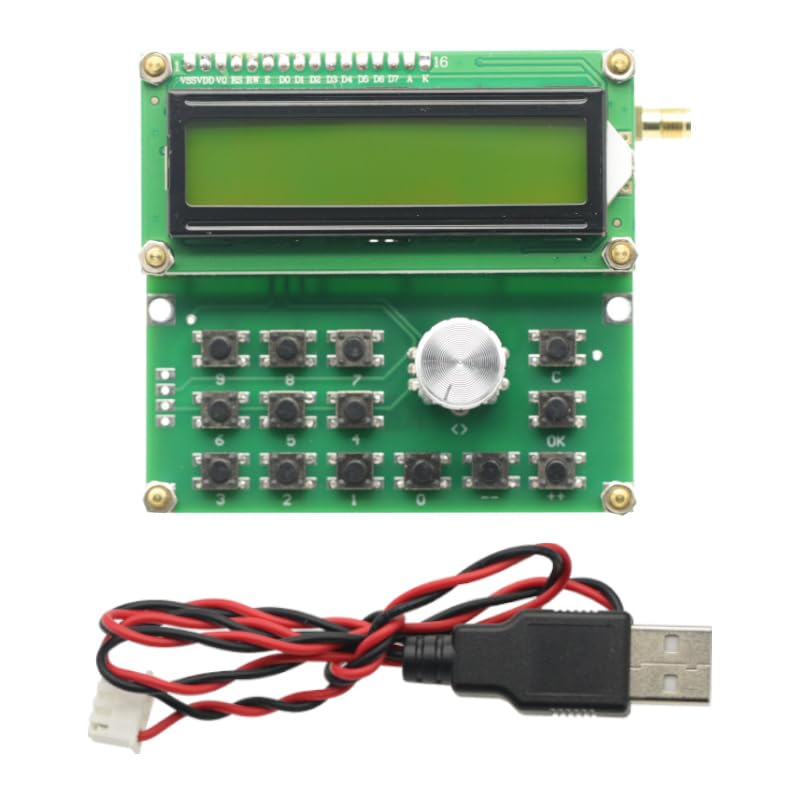

ItemName : ADF4351 Signal Source Variable-Frequency Oscillator Signal Generator 35MHz to 4000MHz Digital LCD Display DC 4.5V-5.5V
ItemPackageDimensions_Height : 0.2 centimeters
ItemPackageDimensions_Length : 11 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : video-inspection-equipment
Manufacturer : GODIYMODULES
MeasurementAccuracy : 1
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Mod-VFORF4-001
ProductDescription :

Features:

Simple RF signal source signal generator.

Core components: av r meg a8 microcontroller, cost-effective single-chip microcomputer, is the low-end general-purpose m16 version, the peripheral adc has a 2.56 v regulator supply, this is not available on other mid-range microcontrollers .

Adf4351, the traditional vco + pll + 6 series high speed bistable circuit (except 2 circuits, trigger d).

35-2200 mhz is obtained by frequency division. After being shaped, the amplitude of the fundamental wave does not change much. This is for high frequency.

(After the signal is split, it must be a rectangular wave, and the amplitude becomes the trigger level).

This product uses the single chip microcomputer as the core, which greatly simplifies the design, reduces development time, saves cost and is simple, reliable and practical.

Provide a signal source for the ac path of the device under test, analyze the frequency amplitude characteristics of the ac path and pay attention to the impedance of the device under test.

Specifications:

Main material: PCB

Green color

Supply voltage: dc 4.5 v-5.5 v, please note that this machine has no built-in voltage regulator unit, it should not supply over the voltage range

Standby current: <25ma

Emission current: <150ma

Output impedance: 50 ohms

Output frequency range: 35 mhz-4000 mhz

Output step: 1 khz-8 khz

Output power: -1dbm (w) @ 150 mhz (absolute value of test power) approx. 1 mW

Item size: 80 * 75 * 30mm / 3.1 * 3.0 * 1.2in

Item weight: 85g / 3.0 oz

Package size: 118 * 97 * 35mm / 4.6 * 3.8 * 1.4in

Package weight: 108g / 3.8 oz

note:

This product operation keyboard has 15 ppt keys, 0 keys, 9 numeric keys, 10, "+ +" and "-" keys that adjust the frequency to use, and also generate emission output behavior.

Press the "+ +" or "-" key to add 1 kHz or lose 1 kHz for the primitive frequency output. Press and hold "+ +" or "-" for more than 1 second, continuous or continuous reduction will occur.

The scanning mode is 1 khz at 35 mhz ~ 138 mhz; 10 khz at 138 mhz ~ 550 mhz; 100 khz at 550 mhz ~ 4000 mhz.

To end the scan, simply press the "+ +" - "button or the" ok "button. The" ok "button is the exit control button. Click to launch and press again to stop the transmission.

The launch behavior caused by "+ +" or "-" requires two "ok" s to end the launch behavior. This product is in the upper right corner of the screen when there is output emission behavior.

The corner will appear ">>", button "c" will end the broadcast and the frequency will be zero.

Package List:

1 * Signal generator
