Specification
Brand : Generic
BulletPoint1 : Model Number: SW-420; Maximum Voltage: 12V; Rated Thermal Current: 20mA
BulletPoint2 : Insulation resistance: 10M ohms; Maximum temperature resistance: 80°C
BulletPoint3 : SW-420 is a single roller omnidirectional induction trigger switch. This product can detect vibrations and inclinations in different directions.
BulletPoint4 : This product is completely sealed and can be waterproof and dustproof. Suitable for induction activation of vibration and inclination of small current circuits.
BulletPoint5 : Vibration sensor has been widely used in electric vehicle alarms in recent years because it simplifies the complicated doorbell and magnet structure plus spring used in conventional alarm.
Color : Multiple Colours

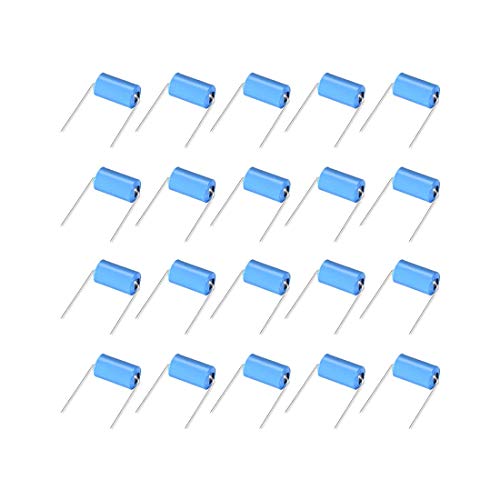

ItemName : XYWHPGV Electronic Vibration Sensor SW-420 Vibration Switch 12V 10mA Curved Pin 20Pcs(b3e1c def76 8d94f 9ea8a 3970e c81d9
ItemTypeKeyword : electronic-component-vibration-sensors
Manufacturer : XYZOOM
ModelNumber : b3e1cdef768d94f9ea8a3970ec81d9
PartNumber : dfeb4aa1-ea2e-ddee9be2d8fe8f
ProductDescription : Description:
1.SW-420 is a single roller omnidirectional induction trigger switch. This product can detect vibrations and inclinations in different directions.
2.This product is completely sealed and can be waterproof and dustproof. Suitable for induction tilting and vibration activation of small current circuits.
3.When there is no vibration or tilt, the product is in the closed ON/OFF state and in a stable state. When there is vibration or tilt, the conductive resistance increases or decreases and a current pulse signal is generated that activates the circuit.
4. Vibration sensor is a vibration sensor element developed for alarms on electric vehicles and motorcycles. Because it simplifies the complicated structure of the buzzer and magnet plus the spring used in traditional alarms, it has been widely used in electric vehicle alarms in recent years.
Working Principle:
Normally, the switch of any angle is on Express. When vibrated or moved, the current conducting roller on the switch will move or vibrate, causing the passing current to be disconnected, or increase the resistance value to activate the circuit.
The feature of this type of switch is that it is normally in the ON state and will be disconnected briefly when it is vibrating, so it has high sensitivity. By setting the IC, the customer can adjust according to the sensitivity requirement of the product.
Specification:

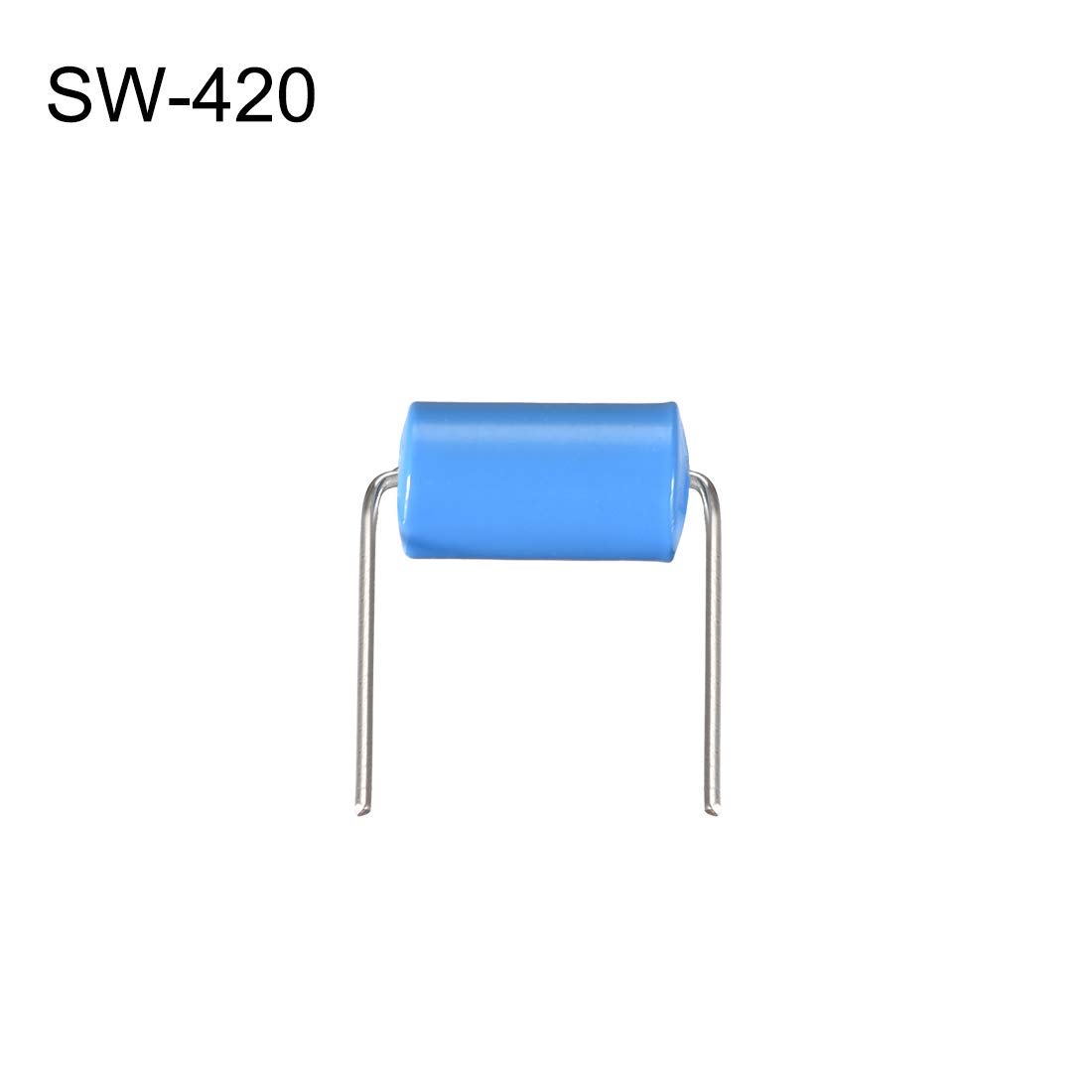

Product Name: Vibration Switch
Model Number: SW-420
Maximum voltage: 12V
Nominal thermal current: 20mA
Insulation resistance: 10M ohm
Maximum temperature resistance: 80°C
Pin Size: 14mm x 0.6mm (L x D)
Body dimension: 10 mm x 5.5 mm (L x D)
ProductSiteLaunchDate : 2023-12-06T08:32:42.240Z
Size : Large
Style : Manual
UnspscCode : 46171600
