Specification
Brand : DIYElectronic
BulletPoint : DC 12V Vibration Delay Relay Module Sensor Module 1-180s Adjustable Delay Control Switch Alarm
BulletPoint1 : 1, use the LM393 wide voltage comparator
BulletPoint2 : 2, the comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma, working voltage of 3.3V to 5V
BulletPoint3 : 3, output form: digital switch output (0 and 1)
BulletPoint4 : 4, has a fixed bolt hole, convenient installation
BulletPoint5 : 5, small board PCB size: 3.2cm x 1.4cm
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 7361424107212
ExternallyAssignedProductIdentifier1 : 0695510004053
ExternallyAssignedProductIdentifier2 : 695510004053
ItemName : DC 12V Vibration Delay Relay Module Sensor Module 1-180s Adjustable Delay Control Switch Alarm
ItemPackageDimensions_Height : 12.2 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 7.7 centimeters
ItemTypeKeyword : electronic-component-vibration-sensors
Manufacturer : DIYElectronic
Material : iron
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 12 volts
MeasurementSystem : Metric
ModelNumber : TG314
OperationMode : Automatic
PartNumber : DIYELJHmo_1751
ProductDescription :

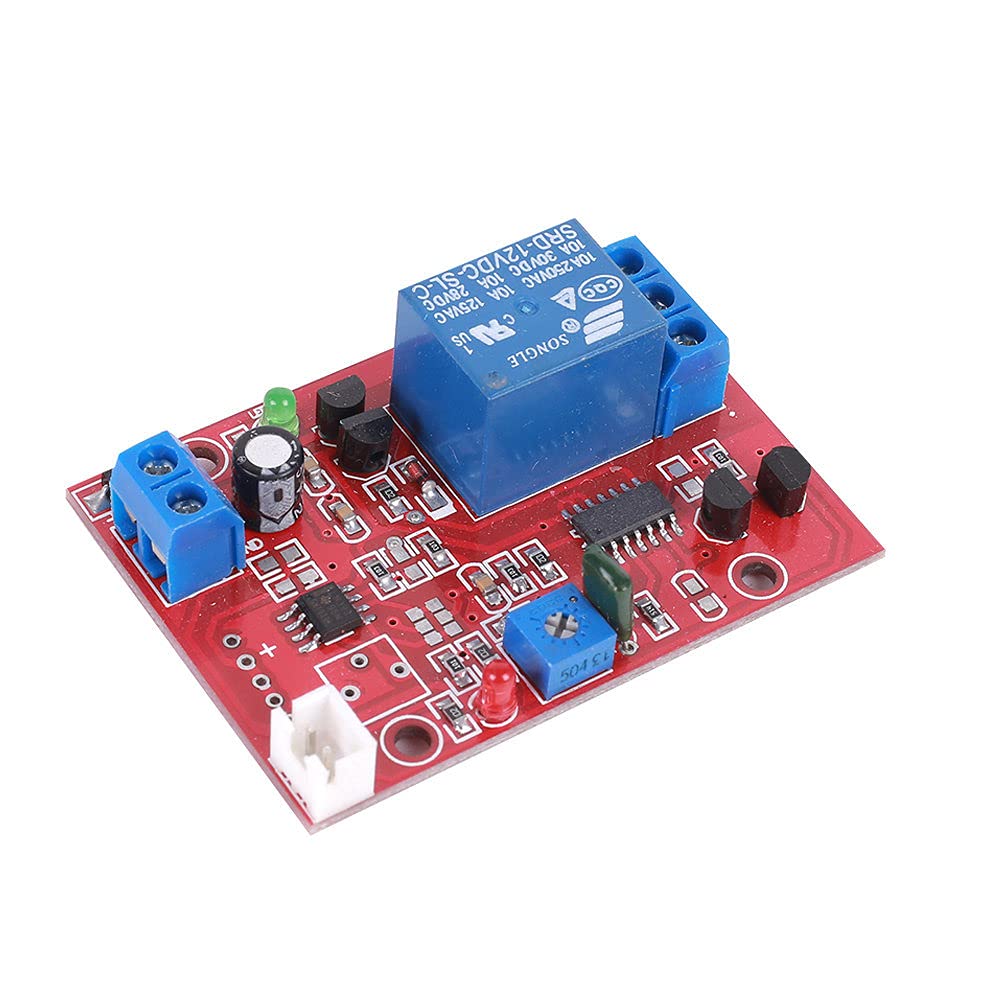

DC 12V Vibration Delay Relay Module Sensor Module 1-180s Adjustable Delay Control Switch Alarm
1>.
Descriptions:
It is a vibration delay module.When the module detects vibration,the relay will be turned on.If there is no vibration,the delay will be turned off.During the delay time,there will always be a vibration trigger signal.The relay will always be turned on,and the relay will not turn off or flicker.After the vibration trigger signal stops,the timing is restarted,and the relay is disconnected after the delay time.
2>.Feature:
1.It is equipped with SW-18010P high sensitivity normally open vibration sensor.
2.The vibration sensor can be connected to the detection position,and the line length within 2 meters has no effect on the sensitivity.
3.It has a protection diode to prevent the power supply from being reversed to effectively protect the product.
4.It has a voltage regulator IC to provide a stable and sufficient power supply.
5.Using high-performance timing CPU design,double-layer PCB board.

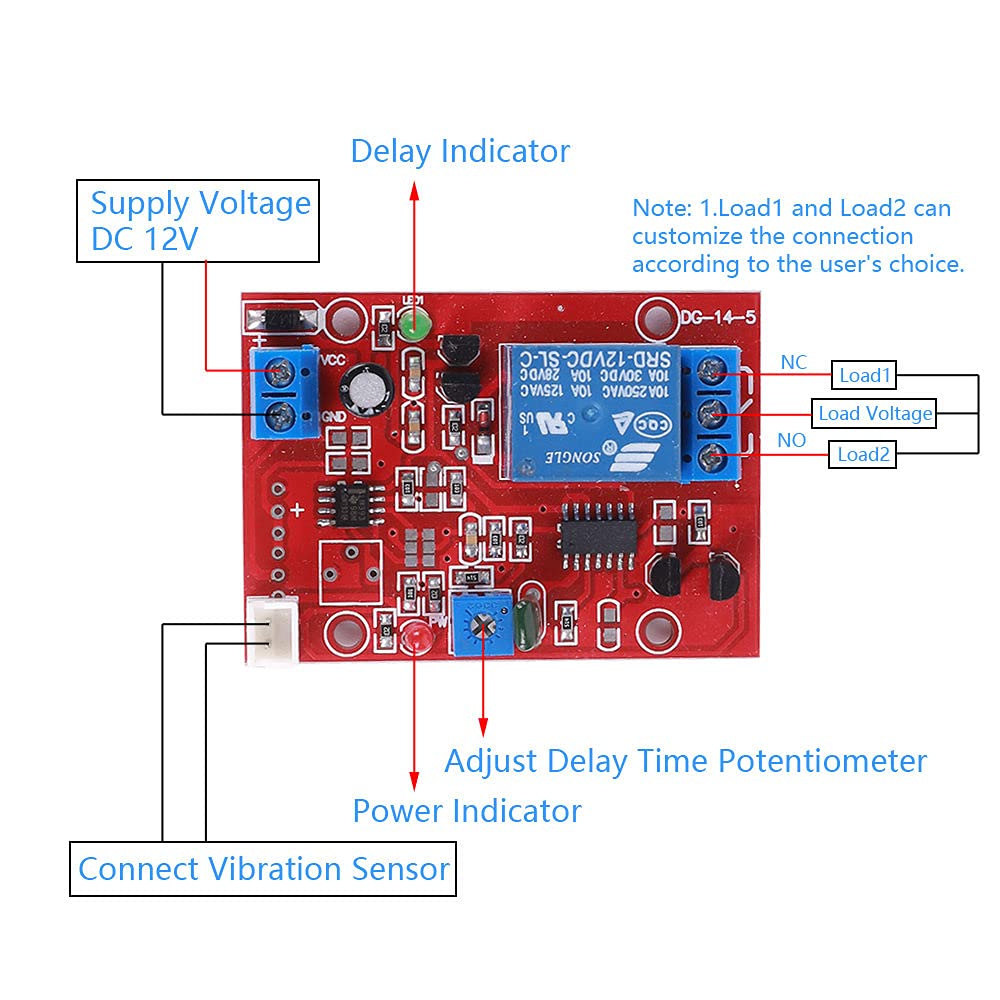

6.There are power indication (red LED) and switch trigger timing indication (green LED) to show the working status.
7.The output can be connected to AC 250V 10A or DC 30V 10A load.
8.There is a timing potentiometer to adjust the time,adjustable from 1-180 seconds.
3>.Parameter:
1.Product Name:Vibration Delay Module
2.Supply Voltage:DC 12V
3.Supply Current:100mA(Min)
4.Output Load:AC 250V 10A/DC 30V 10A
5.Work Temperature:-25℃~85℃
6.Work Humidity:5%~95%RH
7.Size:60*44*20mm
4>.Applications:
1.Cooperate with other various sensors and relay modules,it can be used as various delay switches,directly with AC 220V products.
2.Corridor delay switch,delay energy saving product.
3.Connecting to the vibration sensor can be used for delay triggering of various alarms,such as earthquake alarm,anti-theft alarm,and automobile anti-theft alarm.
4.The vibration sensor c
