Specification
AgeRangeDescription : adult
Brand : Bolisila
BulletPoint1 : Individual ccelerometer for accurate and repeatable measurements.
BulletPoint2 : vibration tester is equipped with an LCD backlight, which can display the measurement value intuitively and clearly.
BulletPoint3 : The structure of the handheld vibration meter is compact, and easy for carrying along with the measurement.
BulletPoint4 : Portable digital vibration check meter is widely used in electric power, petrochemical industry, machinery manufacturing, etc.
BulletPoint5 : Portable vibration tester is a digital vibrometer meter with an electrical acceleration sensor for measuring the routine vibration of mechanical equipment.
Color : One Color
ExternallyAssignedProductIdentifier : 7695790008614
ExternallyAssignedProductIdentifier1 : 0840403712779
ExternallyAssignedProductIdentifier2 : 840403712779

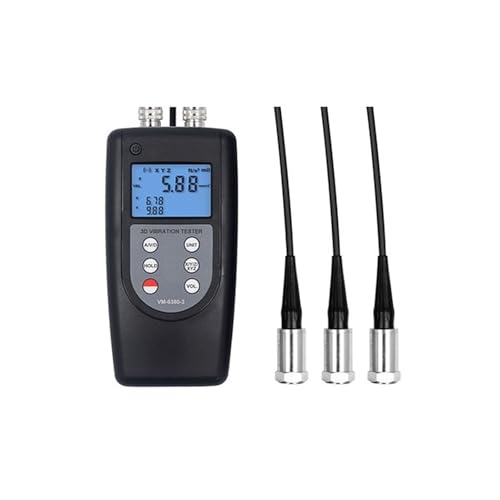

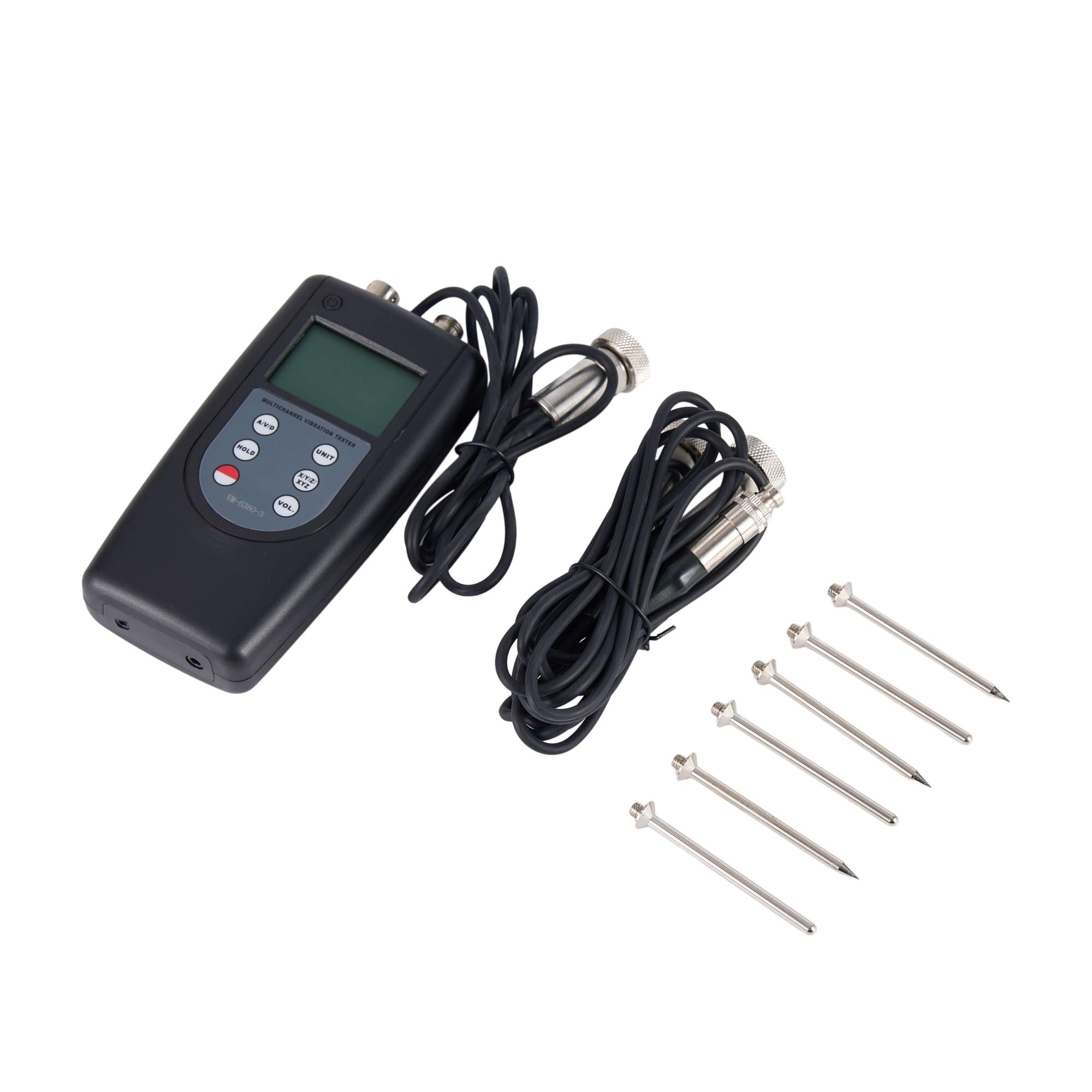

ItemName : Digital Vibrometer VM-6380-3 Velocity Acceleration and Displacement Frequency 10Hz ~ 10kHz Mechanical Vibration Analyzer
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : vibration-meters
Manufacturer : Bolisila
ModelName : Bolisila
ModelNumber : Bolisila
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Bolisila
ProductDescription : Vibration Meter VM-6380-3
Spec:Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
Features
* 3 same parameters in one display for 3 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Use USB/RS-232 data output to connect with PC.
* Provide BT data output choice.
Vibration Standard
ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank
Rev(rpm)
H:high of shaft(mm)
Maximum vibration velocity rms(mm/s)
<;H132
<;H225
<;H400
Normal
600~3600
1.8
2.8
4.5
Good(R)
600~1800
0.71
1.12
1.8
1800~3600
1.12
1.8
2.8
Excellent(S)
600~1800
0.45
0.71
1.12
1800~3600
0.71
1.12
1.8
Specifications
Sensor
3 Piezoelectric Transducers
Measuring Range
Acceleration
0.1m/s²~400m/s² 0.3ft/s²~1312ft/s² 0.0g~40g Equivalent Peak
Velocity
0.01mm/s~400mm/s 0.004inch/s~16.0inch/sTrue RMS
Displacement
0.001mm~4.0 mm 0.04mil~160.0 mil Equivalent Peak-peak
Frequency Range
Acceleration
10Hz~10kHz
Velocity
10Hz~1kHz
Displacement
10Hz~1kHz
Accuracy
5% of Reading+2 digits
Operating Conditions
Temperature
0ºC~50ºC
Humidity
<;90%RH
Power Supply
4x1.5V AAA(UM-4)Battery
Dimensions
140mmx73mmx35mm
Weight
415g(Not Including Batteries)
ProductSiteLaunchDate : 2024-07-24T07:39:23.288Z
Size : One Size
UnitCount : 1
