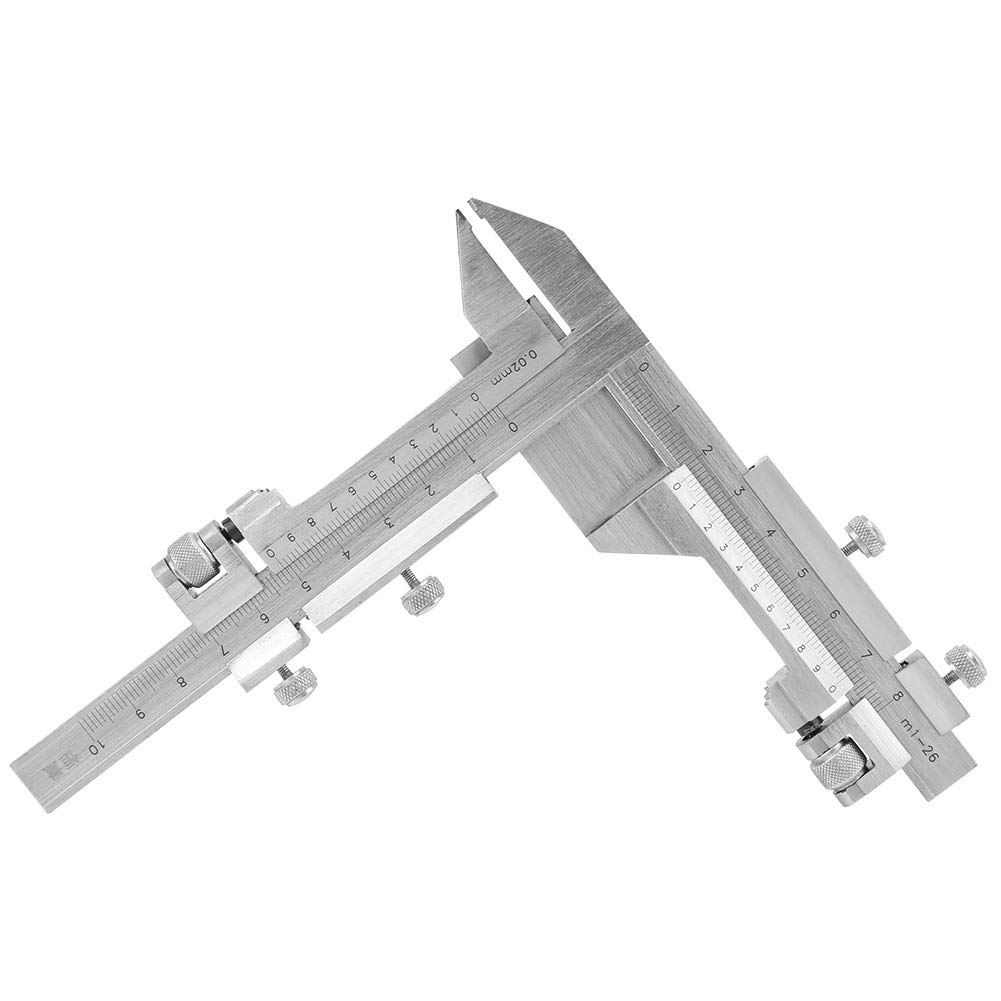

Specification Brand : Dioche BulletPoint1 : [sturdy Material] Made of stainless steel with high hardness, ensuring long, term durability. BulletPoint2 : [Dual Scales Design] Features two movable vernier scales perpendicular to each other for versatile measuring options. BulletPoint3 : [Wide Range] The caliper has a tooth thickness range of 0, 1.56 inches (39.6mm) and a chordal thickness range of 0, 1.44 inches (36.7mm), suitable for various applications. BulletPoint4 : [Precise Adjustment] Equipped with carbide tips and fine adjustment for precise and measurements. BulletPoint5 : [Accurate Measurement] The chordal tooth thickness caliper precisely measures the thickness of gear teeth with high accuracy of 0.0012inch / 0.03mm. Color : blue IncludedComponents : No ItemName : Gear Tooth Vernier Caliper, Stainless Steel Thickness Gauge with Horizontal Scale Measuring Tools for Accurate Gear Teeth Measurement, for Carbide Tips ItemPackageDimensions_Height : 3 centimeters ItemPackageDimensions_Length : 22 centimeters ItemPackageDimensions_Width : 15 centimeters ItemTypeKeyword : vernier-calipers Manufacturer : Dioche MeasurementAccuracy : 0.1mm ModelNumber : Diocheyxgk4ishfm NumberOfItems : 1 PartNumber : Diocheyxgk4ishfm ProductDescription : [sturdy Material] Made of stainless steel with high hardness, ensuring long, term durability. [Dual Scales Design] Features two movable vernier scales perpendicular to each other for versatile measuring options. [Wide Range] The caliper has a tooth thickness range of 0, 1.56 inches (39.6mm) and a chordal thickness range of 0, 1.44 inches (36.7mm), suitable for various applications. [Precise Adjustment] Equipped with carbide tips and fine adjustment for precise and measurements. [Accurate Measurement] The chordal tooth thickness caliper precisely measures the thickness of gear teeth with high accuracy of 0.0012inch / 0.03mm.
Spec:
Item Type: Vernier Caliper Material: Stainless Steel Resolution: 0.001inches / 0.02mm Accuracy: 0.0012inches / 0.03mm Tooth Thickness Range (Horizontal Scale): 0, 1.56inches (39.6mm) Chordal Thickness Range (Vertical Scale): 0, 1.44inches (36.7mm) Instructions: 1. The chordal tooth thickness caliper measures the thickness of the gear tooth with the top circle as the measurement reference. 2. The chordal tooth thickness caliper has two movable vernier scales that are perpendicular to each other. There are two measuring jaws that measure the thickness of the string; the other is the predetermined string height. 3. Calculate the chord height and the chord tooth thickness based on the gear parameters. The caliper with the chord height is fixed in size and locked, and the fixed end of the chord height is placed against the top of the tooth, and then the two claws of the chord tooth thickness are contacted to the two different side profiles, and the chord is measured. The teeth are thick.
