Specification
Brand : Huapa
BulletPoint : Price For: Each
BulletPoint1 : High reliability – generous lubrication of moving parts. Safe process and systems – fast acting inlet valve for best in class anti‑suck back protection.
BulletPoint2 : Configured to meet your vacuum needs – mode selector and two position gas ballast. No unplanned downtime – designed for easy maintenance.
BulletPoint3 : Better work environment – quiet running and intrusive frequencies minimised. Two position gas ballast allows either 60 g/hr or a class leading 220 g/hr (290 g/hr on RV12) of water vapour to be handled. Universal motor to cover the widest possible voltage and frequency range from a single variant.
BulletPoint4 : Smooth controlled inlet valve opening by oil pressure to eliminate pressure surges. Rapid closing inlet valve within 0.4 seconds of pump stopping.
BulletPoint5 : Pump oil is not included, please purchase the pump oil separately.Recommended oil:Ultragrade 19(Not inculded)
Color : Red
ExternallyAssignedProductIdentifier : 7430881787845
ExternallyAssignedProductIdentifier1 : 0651074454819
ExternallyAssignedProductIdentifier2 : 651074454819
IncludedComponents : No included components

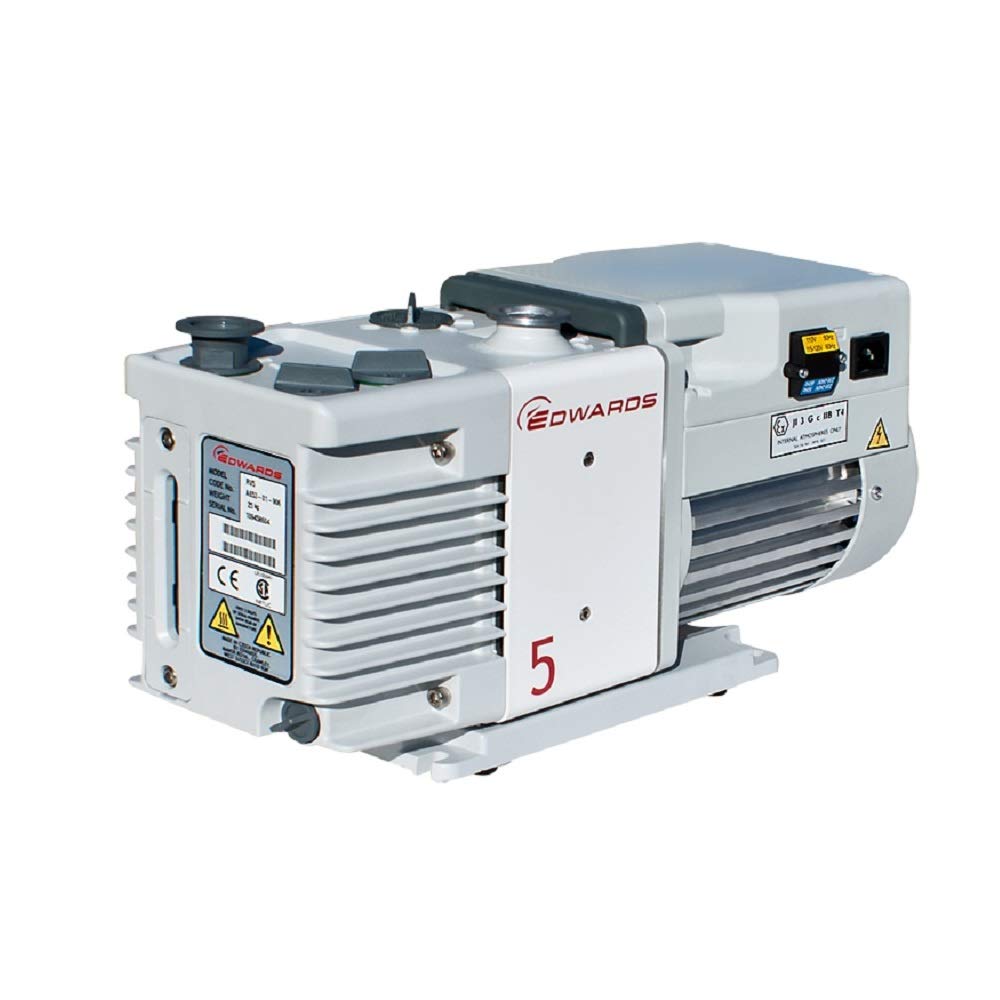

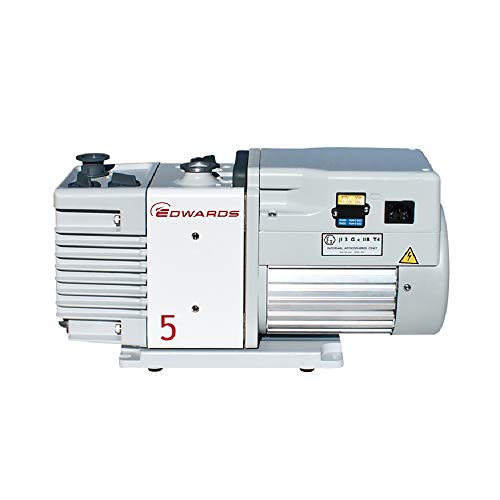

ItemName : Edwards 5 RV5 Rotary Vane Dual Stage Mechanical Vacuum Pump A65301903
ItemPackageDimensions_Height : 31.8008 centimeters
ItemPackageDimensions_Length : 7.5946 centimeters
ItemPackageDimensions_Width : 13.4112 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-pumps
Manufacturer : Huapa
Material : Germany Imported Carbon Graphite
MaximumFlowRate : 8 cubic_feet_per_minute
ModelName : Uniweld HVP8 Vacuum Pump, 8 CFM
ModelNumber : 526627 | 525421 | 523885
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : HP700102
PowerSourceType : Battery Powered
ProductDescription :

The RV series of small oil sealed rotary vane pumps deliver excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. With over 300,000 units produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications. All RV pumps are approved to UL and CSA standards by an external test house and feature our unique mode selector switch, meaning one model is suitable for both high vacuum or high throughput applications.

Specification:
Displacement
50Hz 3.7 m3h-1 / 2.2 ft3min-1
60Hz 4.5 m3h-1 / 2.6 ft3min-1
Speed (Pneurop 6602)
50Hz 3.3m3h-1 / 2 ft3min-1
60Hz 3.9 m3h-1 / 2.3 ft3min-1
Ultimate pressure:2 x 10-3 mbar / 1.5 x 10-3 Torr
Ultimate pressure GB I:3 x 10-2 mbar / 2.3 x 10-2 Torr
Ultimate pressure GB II:1.2 x 10-1 mbar / 9.1 x 10-2 Torr
Ultimate pressure with Fomblin:2 x 10-2 mbar / 1.5 x 10-2 Torr
Max inlet pressure for water vapour :80mbar / 60 Torr
Max water vapour pumping rate – GB I:60 gh-1
Max water vapour pumping rate – GB II:220 gh-1
Max allowed outlet pressure:0.2 bar gauge / 2.8 psig
Max allowed inlet and gas ballast pressure:0.5 bar gauge / 7 psig
Motor power 50/60Hz:450 / 550W
Power connector:1-ph IEC EN60320 C13
Nominal rotation speed:50/60Hz 1500 / 1800rpm
Weight (without oil):25 kg / 55 lb
Oil capacity min/max:0.42 / 0.7 litres
Recommended oil:Ultragrade 19(not inculded)
Inlet flange:NW25
Exhaust flange:NW25
Noise level:48 dB(A) @ 50 Hz
Operating temperature range:12 – 40 °C

ProductSiteLaunchDate : 2019-04-17T07:00:00.000Z
Size : 8 CFM
StreetDate : 2021-12-14T00:00:01Z
Style : Low-Profile
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40151500
Voltage : 110 volts
