Specification
Brand : TRANSWAN
BulletPoint1 : 1 x PCI-e slot to 2 x USB 3.0 port(5 Gbps) with Mini Size of 88.50 x 32.80 x 17.80 mm
BulletPoint2 : Max extension distance 250 Meters (820 FT) over optical fiber cable for USB flash disk; but For real-time live transmission like High Speed USB 3.0 Camera , the Max distance is 150 Meters over Single-mode Fiber.
BulletPoint3 : Compatible with PCI Express Base 2.0 Specification; Compatible with xHCI Specification Revision 1.0
BulletPoint4 : Support Full Duplex with 10Gbps 2 x SFP module. Pure hardware design, No driver needed, support plug and play
BulletPoint5 : Compatible with Windows 8, Windows 8.1, Windows 10, Windows 11, full version of the LINUX, UNIX or Mac OS operation systems.
BulletPoint6 : Support USB 3.0 Super Speed up to 5 Gbps, but Not backwards compatible with USB 2.0 and USB 1.1
Color : Black
CompatibleDevices : USB 3.0 Devices
ConnectorGender : Male-to-Female
ConnectorType1 : Usb 3.0 Type a
ConnectorType2 : 1 X Lc Sfp
DataTransferRate : 5 gigabits_per_second
ExternallyAssignedProductIdentifier : 7705580644608
IncludedComponents : Power Supply Adapter

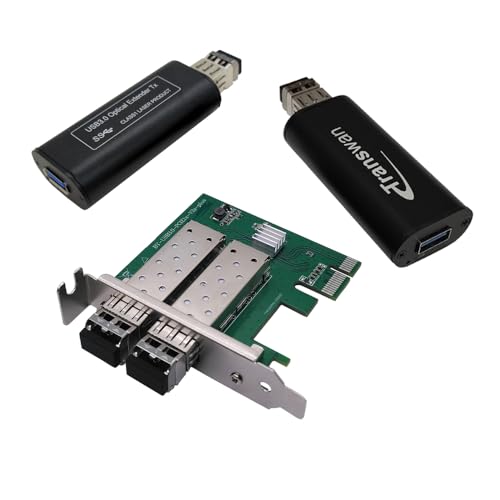

ItemName : TRANSWAN PCI-E Slot to 2 Ch x Mini USB 3.0 Fiber Optic Extender Over Max 250 Meters (820FT) Single-Mode Fiber, Super Speed 5 Gbps Supported (BY-2PUSB-912SF(Over 1 Strand SMF))
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : computer-usb-port-cards
Manufacturer : TRANSWAN
ModelName : BY-2PUSB-912SF
ModelNumber : BY-2PUSB-912SF
NumberOfItems : 1
PartNumber : BY-2PUSB-912DF
ProductDescription : Description:
PCI-E slot to Mini USB 3.0 over optical Fiber Extender BY-2PUSB-912 includes 2 x transmitters（client-side）and 1 x PCI-E to USB 3.0 fiber expansion card（host-side）which is installed in the PCIe sloExts in the host computer. it can extend the Super Speed 5 Gbps USB 3.0 to a remote location over 1 or 2 cores fiber cable, max distance 250 Meters (820 FT) over Single-mode Fiber.

Supported Typical USB 3.0 Devices
: 1). USB 3.0 Camera:
Intel RealSense, XiQ USB 3.0 Camera, Kinect Xbox, Kinect Azure, EMCCM camera etc
2). Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing, Telescope etc
3). Aduio Device:
Stereo D to A Converter etc
4). Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5.) Others
Application:
1.Industrial video transmission.
2.USB 3.0 Vision cameras.
3.HD video surveillance system.
4.High - speed data acquisition system.
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8. VA/VR systems.
9. Telescope Site.

Specs:
Optical Connector: 2 x LC, 1 x LC SFP optional
SFP used: 4 pcs
Wavelength: 1310nm (default), 1270~1610nm Optional; 1330nm/1270nm
Support Fiber types: 9/125μm
Physical Size (L× W ×H):
1).Client unit: 88.50 x 32.80 x 17.80 mm
2) The Card at Host: 120 mm (for 4U chassis)x 67 mm x 58 mm; 80 mm (for 2U chassis)x 67 mm x 58 mm;
Case material:Aluminum
Color:Black
N.W.:0.5Kg
Power: Sender Voltage:5V DC
Sender power consumption: Less 10W
Receiver power consumption: Less 2W
Environment Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity:0-95% (non-condensing)

Package:
1. 2 x transmitter (client side) with SFP module.
2. 1 x PCI-E to USB 3.0 card (host side) with 2 x SFP module and 2U & 4U chassis
3. 1 x Power Supply Adapters DC 5V with US/EU/UK/AU plug.
4. 1 x Manual.

ProductSiteLaunchDate : 2025-04-21T08:48:11.852Z
Size : 14X6.9X1.3CM
Style : BY-2PUSB-912SF( over 1 Strand SMF)
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43201400
WarrantyDescription : Manufacturer warranty for 90 day
