Product Information
Editorial Review
Specification * Connector: - 2x Type-C USB 3.1 female - 1 x 15-pin SATA power connector (optional connection) * Chipset: ASMedia ASM2142 * Software: - No driver installation is required on Mac OS X 10.9 to 10.10, and 10.12 Sierra (NOTE: does NOT work on OS X 10.11), Win10/8.1/8, Server 2012, and Linux 2.6.31 and later. The OS native built-in drivers feature UASP. - The ASMedia driver for 32/64 bit Windows 7/Vista, and Server 2008/2003 is available from our website. (ASMedia driver doesn't support UASP) * Data transfer rate: - USB 3.1 Gen2 up to 10 Gbps * Power: - Support up to 3A/5V on each USB-C downstream port. - The 15-pin SATA power connection is optional for additional power source. Each USB port can provide up to 3A/5V power. If full loaded, it requires at least 30W (2 ports * 3A/5V) power. The power supply from PCIe bus to a 4-lane/low profile card is 10W (max) per PCI Express specification. * Instead of taking 5V power directly from power supply, our design includes power switching regulator circuit that automatically converts 12V from PCIe bus or from 15-Pin SATA power to ensure sufficient 5V/3A bus power on USB-C port. * USB3.1 PCIe x4 Lane Host Adapter Card powered by ASM2142 with PCIe Gen3 x2 Lane performance * Low Profile PCIe Form Factor board * Supports PCIe 1.0, 2.0, or PCIe 3.0 motherboard * Compliant with PCI Express Specification 3.0 * Compliant with USB 3.1 Spec. Rev. 1.0, Intel xHCI Spec. 1.0. * Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0. * Support USB 3.1, 3.0, 2.0, and 1.1 devices. * Include both Low Profile and Regular Size PCIe brackets * Fully RoHS compliant Note:UASP featue is only available with Windows and OS X built-in drivers. The ASMedia driver does not have UASP feature.
Features
1) Two Type-C (USB-C) downstream connectors. Up to 10Gbps data transfer speed, twice as fast as USB 3.0.

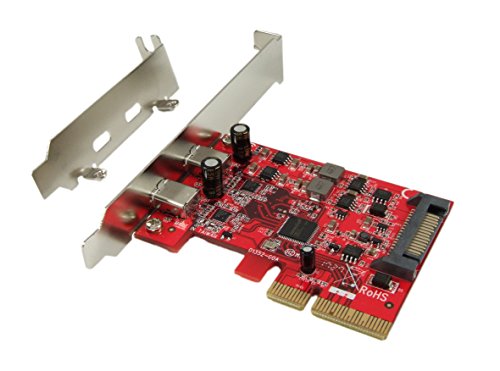

2) Low Profile board. Include both Low Profile and Regular Size PCIe brackets. PCIe x4 card fits in any PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot.
3) Instead of taking 5V power directly from power supply, our design includes power switching regulator circuit that automatically converts 12V from PCIe bus or from 15-Pin SATA power to ensure sufficient 5V/3A bus power on each USB 3.1 Type C port.
4) No driver installation is required on Mac OS X 10.9 to 10.10, and 10.12 Sierra (NOTE: does NOT work on OS X 10.11), Win10, 8.1, 8, and Server 2012. Driver download is available for 32/64 bit Windows 7/Vista, and Windows Server 2008/2003. Note: UASP featue is only available with Microsoft and OS X built-in drivers. Currently, the ASMedia driver does not have UASP feature.
5) Built with ASMedia ASM2142. Fully RoHS compliant. Made in Taiwan.
Specification
Binding : Electronics
Brand : Ableconn
Label : Ableconn
Manufacturer : Ableconn
Model : PU31-2C-2
PackageDimensions_Weight : 0.21 pounds
PackageDimensions : L:5.60 X W:4.00 X H:1.60
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : Ableconn
Studio : Ableconn

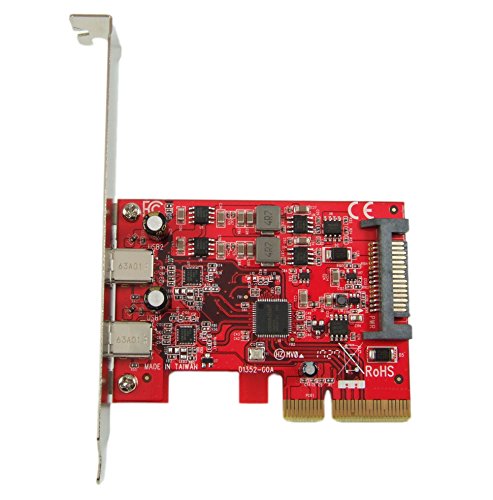

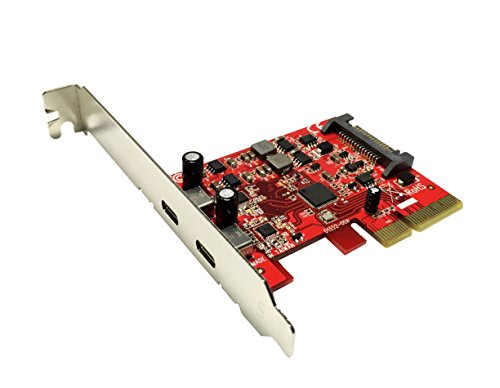

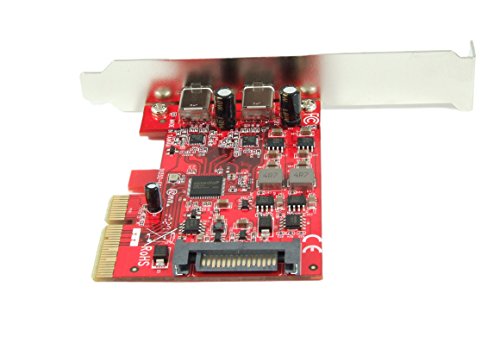

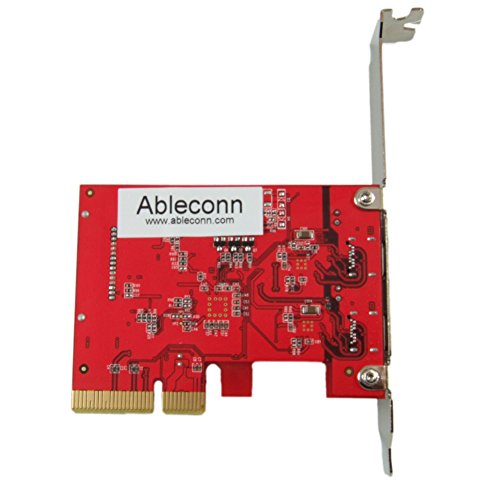

Title : Ableconn PU31-2C-2 USB 3.1 Gen 2 (10 Gbps) 2-Port Type-C PCI Express (PCIe) x4 Host Adapter Card - Support Mac OS X 10.12 Sierra and Windows 10 / 8
