Product Information
Editorial Review

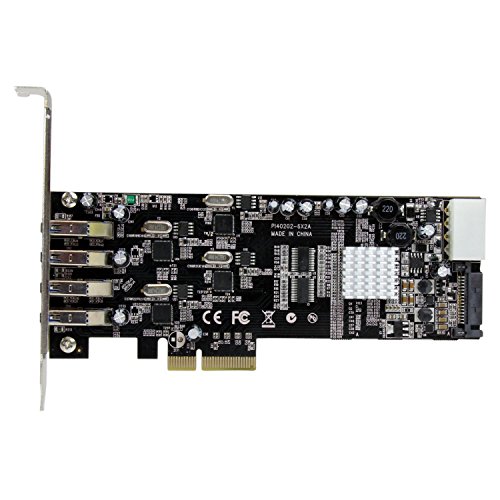

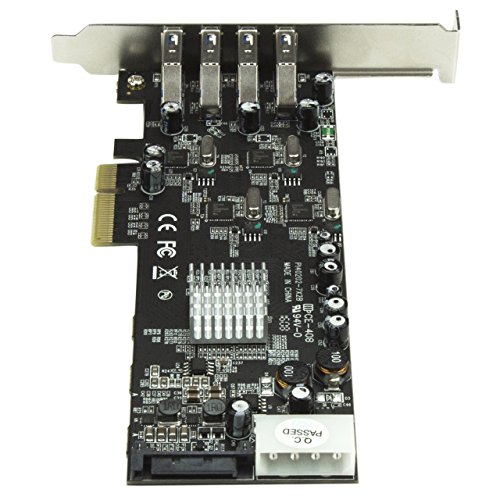

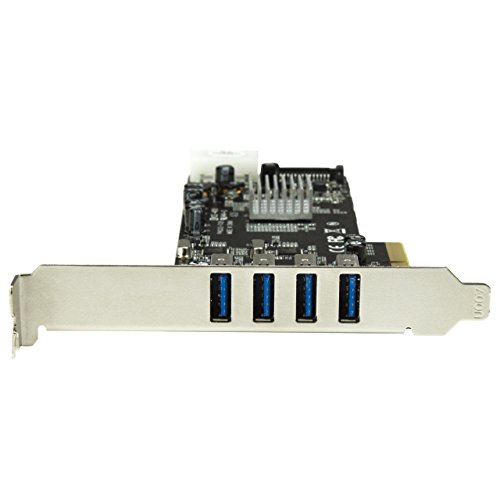

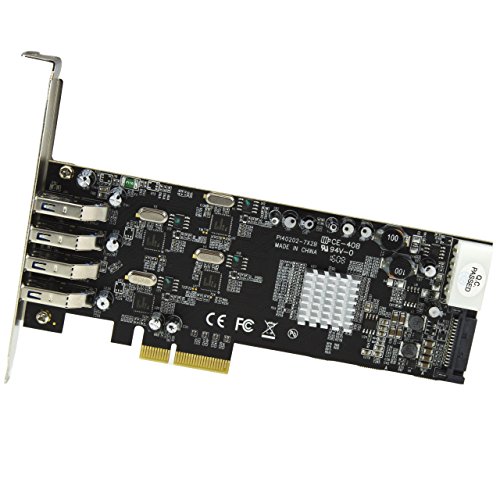

Add four USB 3.0 ports with four independent channels, LP/SATA power, and charging support to your PC through a PCI Express slot. The PEXUSB3S44V 4-port PCI Express USB 3.0 card lets you add four, dedicated 5 Gbps USB 3.0 ports to your PCIe x4-enabled PC. This independent port architecture improves USB 3.0 performance by transferring data on four individual channels to your computer, giving you faster file transfers. When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing four host controller Chipsets, each port operates on a separate independent transmission channel. Dedicating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps. Enhanced with UASP support (USB attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). using a more efficient Protocol than the traditional USB bot (bulk-only transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. For high-power USB devices, this PCIe USB 3.0 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). the USB 3.0 card also supports USB battery charging specification 1.2 (Apple mode only), letting you charge compatible Apple devices (I phones and iPad) faster than a standard USB 3.0 port.
Features
1) Increase the efficiency of your USB 3.0 devices with four dedicated bus channels and up to 5 Gbps of bandwidth per channel - 20 Gbps total
2) Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
3) Power high-powered USB devices as necessary, with the optional LP4 or SATA power connector
4) Provides four external, independent USB 3.0 Ports
5) Supports up to 20 Gbps total transfer bandwidth - Up to 5 Gbps per port
Specification
AspectRatio : Unknown
Binding : Personal Computers
Brand : StarTech
EAN : 5054484566939
Label : STARTECH.COM
Manufacturer : STARTECH.COM
Model : PEXUSB3S44V
PackageDimensions_Weight : 0.02 pounds
PackageDimensions : L:8.30 X W:5.70 X H:1.60
Platform1 : Windows 8
Platform2 : Windows Vista Business
Platform3 : Windows Vista Enterprise
Platform4 : Windows Vista Home Basic
Platform5 : Windows Vista Home Premium
Platform6 : Windows Vista Ultimate
Platform7 : Windows XP Home Edition
Platform8 : Windows XP Professional
ProductGroup : Personal Computer
ProductTypeName : COMPUTER_COMPONENT
Publisher : STARTECH.COM
ReleaseDate : 2014-01-29
Size : 4 Ext Quad Bus
Studio : STARTECH.COM
Title : 4 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter w/ 4 Dedicated 5Gbps Channels - UASP - SATA / LP4 Power
Add four USB 3.0 ports with four independent channels, LP/SATA power, and charging support to your PC through a PCI Express slot. The PEXUSB3S44V 4-port PCI Express USB 3.0 card lets you add four, dedicated 5 Gbps USB 3.0 ports to your PCIe x4-enabled PC. This independent port architecture improves USB 3.0 performance by transferring data on four individual channels to your computer, giving you faster file transfers. When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing four host controller Chipsets, each port operates on a separate independent transmission channel. Dedicating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps. Enhanced with UASP support (USB attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). using a more efficient Protocol than the traditional USB bot (bulk-only transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. For high-power USB devices, this PCIe USB 3.0 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). the USB 3.0 card also supports USB battery charging specification 1.2 (Apple mode only), letting you charge compatible Apple devices (I phones and iPad) faster than a standard USB 3.0 port.
Features
1) Increase the efficiency of your USB 3.0 devices with four dedicated bus channels and up to 5 Gbps of bandwidth per channel - 20 Gbps total
2) Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
3) Power high-powered USB devices as necessary, with the optional LP4 or SATA power connector
4) Provides four external, independent USB 3.0 Ports
5) Supports up to 20 Gbps total transfer bandwidth - Up to 5 Gbps per port
Specification
AspectRatio : Unknown
Binding : Personal Computers
Brand : StarTech
EAN : 5054484566939
Label : STARTECH.COM
Manufacturer : STARTECH.COM
Model : PEXUSB3S44V
PackageDimensions_Weight : 0.02 pounds
PackageDimensions : L:8.30 X W:5.70 X H:1.60
Platform1 : Windows 8
Platform2 : Windows Vista Business
Platform3 : Windows Vista Enterprise
Platform4 : Windows Vista Home Basic
Platform5 : Windows Vista Home Premium
Platform6 : Windows Vista Ultimate
Platform7 : Windows XP Home Edition
Platform8 : Windows XP Professional
ProductGroup : Personal Computer
ProductTypeName : COMPUTER_COMPONENT
Publisher : STARTECH.COM
ReleaseDate : 2014-01-29
Size : 4 Ext Quad Bus
Studio : STARTECH.COM
Title : 4 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter w/ 4 Dedicated 5Gbps Channels - UASP - SATA / LP4 Power
