Product Information
Editorial Review
Why we choose MJPEG USB Camera? Choose "MJPEG" final purpose is to reduce data stream, improve the video frame, so that the video will more smooth and occupy less bandwidth. Such as 1megapixel common camera,YUV format only have 10fpsï¼OEwhile MJPEG usb camera can up to 30fps. Most Linux USB port device is USB2.0, becuase bandwidth limited, can not receive YUV data stream, so that need to choose the MJPEG data stream. Common USB PC camera do not have MJPEG DSP, even those support MJPEG but can not work with USB2.0 yet. Product Name:ELP-USB500W04AF-L60 Sensorï¼s OV5640 (1/4") Max. Resolutionï¼s 2592 (H) *1944 (V) Sensitivityï¼s600mV/Lux-sec Pixel Sizeï¼s1.4μm x1.4μm Image areaï¼s 3673.6μmx2738.4μm Maximum Image Transfer Rateï¼s 2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG 1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG 1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG Camera Board Assembly techniqueï¼s SMT (ROSH) FocusManual Resolutionï¼s 600LW/PH (Center) interfaceï¼s USB 2.0 High Speed protocolï¼s USB Video Classï¼^UVC S/N Ratioï¼s36dB Dynamic Rangeï¼s 68dB Shutterï¼s Rolling shutter/ frame exposure Packageï¼s CSP, Bare Die AGC/AEC/AWB/ABFï¼s Auto Output Formatsï¼s YUYV/MJPEG Adjustable parameterï¼s Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus Packageï¼s LQFN-40pin Lens Parameter Size: 1/4, Iris: F2.8, Focus: 3.2mm, FOV: 65Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm
Features

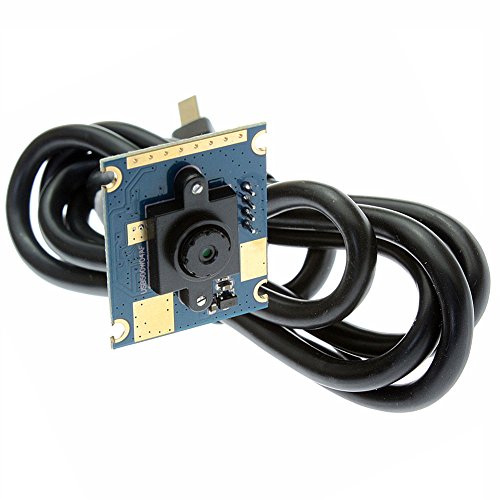

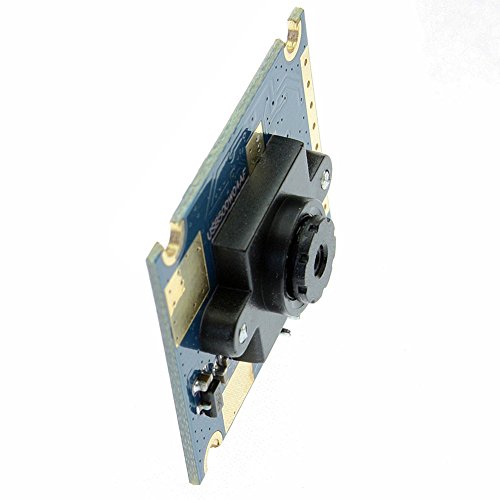

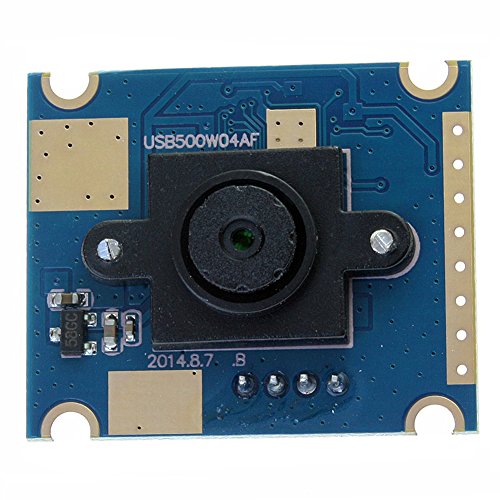

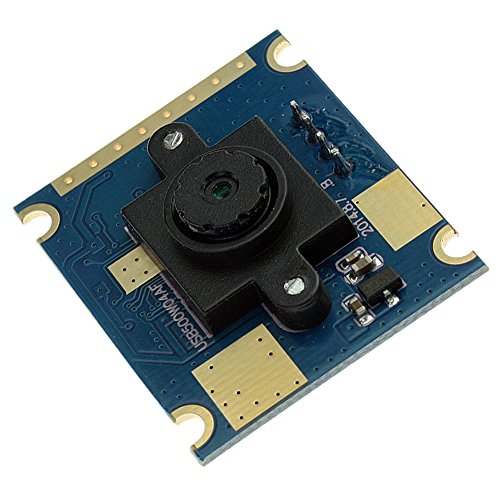

1) 60 degree fixed megapixel lens usb camera
2) Super small outline and thin profile for embedded
3) Auto explsure and auto white balance
4) 5Megapixel Autofous USB Webcam up to 2592x1944 high HD resolution
5) compact industrial camera solution for any Android/Linux/Mac/Windows PC with USB ports
Specification
Binding : Electronics
Brand : ELP
EAN : 0711978711828
HardwarePlatform : PC
Label : ailipu Technology Co.Ltd
Manufacturer : ailipu Technology Co.Ltd
Model : ELP-USB500W04AF-L60
OperatingSystem : Linux
PackageDimensions_Weight : 0.15 pounds
PackageDimensions : L:4.40 X W:3.60 X H:2.80
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : ailipu Technology Co.Ltd
Studio : ailipu Technology Co.Ltd
Title : ELP 5mp Usb2.0 60 Degree Fixed Megapixel Lens Usb Camera Module for Windows Android Linux Laptop Pc.
