Specification
Brand : Respicefinem
BulletPoint1 : Adopt plug type, convenient and practical, no noise output, engineering rod
BulletPoint2 : Linear Position Potentiometer, 0 100 Given Input Voltage: High Compatibility, Potentiometer Principle, 0 100 Given Input Voltage Changes With Displacement
BulletPoint3 : Convenient And Practical The Plug Type It Easy To Use, With No Noise Output And Aengineering Rod
BulletPoint4 : Ip67: Adopted The Highest Ip67, Has Service Life
BulletPoint5 : Highest Ip67 The Highest Ip67, Good Effect
Color : As Shown
ExternallyAssignedProductIdentifier : 7605904830420
IncludedComponents : No

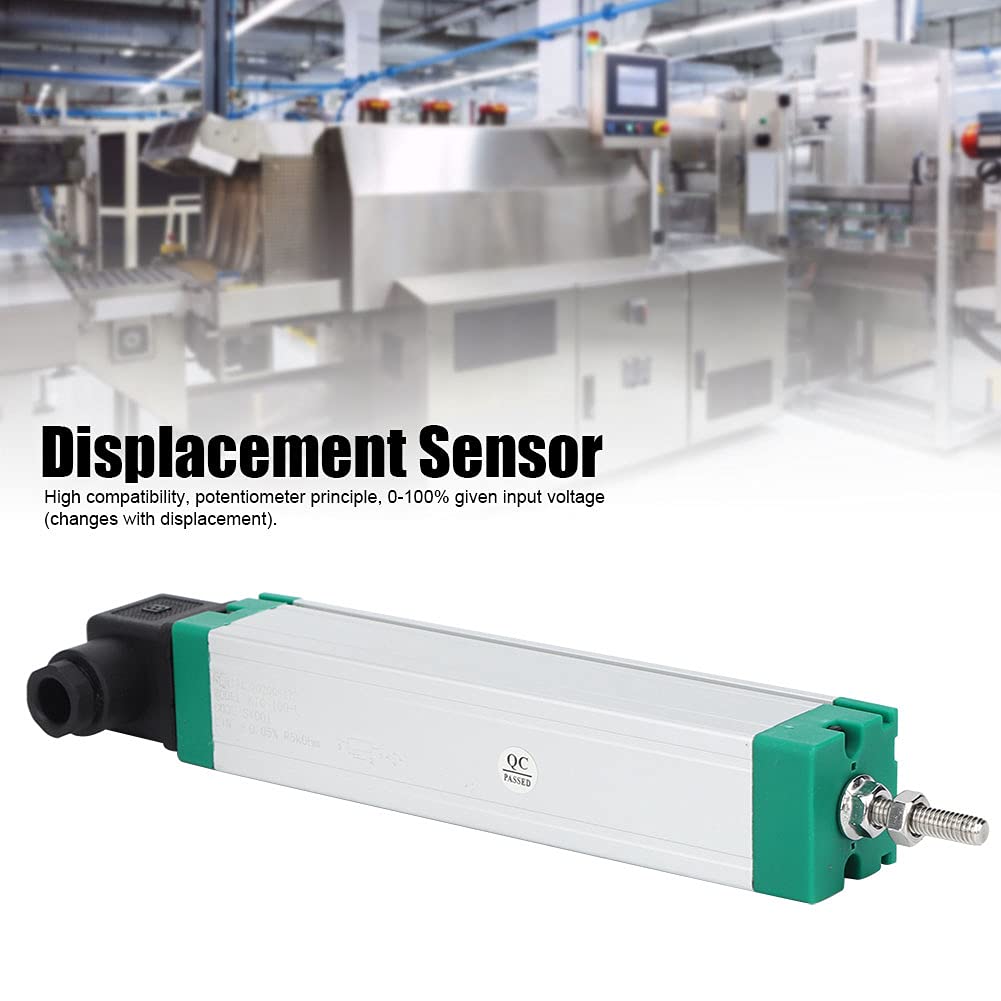

ItemName : Respicefinem I Injection Molding Machine Electronic Ruler Pull Rod Type Displacement Sensor Transducerktc 300 (Look at IsvniarX-11)
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 31 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ultrasonic-proximity-sensors
Manufacturer : Respicefinem
Material : PCB
MeasurementAccuracy : 0.1mm
ModelName : BRRNOOzrmga4q7ic
ModelNumber : Respicefinemtuxiwg6she-11
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Respicefinemtuxiwg6she-11
ProductDescription : Item Type: Displacement Sensor
Optional : KTC-100, KTC-300
Material: Stainless steel
Electrical Stroke: Range + 3mm
Resolution / Resolution: Infinite uninterrupted analysis
Repeatability: 0.01mm
Normal Working Current Of Sliding Brush: 10μA
The Maximum Current Of The Sliding Brush When Causing The Fault: 10mA
Maximum Allowable Working Voltage: 42V
Effective Temperature Coefficient Ratio Of Output Voltage To Input Voltage: Usually 5ppm / K
Insulation (500VDC, 50Hz): 10MΩ
Insulation Strength (500VAC, 50Hz): 100μA
Shell Length (A): Range + 78.5mm
Mechanical Stroke (B): Range + 8mm
Maximum Load Of Pull Rod: 50KG
Work Force:
Horizontal direction Vertical direction10N
Vibration Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g
Shock Standard: 50g, 11ms
Operating Temperature Range: -60 ... + 150 ℃
Life: > 100 × 10 ^ 6 times
Maximum Operating Speed: 10m / S, maximum operating acceleration 10m / s²
Protection Level: Highest IP67 (DIN40500 / IEC529)

Package List：
1 x Displacement Sensor
1 x Plug
3 x Accessories
4 x Screw


ProductSiteLaunchDate : 2024-09-20T09:33:55.119Z
Size : 4.5×2.6×1.5cm
UnitCount : 1
UnspscCode : 41111600
