Specification
Brand : FIYA
BulletPoint1 : Product Name : Ultrasonic Transducer;Model No. : TCT40-16R/T;Max. Input Voltage : 20Vrms
BulletPoint2 : Sound Pressure Level : ≥117dB;Receiving Sensitivity : ≥-65dB;Operating Temperature : -20C to 70C
BulletPoint3 : Operating Relative Humidity*1 : 10-90%;Storage Temperature : -40°C~+85°C;Pin Spacing : 9mm/0.35"
BulletPoint4 : Body Size(Each) : 16 x 12mm / 0.63" x 0.47"(Dia.*T);Pin Size : 1mm x 10mm/0.04" x 0.39"(Dia.*L);Housing Material : Aluminum
BulletPoint5 : Weight : 6g;Package Content : 2 x Ultrasonic Transducer(The Transmitter and the Receiver) (Peso: 6 g
ExternallyAssignedProductIdentifier : 4552302204311
ItemName : IIVVERR 2 Pcs 16mm Dia 20Vrms 40KHz Ultrasonic Transducer Sensor Detector (2 Unids 16mm Dia 20Vrms 40KHz Detector de Sensor de Transductor Ultrasónico
ItemTypeKeyword : ultrasonic-proximity-sensors
Manufacturer : FiYa
Material : ceramic
ProductDescription : IIVVERR 2 Pcs 16mm Dia 20Vrms 40KHz Ultrasonic Transducer Sensor Detector (2 Unids 16mm Dia 20Vrms 40KHz Detector de Sensor de Transductor Ultrasónico

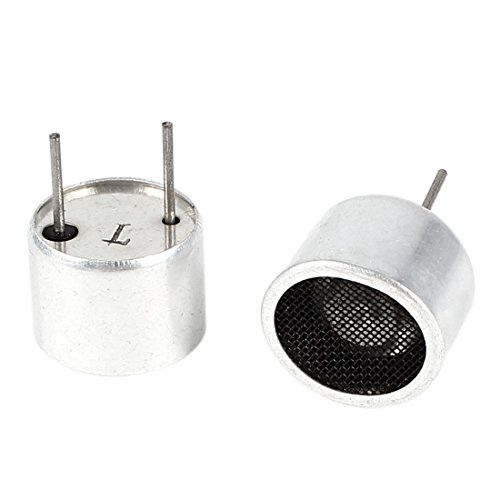

The TCT40-16R/T is matched pair ultrasonic transmitter and receiver respectively operated at 40KHz center frequency with 10mm diameter. This transducer utilizes the piezoelectric properties of engineering ceramic that provides high sound pressure and high sensitivity.
Features: high sound pressure, high sensitivity, air medium, aluminum housing.
Applications: auto switching, car obstacle avoidance, range finder, fluid level control, burglar A-larm.
Note: the bottom of the transducer is marked with T, which stands for Transmitter, R stands for Receiver.
El TCT40-16R / T es un transmisor ultrasónico compatible, operado respectivamente a una frecuencia central de 40 KHz con un diámetro de 10 mm. Este transductor utiliza las propiedades piezoeléctricas de la cerámica de ingeniería que proporciona una alta sensibilidad de alta presión de sonido. Características: alta presión de sonido, alta sensibilidad , medio, carcasa de aluminio.
Aplicaciones: conmutación, evitación de obstáculos, detector de rango, control de nivel de fluido, alarma antirrobo.
Nota: la parte inferior del transductor está marcada con una T, que para el transmisor, R para el receptor. < br>
ProductSiteLaunchDate : 2018-12-08T07:31:01.191Z
UnitCount : 1
