Specification
Brand : iDili
BulletPoint1 : CB-001-V2 Ultrasonic ranging small angle case waterproof module, This Designed by non-contact ultrasonic detection technology.
BulletPoint2 : Products In 1cm To 600cm Within the scope of, To be able The accurate detection Out of the plane object The Distance, And in 1cm To 230cm Within the scope of, To be able Accurate measurement People.
BulletPoint3 : This product（DJL-CB-001-V2）Can match a variety of ultrasonic ranging modules with serial port output.
BulletPoint4 : Customizable practical measurement range（With digital display）And relay normally open and dual output.
BulletPoint5 : TEMPERATURE COMPENSATION: The main chip of ultrasonic sensor adopt industrial single chip microcomputer, digital temperature compensation, ultra wide voltage input voltage regulation and other dozens of related ASIC
IncludedComponents : other

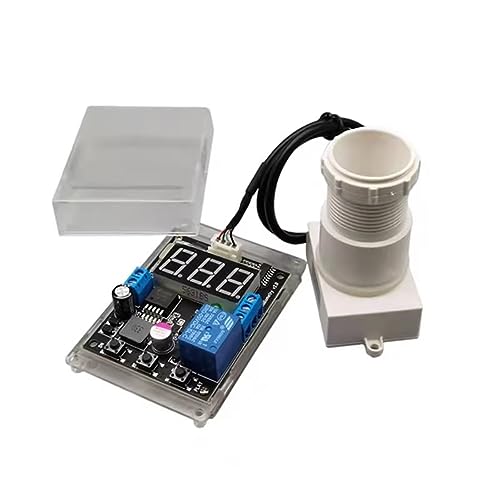

ItemName : iDili Small-Angle Ultrasonic Ranging Module with Integrated Sensor for Display Distance Adjustable Distance Relay Output (24V, 1)
ItemPackageDimensions_Height : 17 centimeters
ItemPackageDimensions_Length : 28 centimeters
ItemPackageDimensions_Width : 22 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ultrasonic-proximity-sensors
Manufacturer : iDili
Material : Copper
ModelName : YYQTGGhtpng9e4vw-11
ModelNumber : YYQTGGhtpng9e4vw-11
NumberOfItems : 1
PartNumber : CB-001-V2
ProductDescription : Small-Angle Ultrasonic Ranging Module with Integrated Sensor for Display Distance Adjustable Distance Relay Output

Description:

CB-001-V2 Ultrasonic ranging small angle case waterproof module, This Designed by non-contact ultrasonic detection technology.
Products In 1cm To 600cm Within the scope of, To be able The accurate detection Out of the plane object The Distance, And in 1cm To 230cm Within the scope of, To be able Accurate measurement People.
This product（DJL-CB-001-V2）Can match a variety of ultrasonic ranging modules with serial port output.
Customizable practical measurement range（With digital display）And relay normally open and dual output.

Application:

1.Level range.
2.Obstacle avoidance,Automatic control.
3.The object in near-proximity,There is a perceived.
4.Traffic control.
5.Security,Industrial control.
6.Artificial intelligence,Teaching and Research.

Instructions for Use:

This product can customize the trigger range of relay，For example, ultrasonic module detection range0- 600cm，The actual application scenarios0 -200cmTrigger relay output，Other measured values not trigger，It can be freely set through the button of this product.

The specific operation is as follows.
The first step，Long press“To set up key-”On LED blinking display，To set the upper limit mode，The value displayed by the test digital tube is the upper limit of relay trigger.
The second step，Through“+”And“-”Key to modify the setting value，Short press the default increase/Reduce1cm，Long press for continuous increase or decrease.
The third step，Press the setting button after confirming the distance.Note，The upper limit value must be greater than the blind zone value of the matching module.，And less than the maximum range of the ranging module

Package Included:

1 x Ultrasonic Ranging Module
ProductSiteLaunchDate : 2023-08-23T08:12:39.485Z
Size : 24V
UnitCount : 1
