Description
Traditional hand washing or washing machine cleaning is difficult to penetrate the gap to achieve all-around cleaning. This ultrasonic cleaner is your ideal choice. It is mainly composed of the ultrasonic generator, line controller, transducer, and cleaning tank, and is an expert in cleaning, maintenance, oxidation, extraction, cavitation, and other aspects, which enables it to meet the different needs of users. This machine is very suitable for home or professional use.
Details
Top Lid: It can well seal the machine to reduce heat loss and noise. Meanwhile, the handle on the top allows you to easily pick up the lid.
Recessed Handles: The recessed handles on both sides make it convenient to move the machine.
Support Feet: The four rubber support feet at the bottom are abrasion-resistant, non-slip, and can ensure the stable placement of the product.
Lowest Water Line: The lowest water line inside the tank can help you add enough water.
Application
It is suitable for cleaning jewelry, watches, glasses, tableware, dental equipment, milk bottles, circuit boards, hardware parts, razors, laboratory equipment, etc. It can be used to clean the long holes, cracks, and shields of the workpiece and is mainly used in the laboratory, food industry, biology industry, agriculture industry, or daily necessities industry.
Specification
Model: TH-SPQXJ-100A
Color: Silver
Material: 201&304 Stainless Steel, Rubber
Shape: Rectangular
Style: Modern
Tank Thickness: 1.1mm/0.04inch
Surface Treatment: Electrolytic Process, Integrated Stamping, Stainless Steel Embossing Process
Voltage: AC100-120V, 60Hz
Ultrasonic Frequency: 28/40KHz
Ultrasonic Power: 600W
Heating Power: 800W
Power Type: Plug-in
Plug: American Standard
Number of Transducers: 8
Tank Capacity: 30L/7.9gal
Heating Temperature: 0-80℃/0-176℉
Working Time: 0-30min
Noise: About 100dB
Screen: LED Display Screen, Touch Screen
Mounting Type: Desktop Placement, Freestanding
Net Weight: 13.5kg/29.7lbs
Gross Weight: 14.4kg/31lbs
Package Size: 63*43*40cm/24*16*15inch

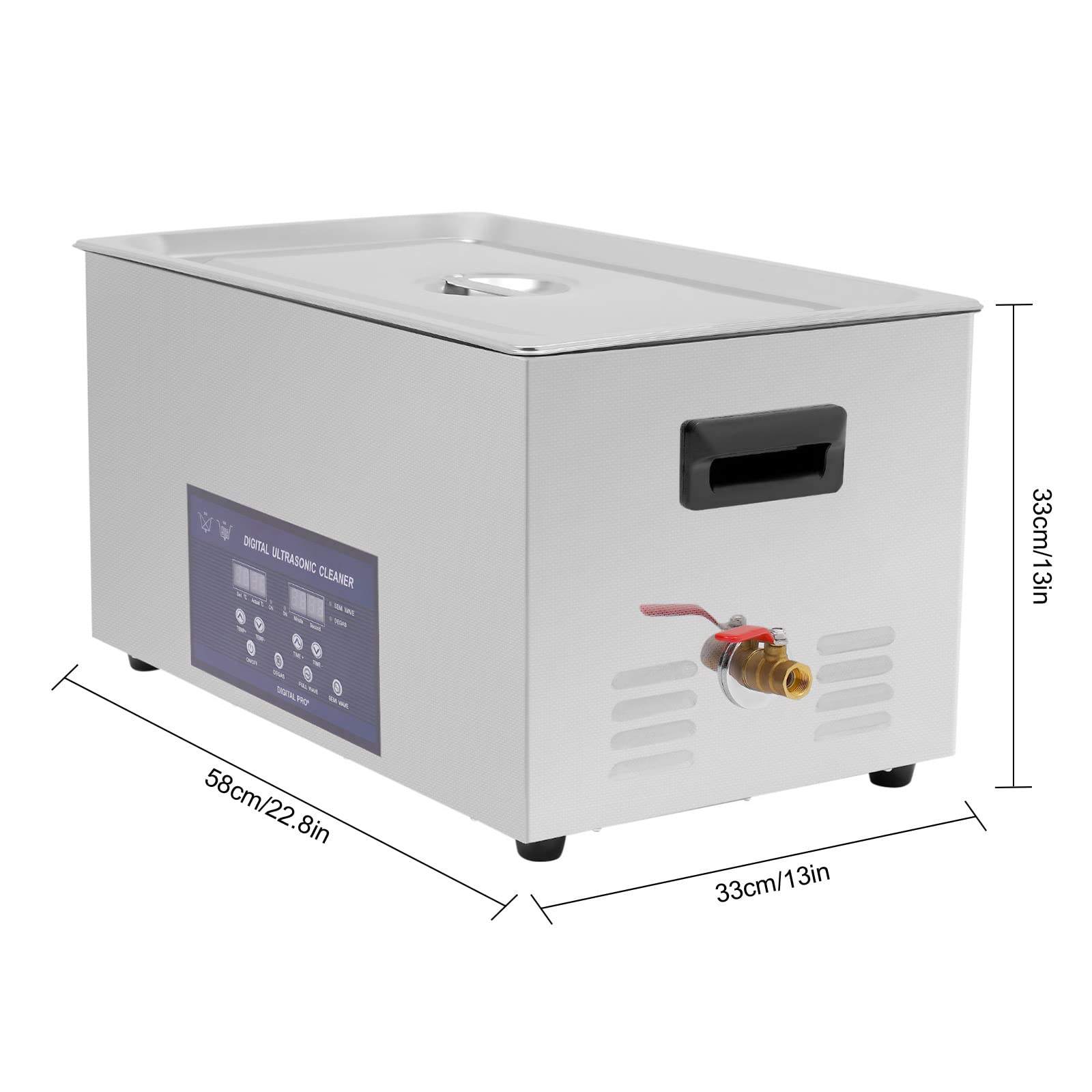

Product Size: 33*58*33cm/13*22.8*13inch
Principle
It outputs the ultrasonic frequency oscillation electrical signal, which is converted into high-frequency mechanical vibration through the transducer. This vibration is introduced into the cleaning fluid and produces an ultrasonic cavitation effect. It produces tens of thousands of tiny bubbles, which are formed at negative pressure, and the positive pressure zone closes rapidly. The bubble closes to form an instantaneous high pressure of thousands of atmospheres. The continuous instantaneous high pressure is like a series of small "explosions" impacting the surface gap of the object, peeling off all kinds of dirt stuck in the surface gap of the object, thus realizing thorough cleaning.
Package Included
1* Ultrasonic Cleaner
1* Cleaning Basket
1* Ball-shaped Basket
1* Lid
1* Hose
1* Power Cord
1* English Manual
Notes
1. Since the machine's bottom is curved, the actual capacity may be smaller than 7.9 gal.
2. It is recommended to use a cleaning temperature of 104-140 ℉ to improve cleaning performance.
3. Please note that the machine can only work under 110V voltage with good grounding.
4. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
