Product Information
Editorial Review

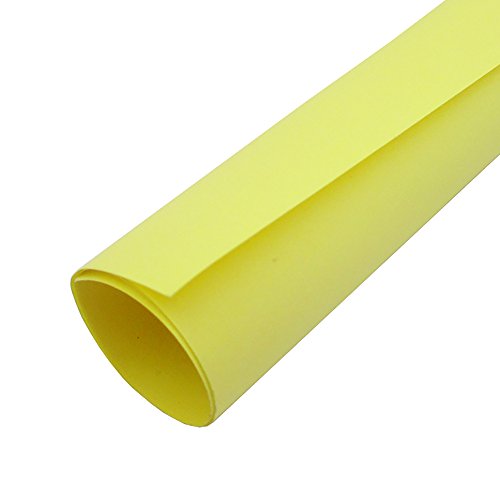

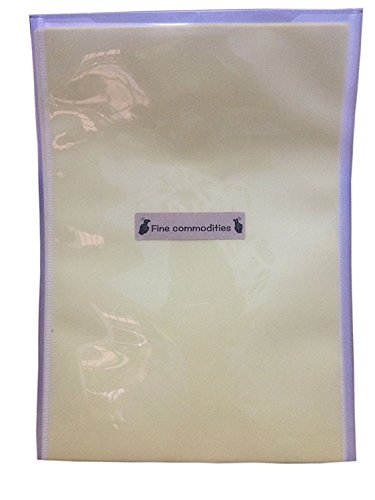

Product: TONER TRANSFER PAPER Specifications: 10 sheets Color: Yellow Packing: File bag. Ensure paper integrity Note: This DIY tool is a very easy to use a product. Please do not because of lack of experience, production failure, to blame the performance of paper. Random to the poor assessment of the customer, please go to other businesses to buy Printed circuit board production, electronic enthusiasts often compare headache one thing, many electronics enthusiasts in order to produce a printed circuit board, often described using paint board, Daoke, stickers, paste and other amateur production methods, speed slow. Thermal transfer method produced circuit boards, is to draw a good board graphics, laser printer to print in thermal transfer paper, transfer paper and then covered in Bonded Copper, after heating, the melted toner completely adsorbed in deposited on copper, etc. after cooling tear transfer paper, you can see the graphics board has been transferred onto a copper-clad, black anti-corrosion layer, that is what we want PCB diagram, and finally corrosion, and that we want to obtain the PCB board. Thermal transfer board should pay attention to the following points: 1: Do not make the iron overheating or too cold, the best temperature is between 140 to 170, in this temperature range, the best transfer of plastic toner characteristics. 2: to wait for some lower temperature and then transfer paper peeled down, slowly exposing, and found no transfer of good parts, then cover, once again heating and heating for heat transfer. 3: some really problematic parts (such as broken) Please use oil-based carbon pen or nail polish, paint what remedial, but this is not a lot of this situation.
Features

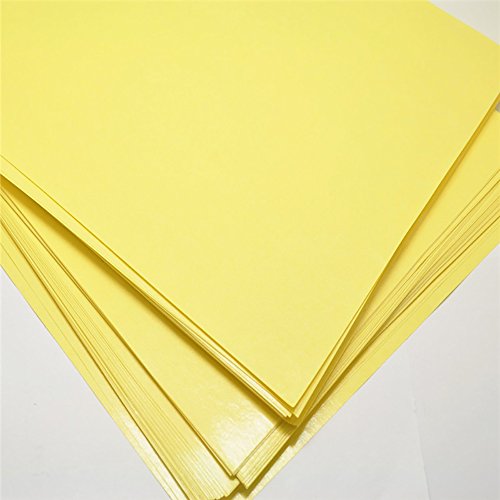

1) Size: A4 / Color: Yellow / Quantity: 10(Please do not because of lack of experience, blame the thickness of the paper.Very sad)

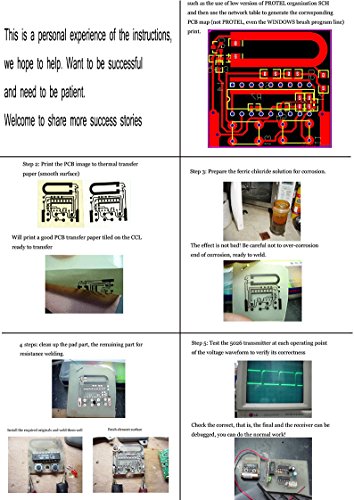

2) 1 with a laser printer to print circuit board wiring diagram of the heat transfer paper surface(Note: can only be printed with a laser printer can not use inkjet printer!)

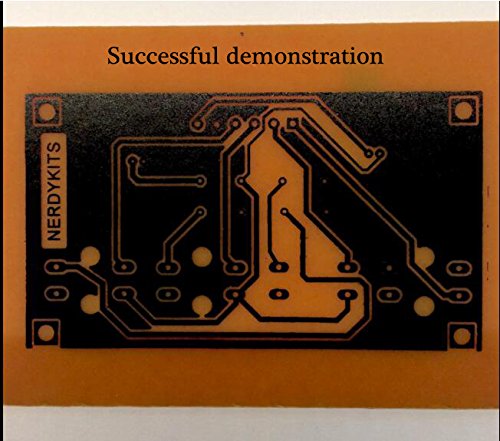

3) 2 with a laminator adjusted to between 150-180 degrees Celsius, the heat transfer paper printed with a circuit diagram deposited in the copper-clad side for transfer; the system can also be used in place of iron plate machine, hand transfer

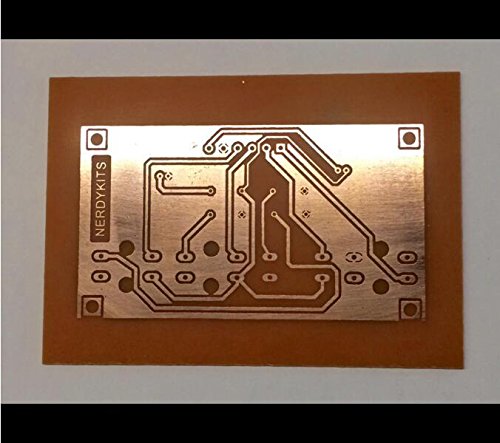

4) 3 After printing remove the transfer paper, CCL will be etched into the ferric chloride solution
5) 4 Finally, cleaning with gasoline toner board, sanding paper or water in the water to flush out carbon(For more success stories please check customer reviews)
Specification
Binding : Office Product
Brand : Fine commodities
Color : Yellow
EAN : 0758910433646
Label : Fine commodities
Manufacturer : Fine commodities
Model : 6285693
PackageDimensions_Weight : 0.20 pounds
PackageDimensions : L:11.80 X W:8.00 X H:0.20
ProductGroup : Toy
ProductTypeName : TOYS_AND_GAMES
Publisher : Fine commodities
Size : 210mm297mm
Studio : Fine commodities
Title : 10 PCB Circuit Board Thermal Transfer Paper A4 size Transfer Paper DIY Circuit Board Special Paper
