Specification
Brand : ZIZEV
BulletPoint1 : , Alloy: Made of and alloy material, this is strong and sturdy, wear resistant and a long life span.
BulletPoint2 : Wide Applicability: Various of rotational torsion testing, suitable for torsion measurement in various rotating scenarios, with a minimum detectable of 0.00001N.
BulletPoint3 : Friendly Interactive : The of the LCD screen allows users to clearly see the measurement data. The is friendly and the is simple, providing users with a comfortable experience.
BulletPoint4 : Easy To Use: , no required, no vulnerable components, no service life limit, please rest assured of use.
BulletPoint5 : Stable Performance: outputs, without the need for external circuits, can directly output voltage and current, RS485 communication connection to PLC, or torsion dedicated instruments.
Color : Multicolor
ExternallyAssignedProductIdentifier : 7618032491845

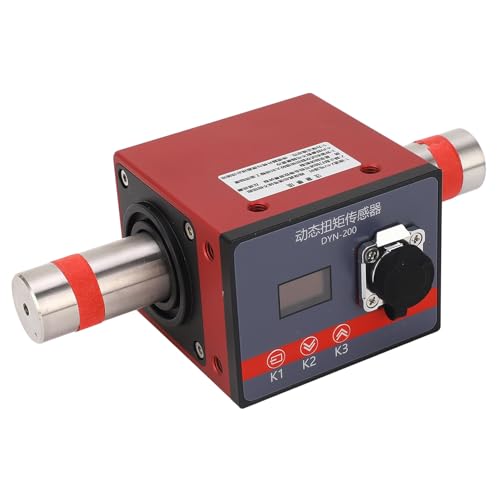

ItemName : ZIZEV Experience Torque Testing with Dynamic Torsion Sensor DC24V - LCD Display DYN 200 200N - for Torque Tester Torsion Applications
ItemPackageDimensions_Height : 11 centimeters
ItemPackageDimensions_Length : 28 centimeters
ItemPackageDimensions_Width : 24 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : torque-gauges
Manufacturer : ZIZEV
Material : Stainless Steel
Material1 : Aluminum
Material2 : Stainless Steel
ModelName : ZIZEVxp2dmvnfes
ModelNumber : ZIZEVxp2dmvnfes
NumberOfItems : 1
PartNumber : ZIZEVxp2dmvnfes
ProductDescription : 1. WIDE APPLICABILITY: Various types of rotational torsion testing, suitable for torsion measurement in various rotating scenarios, with a minimum detectable value of 0.00001N. m.
2. STABLE PERFORMANCE: Multiple outputs, without the need for external circuits, can directly output standard voltage and current, RS485 communication connection to PLC, or torsion dedicated instruments.
3. EASY TO USE: Non , no maintenance required, no vulnerable components, no service life limit, please rest assured of use.
4. STAINLESS STEEL, ALUMINUM ALLOY MATERIAL: Made of premium stainless steel and aluminum alloy material, this sensor is strong and sturdy, wear resistant and has a long life span.
5. EASY INSTALLATION: Comes with a compact size, this torsion sensor can be quickly installed for convenient use, choose with confidence!

Specification:

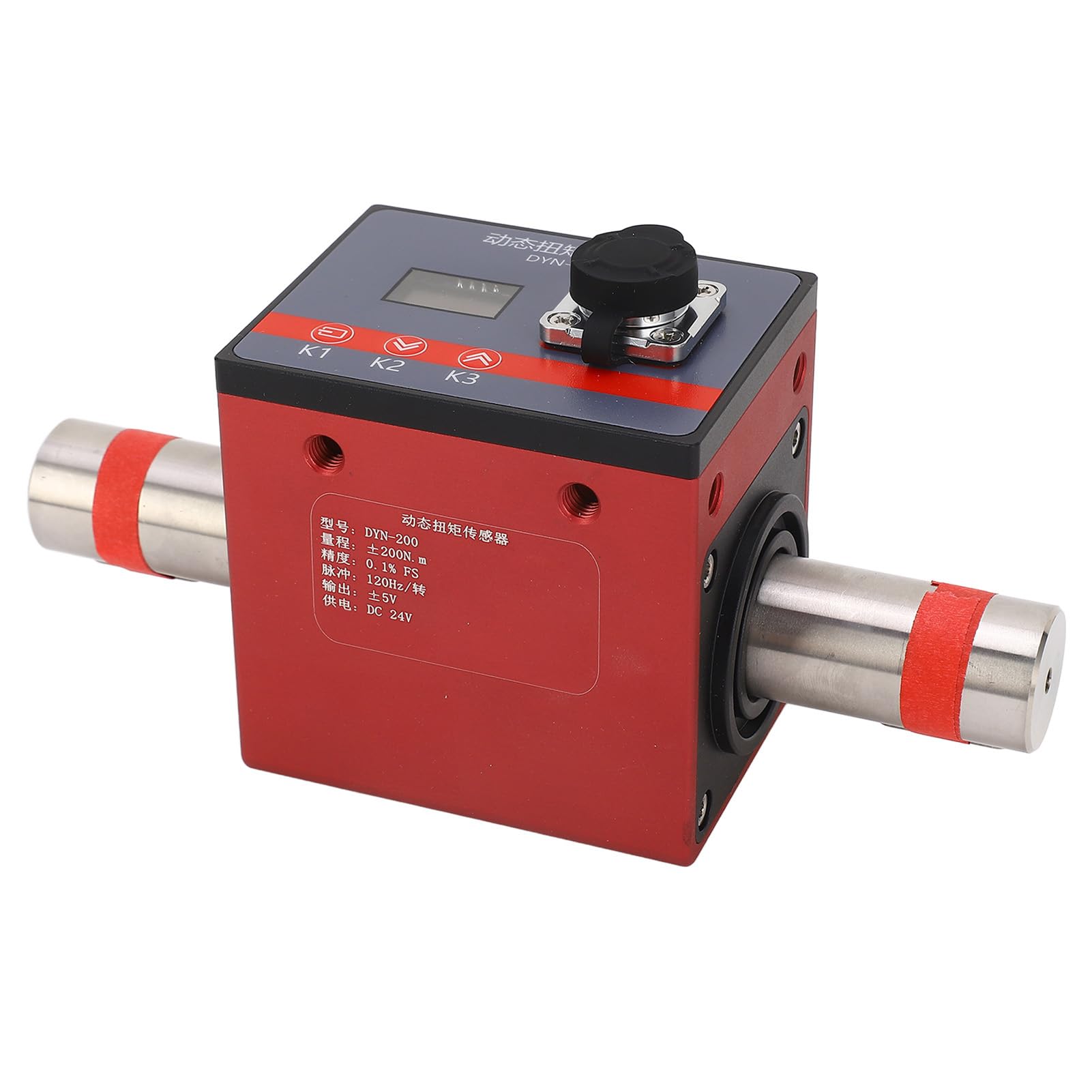

Item Type: Dynamic Torsion Sensor
Mode: DYN 200 (200N. M)
Material: Stainless Steel, Aluminum Alloy
Power Input: DC24V
Consumption Current: Below 200mA
Torsion Output: ± 5VDC
Speed Output: 120HZ/rpm
Response Performance: 1kHz
Load Resistance: 2k ?
Delay: 0.6ms (50% response)
Permissible Overload: 200% FS
Operating Temperature Range: -10 to +50 ?
Non Linearity: 0.1% FS
Repeatability: 0.03% FS
Lag: 0.03%
Temperature Effect of 0 Point: 0.01% FS/C
Output Temperature Influence: 0.01% FS/C
Rated Speed: 8000rpm
Maximum Rotation Speed: 15000rpm
Maximum Torsion Angle: 2.60 x 10rad (0.149 °)
Inertia Moment: 0.38kgcm
Natural Frequency of Vibration (rotor part): 19.4kHz
Torsion Constant: 3.85 x 10Nm/rad

How to Use:
Install and use!

packing list:
1 x Sensor
1 x Cable


ProductSiteLaunchDate : 2024-02-04T17:29:22.593Z
Size : TQA2-135
UnitCount : 1
