Specification
Brand : Tegara
BulletPoint : WELD ON HOLDER FOR 1.00 SHANK AUGER TOOTH
BulletPoint1 : Head Diameter D1: 0.903", Head Angle: 45°
BulletPoint2 : Machine Taper Size: CAT50, Drawbar Thread Size: 1-8 UNC
BulletPoint3 : Neck Diameter D2: 0.668", Hole D3: 0.39"
BulletPoint4 : Overall Length: 3.35", Pilot D4: 1.026"
BulletPoint5 : Shoulder to Head L1: 1.384", Shoulder to End L2: 1.778"
CutType1 : Rounded
CutType2 : Taper
ExteriorFinish : Nickel
ExternallyAssignedProductIdentifier : 1180371500008
GpsrSafetyAttestation : 1
IncludedComponents : Knob

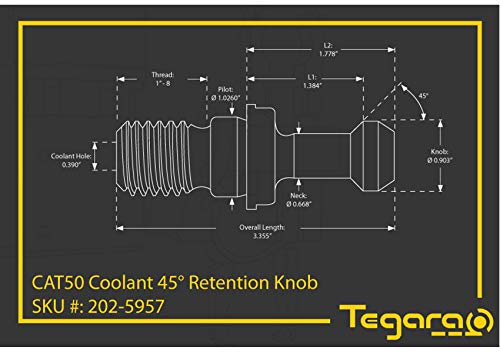

ItemName : Tegara CAT50 45 Coolant Thru Pull Stud Retention Knob for Haas 202-5957-5 P[
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 7 inches
ItemPackageDimensions_Width : 6 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : tool-holders
Manufacturer : Shars Tool
Material : Alloy Steel
ModelName : 38640-MOQ3
ModelNumber : 202-7126G-2
NumberOfBoxes : 1
NumberOfFlutes : 2
NumberOfItems : 1
PartNumber : 202-5957-5
ProductDescription : We constantly evaluate our manufacturing process and trying to optimize the cycle time while maintain the top notch quality of our retention knob. Automation in manufacturing process has been a game changer in our industry and we are able to make things faster and more accurate. By integrating the Marposs Unimarr measurement head into the retention knob's grinding process we are able to monitor key dimension on EACH retention knob, and the productivity of a CNC grinder is maximized with the robotic arm to automatically load and unload retention knob stock into the CNC grinder. We are passionately chasing speed and accuracy and that is how we can maintain our competitive edge. Concentricity is inspected with a Mahr Millimess 1003 Dial Comparator which has a 1 micron (um) graduation and 0.5 micron (um) repeatability to ensure each batch production of the retention knob is true to the spindle center line. A critical dimension on every retention knob is the height of the loading contact point and the height of un-loading contact point. When this two dimensions are not within tolerance, there could lead to improper engagement with main spindle and even cause severe damage to the retention knob's rigidity. This two dimensions are inspected on an optical tool presetter that is made in Italy by a world-renowned manufacture and measurement are monitored in micron (um).Made from SNCM420 (SAE 4320) with high nickel alloy content with heat treat to RC 56-58 Each retention knob is tested for magnetic particles individually to ensure that it is free from any defeats High quality black oxide finish to ensure long enduring tool life. Fully ground on all critical surfaces including a pilot under the flange of retention knob for full contact between tool holder's taper end and retention knob. Precision finished on the bottom of the flange to improve fitting with the bottom nose of the taper on the tool holder.
ProductSiteLaunchDate : 2019-08-30T07:00:00.000Z
Size : BT40
Style : Knobs
SupplierDeclaredDgHzRegulation : not_applicable
SurfaceRecommendation1 : Aluminum
SurfaceRecommendation10 : Fiberglass
SurfaceRecommendation11 : Brick
SurfaceRecommendation12 : Tile
SurfaceRecommendation13 : Masonry
SurfaceRecommendation14 : Mirror
SurfaceRecommendation15 : Concrete
SurfaceRecommendation16 : Stone
SurfaceRecommendation17 : Cast Iron
SurfaceRecommendation18 : Iron
SurfaceRecommendation19 : Brass
SurfaceRecommendation2 : Metal
SurfaceRecommendation20 : Ceramic
SurfaceRecommendation21 : Engineered Wood
SurfaceRecommendation22 : Polyvinyl Chloride
SurfaceRecommendation23 : Acrylonitrile Butadiene Styrene
SurfaceRecommendation24 : Nylon
SurfaceRecommendation25 : Porcelain
SurfaceRecommendation26 : Glass
SurfaceRecommendation27 : Pine
SurfaceRecommendation3 : Plastic
SurfaceRecommendation4 : Stainless Steel
SurfaceRecommendation5 : Wood
SurfaceRecommendation6 : Copper
SurfaceRecommendation7 : Alloy Steel
SurfaceRecommendation8 : Soil
SurfaceRecommendation9 : Acrylic
ToleranceHeld : Precision
UnitCount : 1
UnspscCode : 27112800
