Specification
Brand : Tegara
BulletPoint : CAT50 tool holders locking device #LD-CAT50
BulletPoint1 : Head Diameter D1: 0.589", Head Angle: 90°
BulletPoint2 : Machine Taper Size: CAT40, Drawbar Thread Size: 5/8x11 UNC
BulletPoint3 : Neck Diameter D2: 0.392"
BulletPoint4 : Overall Length: 2.25", Coolant Hole: No
BulletPoint5 : Shoulder to Head L1: 0.988", Shoulder to End L2: 1.264"
BulletPoint6 : TIR (In.): 0.0002
BulletPoint7 : Drawbar Thread Size: M12x1.75
BulletPoint8 : Stop Screw Thread Size: 5/8-18 UNF
BulletPoint9 : Nose Diameter: 1.70
Capacity : 2.75 inches
Color : Silver
CompatibleDevices1 : Drilling Machine
CompatibleDevices2 : Lathe
CompatibleDevices3 : Milling Machine
CutType : Taper
ExteriorFinish : Nickel
ExternallyAssignedProductIdentifier1 : 769053116228
ExternallyAssignedProductIdentifier2 : 0769053116228
FinishType : Powder Coated
IncludedComponents : Knob

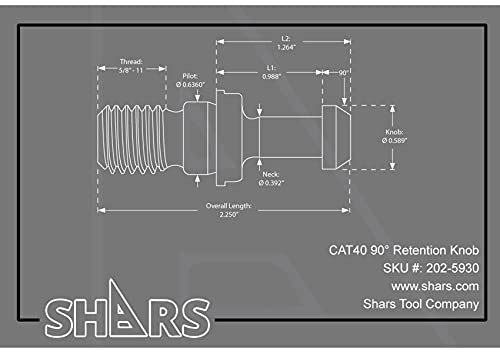

ItemName : Tegara CAT40 90 Pull Stud Retention Knob for Mori Seiki 202-5930-5 P[
ItemPackageDimensions_Height : 18.6944 centimeters
ItemPackageDimensions_Length : 3.81 centimeters
ItemPackageDimensions_Width : 9.8044 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : tool-holders
LockType : Manual
Manufacturer : Shars Tool
Material : Alloy Steel
MetalType : Alloy Steel
ModelName : 3/4 ER16 70 Collet Chuck
ModelNumber : 202-5930-5
NumberOfBoxes : 1
NumberOfFlutes : 2
NumberOfItems : 100
PackageLevel : unit
PartNumber : 202-5930-5
PowerSourceType : Hand Powered
ProductDescription : We constantly evaluate our manufacturing process and trying to optimize the cycle time while maintain the top notch quality of our retention knob. Automation in manufacturing process has been a game changer in our industry and we are able to make things faster and more accurate. By integrating the Marposs Unimarr measurement head into the retention knob's grinding process we are able to monitor key dimension on EACH retention knob, and the productivity of a CNC grinder is maximized with the robotic arm to automatically load and unload retention knob stock into the CNC grinder. We are passionately chasing speed and accuracy and that is how we can maintain our competitive edge. Concentricity is inspected with a Mahr Millimess 1003 Dial Comparator which has a 1 micron (um) graduation and 0.5 micron (um) repeatability to ensure each batch production of the retention knob is true to the spindle center line. A critical dimension on every retention knob is the height of the loading contact point and the height of un-loading contact point. When this two dimensions are not within tolerance, there could lead to improper engagement with main spindle and even cause severe damage to the retention knob's rigidity. This two dimensions are inspected on an optical tool presetter that is made in Italy by a world-renowned manufacture and measurement are monitored in micron (um).Made from SNCM420 (SAE 4320) with high nickel alloy content with heat treat to RC 56-58 Each retention knob is tested for magnetic particles individually to ensure that it is free from any defeats High quality black oxide finish to ensure long enduring tool life. Fully ground on all critical surfaces including a pilot under the flange of retention knob for full contact between tool holder's taper end and retention knob. Precision finished on the bottom of the flange to improve fitting with the bottom nose of the taper on the tool holder.
ProductSiteLaunchDate : 2019-08-30T07:00:00.000Z
Size : 4-Inch
Style : Knobs
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
ToleranceHeld : Precision
UnitCount : 1
UnspscCode : 31162801
