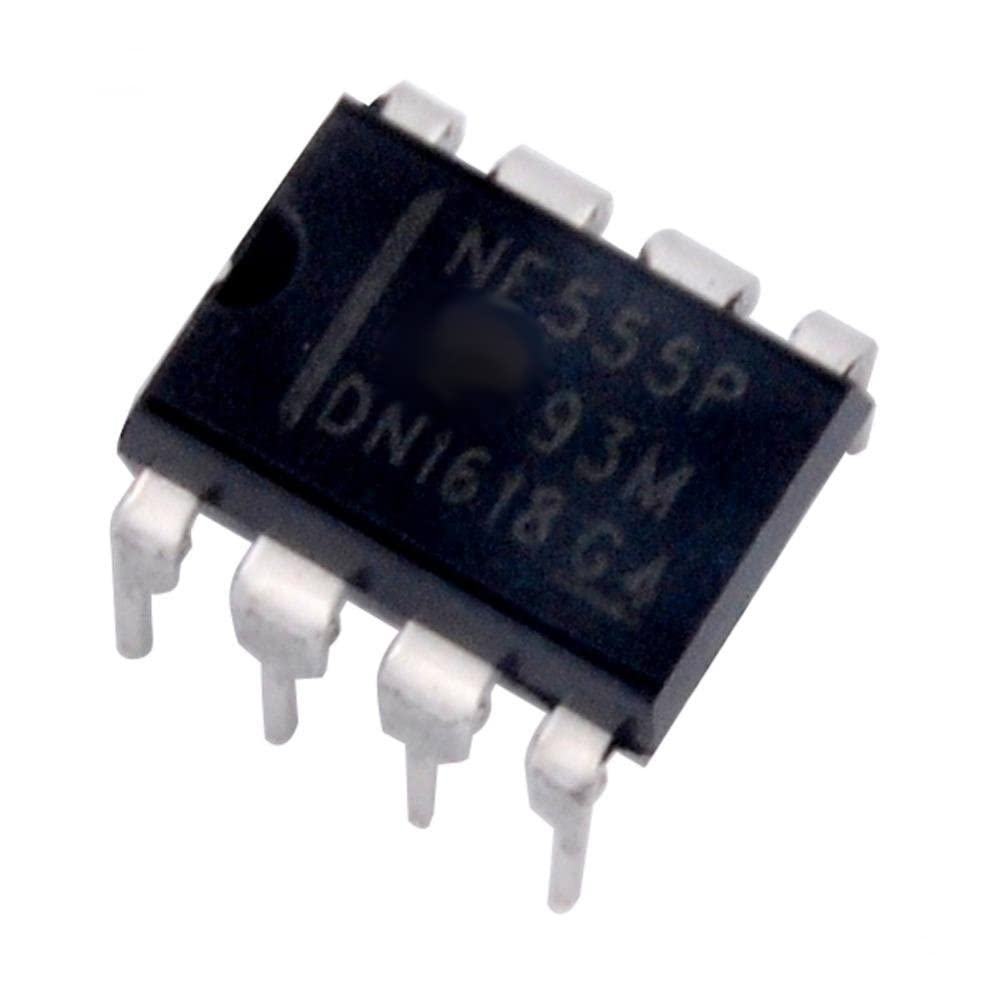

NE555P NE555 DIP-8 High Precision Oscillator Timer IC 555 10/20/50 Piece Packs (50)

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 3200/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
AgeRangeDescription : adult
Brand : Envistia
BulletPoint : 5 Pcs Triode (BJT) 2 NPN 45V 100mA SOT-363 BCM847BS,115
BulletPoint1 : These devices are precision timing circuits capable of producing accurate time delays or oscillation
BulletPoint2 : Timing From Microseconds to Hours
BulletPoint3 : Astable or Monostable Operation
BulletPoint4 : TTL-Compatible Output Can Sink or Source Up to 200 mA
BulletPoint5 : Adjustable Duty Cycle
Color : Fp40r12kt3
ExternallyAssignedProductIdentifier : 7320505254306
ExternallyAssignedProductIdentifier1 : 0732387204824
ExternallyAssignedProductIdentifier2 : 732387204824
ItemName : NE555P NE555 DIP-8 High Precision Oscillator Timer IC 555 10/20/50 Piece Packs (50)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters

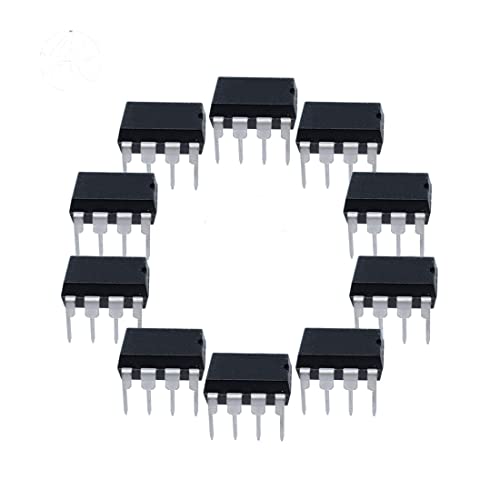

ItemPackageQuantity : 50
ItemTypeKeyword : timing-integrated-circuits
Manufacturer : Generic
Material : copper
ModelName : HRYBTCB
ModelNumber : HRYBTCB
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : NE555P
ProductDescription :

These NE555 timing/oscillator ICs are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors, and a single external capacitor.

The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by the use of the control voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. The reset (RESET) input can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset, and the output goes low.

When the output is low, a low-impedance path is provided between discharge (DISCH) and ground. The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels are compatible with TTL inputs.

The manufacturer is TI or an equivalent, parts are guaranteed to meet TI NE555P specifications.

Features:

  • Timing From Microseconds to Hours
  • Astable or Monostable Operation
  • Adjustable Duty Cycle
  • TTL-Compatible Output Can Sink or Source Up to 200 mA
  • 8 Pin DIP-8 Packages

ProductSiteLaunchDate : 2022-02-06T14:57:17.818Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 32101600
