Specification
Brand : awolsrgiop
BulletPoint1 : 【High Quality Materials】This soldered water dispenser is made of environmentally friendly lead-free copper material, which has high strength and corrosion resistance, avoiding limescale due to long-term use. Practical tank: This welding water dispenser is convenient and practical, with the advantages of light weight and small size. It is easy to move.
BulletPoint2 : 【High Temperature Resistant】The product is moulded in one piece with high temperature resistant material, no water leakage will occur. Visible window: Transparent water level detection window allows you to know the water level changes at any time, convenient for your use. Thickened copper pipe: The thicker copper pipe setting makes the cooling capacity significantly higher than similar products.
BulletPoint3 : 【Wind Tunnel Cooling Design】The unique wind tunnel greatly improves the cooling efficiency, effectively extending the service life of the machine. Guarantee high quality: The product has passed the strict EMC test of authoritative organisations, and meets the standard in terms of conducted interference, radiated emission, electrostatic discharge, and so on.
BulletPoint4 : 【Easy Installation】The welding water cooler can be installed in a short time through our instructions. Waterproof leakage switch: Waterproof leakage switch makes the working process more safe and reliable. Forward tilting water filling port: The forward tilting design makes water filling more convenient and quicker.
BulletPoint5 : 【Upgraded Plug-in】This elding water cooler uses a convenient plug-in without screws. Scope of application: The cooling water tank is suitable for ac and dc tig welding equipment, co2 welding equipment, cutting machine equipment, resistance welding equipment, plasma welding machine and spot welding machine.
IncludedComponents : 1x Welding Water Cooler, Other Installation Accessories

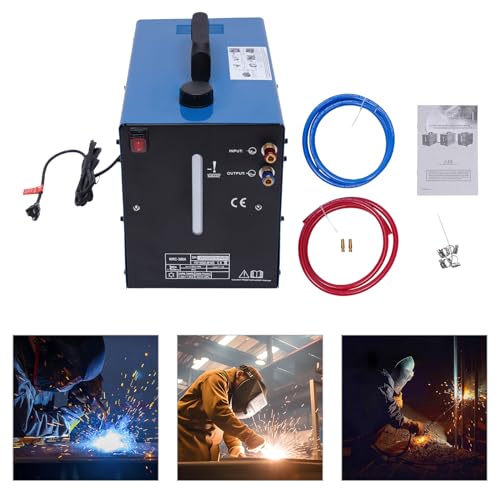

ItemName : awolsrgiop 110V TIG Cooler Welder Water Cooler 10L Tig Miller Welder Torch Water Cooling Machine Cooling Tank 1500W Forward-Tilled Filling Port Upgraded Plug-in Practical Water Tank
ItemTypeKeyword : tig-welding-equipment
Manufacturer : awolsrgiop
ModelName : TIG Welding Equipment
ModelNumber : 1
PowerSourceType : ac
ProductDescription :

Description

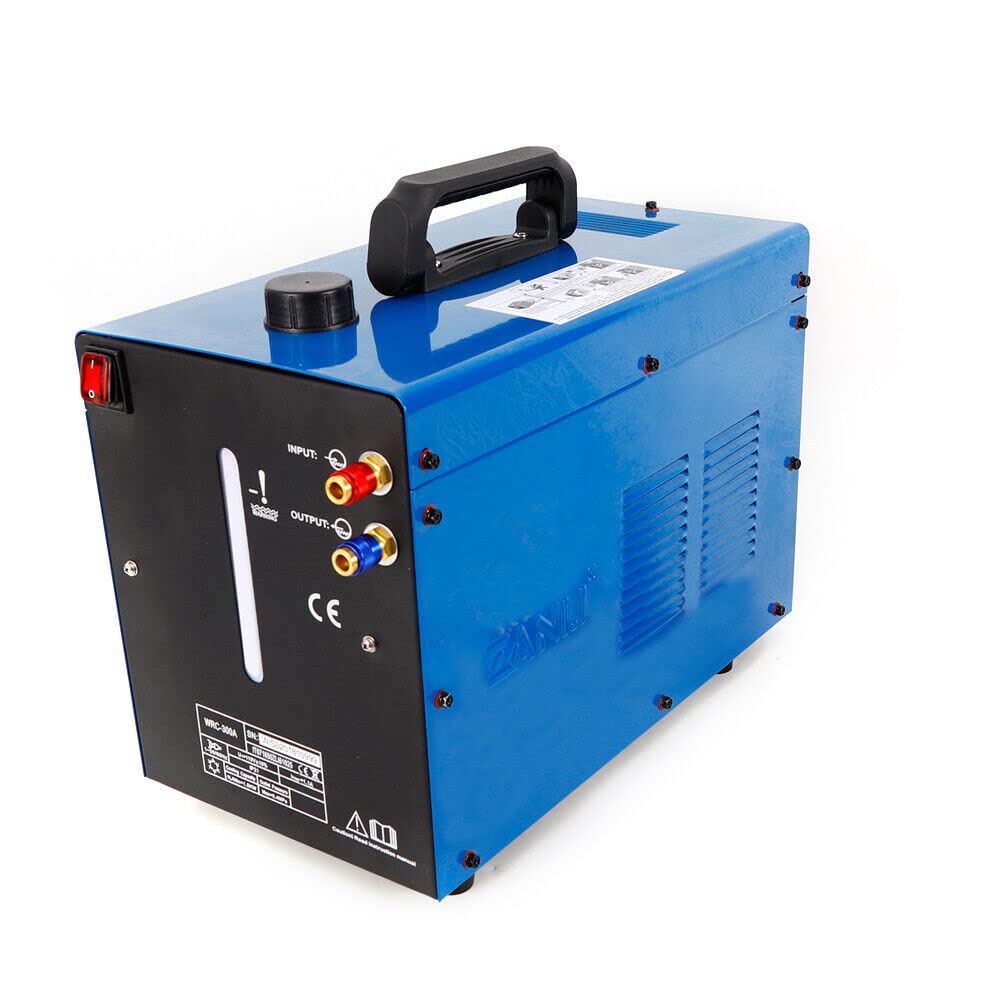

Welder Cooling Water Tank for TIG

This product has the advantages of light weight and small size, so it is easy to move. It is made of environment-friendly copper to ensure that no scale is produced even after a long period of use, and the cooling capacity is significantly improved compared with equivalent products. The details of the product, such as transparent water level inspection window, forward-tilting water filling port, wind tunnel type heat dissipation, and waterproof leakage switch, all show its good quality.



Specification

Size: 45.6×25.3×32.8cm /17.95*9.96*12.91inch

Packing Size:55×34×42cm /21.65*13.38*16.54inch

Net Weight:15.25KG

Gross Weight:16.0KG

Supply Voltage: 220V / 50Hz

Phase Number: Single Phase

Heat Dissipation: 1.5 kW (1 l/min)

Pump Power: 370W

Maximum Pressure / Stroke: 0.35 MPA/50 Hz

Water Capacity: About 10L

Operating Temperature: -20 °C -60 °C



Structural Principles

The structure of the cooling circulating water tank is reasonable in design and convenient in use.

The box is composed of a vortex with a cooling pump, a water circulation cooling device, a water circulation system, and a high-temperature-resistant plastic water storage tank. Its working principle is as follows:

The water in the storage tank is introduced by the vortex pump. After pressurization, it passes through the water circulation system and the equipment will be cooled to discharge the water with higher temperature and passes through the radiator inside the machine. The radiator is driven by a cooling fan, which can exhaust heat and reduce the water temperature. And then the water returns to the water tank and re-enter the circulation system to achieve the purpose of cooling the equipment.



Package Included

1x Welding Water Cooler

1x Water Pipe

1x Inlet Port

1x Socket

1x English Manual

Other Installation Accessories



Notes:

1.Please be aware that the cooling water tank has been specially designed for TIG welders to ensure powerful cooling.

2.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

3.Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.

4.Please allow the slight color difference caused by the shooting light.
