Specification
Brand : VTSYIQI
BulletPoint1 : ★Through Coating Ultrasonic Thickness Gauge Measuring Range : Standard measuring range: 0.8mm～300mm-Operating Principle: Standard mode: P-E (pulse-echo) method with dual-crystal probes
BulletPoint2 : ★Through Paint Ultrasonic Thickness Gauge Measuring range: 3mm～18mm (using standard probe)-Coating mode: E-E(echo-echo) method with dual-crystal probes
BulletPoint3 : ★Multi-Mode Ultrasonic Thickness Gauge Resolution: 0.1 mm or 0.001 in-0.1mm resolution, 128×64 dot-matrix LCD screen with EL backlight
BulletPoint4 : ★Ultrasonic Through Coating Thickness Gauge Material Velocity Range: 1000～9999m/s or 0.0394～0.3937in/us-Automatic V -Path Correction
BulletPoint5 : ★Through Coating ultrasonic metal thickness tester Operating Times: Up to 200 hours(without backlight)-Auto shut-off: after 5 minutes of non-use

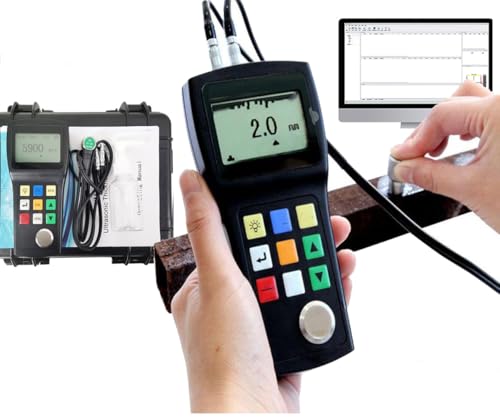

ItemName : VTSYIQI Through Painting Ultrasonic Thickness Gauge Portable Under Coating Ultrasonic Thickness Gauge with USB Interface 0.8mm - 300mm (0.03'' to 12'')/PT-08 Probe/Transducer Through Paint Coating
ItemPackageDimensions_Height : 23 centimeters
ItemPackageDimensions_Length : 28 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemTypeKeyword : thickness-gauges
Manufacturer : VTSYIQI2024122609557854122VTSYIQI
ModelNumber : VTSYIQI2024122609557854122VTSYIQI
PartNumber : VTSYIQI202412260939856324VTSYIQI
ProductDescription :
Through Paint Coatings Ultrasonic Thickness Gauge Tester Meter 0.03'' to 12'' w/PT-08 Probe Transducer P-E & E-E echo-echo

In addition to be compatible with all the functions of UM-1, It is equipped with an additional function of penetrating the coating, namely when there is paint on the surface of the object, the net thickness of the material can be directly measured without necessarily removal of the paint.
Technical Specifications
*Operating Principle: Standard mode: P-E (pulse-echo) method with dual-crystal probes; Coating mode: E-E(echo-echo) method with dual-crystal probes
*Measuring Range : Standard measuring range: 0.8mm～300mm (depending on the distribution of the probe and the measured materials); The coating mode measuring range: 3mm～18mm (using standard probe)
*Resolution: 0.1 mm or 0.001 in
*V -Path Correction:Automatic
*Repeatability: ±0.1mm
*Display: 128×64 dot-matrix LCD screen with EL backlight
*Measurement Update Rate: 4Hz in standard measurement mode
*Material Velocity Range: 1000～9999m/s or 0.0394～0.3937in/us
*Operating Language: English、Chinese
*Power Supply : Two 1.5VAA alkaline batteries（Battery not included in the package）warning with low battery voltage
*Operating Times: Up to 200 hours(without backlight) with alkaline batteires
*Auto shut-off: after 5 minutes of non-use
*Working Temperature: -10℃～+50℃，Specification to -20℃ on request
*Size : 149mm×73mm×32mm (H×W×D)
*Weight: 160g not including batteries
* Standard Package: this thickness gauge unit, Standard probe(PT-08), Carrying case, Operating mannual, Certificate of quality, Packing list
* Optional Accessaries : Rubber Sheath; Numeral probes on request; 4-step/5-step/6- step calibration block; Application software with Data transmission cable

ProductSiteLaunchDate : 2017-05-01T07:00:00.000Z
UnspscCode : 41111623
