Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : VTSYIQI
BulletPoint1 : ★ It has the function of probe zero calibration and two point calibration, and can correct the system error automatically
BulletPoint2 : ★ The remaining battery indicating function can display the remaining battery power in real time
BulletPoint3 : ★ With automatic sleep, automatic shutdown and power-saving functions
BulletPoint4 : ★ Two thickness testing modes, Pluse- Echo mode and Echo-Echo mode.
BulletPoint5 : ★ Compact, portable, high reliability, suitable for harsh operating environment, anti vibration, impact and electromagnetic interference
Color : White
IncludedComponents : MAIN HOST
ItemDisplayWeight : 0.18 pounds

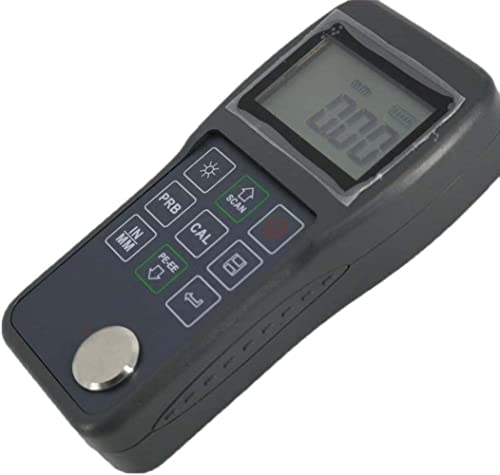

ItemName : VTSYIQI Through Coating Ultrasonic Thickness Gauge Ultrasonic Metal Thickness Gauge with USB Communication Port Range 0.65-600mm (P-E) 3-30mm (E-E) Accuracy ±（0.5% Thickness+0.01）mm
ItemPackageDimensions_Height : 25 centimeters
ItemPackageDimensions_Length : 30 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : thickness-gauges
Manufacturer : VTSYIQI202410231004110VTSYIQI
Material : ABS
MeasurementAccuracy : HIGH ACCURACY
ModelNumber : 08M49EJ460WM
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : VTSYIQI202410231004110VTSYIQI
ProductDescription :
The model MT180 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The Multi-mode feature of the gauge allows the user to toggle between puluse-echo mode (flow and pit detection), and echo-echo mode ( eliminate paint or coating thickness )
Function & application
Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications.
Technical Specifications
*Measuring range：0.65-600mm（Pulse-Echo mode),3-30mm(Echo-Echo mode)
*Resolution Accuracy：0.1/0.01mm
*Accuracy: ±0.05mm（≤10mm）；（±0.5%H+0.01）mm(>10mm)，H is the thickness of the object to be measured
*Communication storage：USB(USB communication cable is Optional Accessories )
*Working time：100h (EL backlight off).
*Main unit weight：245g
*Dimensions：150×74×32 mm.
*Power supply: two AA size alkaline batteries
Working Conditions
*Operating Temperature: －20℃～＋50℃
*Storage Temperature：-30℃～＋70℃
*Relative Humidity ≤90％
*The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.
*Standard Accessories : Host, Narrow-pulse thickness probe P5EE, ABS instrument case, Attached files
ProductSiteLaunchDate : 2017-05-01T07:00:00.000Z
Size : 11X5.2cm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 39120000
