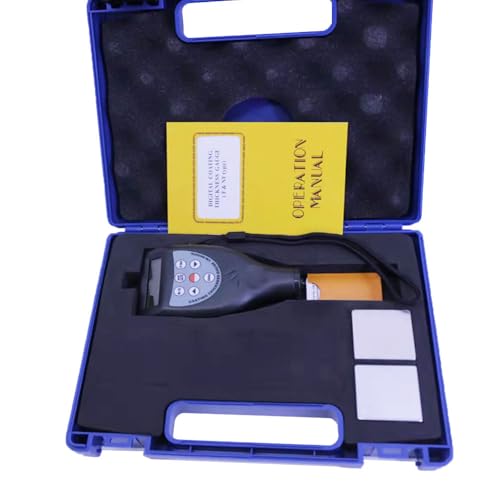

CM-8825FN Coating Thickness Gauge Digital Thickness Gauge Thickness Meter Range 0~1250um/0~50mil CM8825FN

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 65700/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
BatteriesRequired : 1
Brand : Graigar
BulletPoint : EC-770XE CoatingThickness Meter Gauge With External Probe Split coatingThickness gauge
BulletPoint1 : * Two measuring methods: magnetic induction (F) and eddy current (N) * Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
BulletPoint2 : * Metric/imperial system selectable. * Manual or automatic shut down.
BulletPoint3 : * Automatic memory of calibration value,and automatic recognize the substrate. * Operation process have buzzing reminder,while no buzzing in continuous mode.
BulletPoint4 : * Use USB/RS-232 data output to connect with PC. * Provide Bluetooth data output choice.
BulletPoint5 : * Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.
Color : as shown
ExternallyAssignedProductIdentifier : 5780414230945
ExternallyAssignedProductIdentifier1 : 0707457583239
ExternallyAssignedProductIdentifier2 : 707457583239
IncludedComponents : /
ItemName : CM-8825FN Coating Thickness Gauge Digital Thickness Gauge Thickness Meter Range 0~1250um/0~50mil CM8825FN
ItemPackageDimensions_Height : 4.13 inches
ItemPackageDimensions_Length : 6.49 inches
ItemPackageDimensions_Width : 5.12 inches
ItemPackageQuantity : 1
ItemTypeKeyword : thickness-gauges
Manufacturer : Graigar
Material : Plastic
MeasurementAccuracy : +-0.1mm
ModelName : Thickness gauge
ModelNumber : CM-8825FN
NumberOfItems : 1
PartNumber : LS201
PowerSourceType : Battery Powered
ProductDescription :

PrincipleNF Type Eddy Current / F Magnetic Induction

Range0~1250µm/0~50mil

Resolution0.1µm/1µm

Accuracy±1~3%n or ±2.5µm

Min.Radius WorkpieceF Type:convex 1.5mm/concave 25mm

NF Type:convex 3mm/concave 50mm

Min.Measuring Area6mm

Min.Sample Thickness0.3mm

Metric/ImperialConvertible

Battery IndicatorLow Battery Indicator

Automatic Power Off√

Operating ConditionsTemperature:0~50ºC

Humidity:<80%RH

Power Supply4x1.5V AAA (UM-4)Battery

Dimensions126x65x27mm

Weight81g(Not Including Batteries)


ProductSiteLaunchDate : 2019-05-08T07:00:00.000Z
Size : 0-10mm thickness gauge
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
