Specification
Brand : ELCOKITEX
BulletPoint1 : Switch Type: Normal Close
BulletPoint2 : Action Temperature: 60 Degrees Celsius
BulletPoint3 : Rated voltage/Current: 250V 10A
BulletPoint4 : Material: Metal Shell
BulletPoint5 : Application: Mainly used in household air conditioner, auto air conditioner, refrigerator, stove, deep fryer, electric oven, kitchen utensils and appliances, floor heating,3d printers etc.

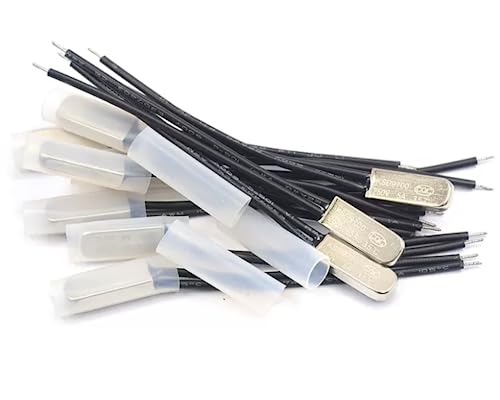

ItemName : ELCOKITEX 15Pcs Thermostat 60 Degrees Celsius Normally Close Temperature Controller Switch N.C 10A 250V Metal Thermal Switch KSD9700 for Houshold Applicances or Other Thermal Projects
ItemTypeKeyword : thermostat-controllers
Manufacturer : ELCOKITEX
Material : 10A Normally Close
NumberOfItems : 15
PartNumber : EL9700-NC10A-60C
ProductDescription : The KSD-9700 series heat protector is composed of high sensitive bimetallic disc, moving contact, static contact, fixed base, shell and temperature resistant wire. When working, the bimetallic plate is in free state, the moving contact is closed with the static contact, and the circuit is on. When the temperature of the electric appliance rises to the operating temperature of the thermal protector due to the fault heating, the bimetallic plate will be heated and produce internal stress and move quickly, push the moving contact away from the static contact and disconnect the circuit, thus cutting off the power supply of the fault electric appliance and playing the role of protecting the electric appliance. When the temperature of the protected appliance drops to the rated reset temperature value of the thermal protector, the bimetallic strip returns to the initial state and the contact closes, and the appliance returns to normal operation.

Spefication:
Name: Thermal Protector/Thermal Switch/Temperature Switch
Model: KSD9700
Switch Type: Normally Close
Material: Metal Shell
Product shell Specification: 20mm*7.4mm*3.8mm
Rated voltage /current: 250V 10A
Normal Electrical Intensity: > 800V
Normal contact resistance: <50m
Insulation Resistance: > 100M
Response speed: <1 C/min
Life times: > 10000 or more

Advantage:
Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.

Applications:
Mainly used in household air conditioner, auto air conditioner, refrigerator, stove, deep fryer, electric oven, kitchen utensils and appliances, floor heating, 3d printers etc.
ProductSiteLaunchDate : 2023-07-18T05:35:24.741Z
Style : 60 Degrees Celsius
UnspscCode : 41112209
