Specification
Brand : YZSSKU
BulletPoint : Thermostat Controllers
BulletPoint1 : The regulation is performed according to the temperature measured by the thermostat probe with a positive differential from the set point: if the temperature increases and reaches set point plus differential the compressor is started and then turned off when the temperature reaches the set point value again. In case of fault in the thermostat probe the start and stop of the compressor are timed through parameters “COn” and “COF“.
BulletPoint2 : Two defrost modes are available through the “tdF” parameter: defrost through electrical heater (tdF= EL) and hot gas defrost (tdF = in). Other parameters are used to control the interval between defrost cycles (IdF), its maximum length (MdF) and two defrost modes: timed or controlled by the evaporator’s probe (P2P).At the end of defrost dripping time is started, its length is set in the FSt parameter. With FSt =0 the dripping time is disabled.
BulletPoint3 : Forced activation of fans This function managed by the Fct parameter is designed to avoid short cycles of fans, that could happen when the controller is switched on or after a defrost, when the room air warms the evaporator. Functioning: if the difference of temperature between the evaporator and the room probes is more than the value of the Fct parameter, the fans are switched on. With Fct=0 the function is disabled.
BulletPoint4 : Cyclical activation of the fans with compressor off. When Fnc = c-n or c-Y (fans in parallel to the compressor), by means of the Fon and FoF parameters the fans can carry out on and off cycles even if the compressor is switched off. When the compressor is stopped the fans go on working for the Fon time. With Fon =0 the fans remain always off, when the compressor is off.
BulletPoint5 : Check the supply voltage is correct before connecting the instrument. Do not expose to water or moisture: use the controller only within the operating limits avoiding sudden temperature changes with high atmospheric humidity to prevent formation of condensation. Warning: disconnect all electrical connections before any kind of maintenance. Fit the probe where it is not accessible by the End User. The instrument must not be opened.
Color : Assorted Color
ExternallyAssignedProductIdentifier : 7310430424639
ExternallyAssignedProductIdentifier1 : 0765551426494
ExternallyAssignedProductIdentifier2 : 765551426494
IncludedComponents : Yes
ItemDisplayWeight : 0.05 pounds
ItemName : Dixell XR70CX-5N1C3 230V/50-60HZ Digital Thermostat Controller Defrost Fan Compressor Alarm for Medium Low Temperature Ventilated Refrigerating Units(with 2 NTC Probe Inputs)
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : thermostat-controllers
Manufacturer : YZSSKU
Material : Copper
ModelName : Water Heaters
ModelNumber : 469G136TAK101DTV8
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : Dixell-Jason2024081000009
ProductDescription : Model XR70CX-5N1C3, format 32 x 74 mm, is microprocessor based controller, suitable for applications on medium or low temperature ventilated refrigerating units. It has Four relay outputs to control compressor, fan, defrost, and alarm which can be either electrical or reverse cycle (hot gas).The HOT KEY output allows to connect the unit, by means of the external module XJ485-CX, to a network line ModBUS-RTU compatible such as the dIXEL monitoring units of X-WEB family. It allows to program the controller by means the HOT KEY programming keyboard.The instrument is fully configurable through special parameters that can be easily programmed through the keyboard.

Suitable for appliances including
for applications on medium or low temperature ventilated refrigerating units

Specification
Housing: self extinguishing ABS.
Case: XR70CX frontal 32x74 mm; depth 60mm;
Mounting: XR70CX panel mounting in a 71x29mm panel cut-out
Connections: Screw terminal block ± 2,5 mm2 wiring.
Power supply: according to the model: 230Vac ±10%,50/60Hz
Power absorption: 3VA max
Display: 3 digits, red LED, 14,2 mm high; Inputs: Up to 4 NTC or PTC probes.
Digital input: free voltage contact
Data storing: on the non-volatile memory (EEPROM).
Kind of action: 1B; Pollution grade: 2;Software class: A.;
Rated impulsive voltage: 2500V; Overvoltage Category: II
Operating temperature: 0÷60 °C;Storage temperature: -30÷85 °C.
Relative humidity: 20-85% (no condensing)
Measuring and regulation range: NTC probe: -40÷110°C (-40÷230°F);
PTC probe: -50÷150°C (-58÷302°F)

Package Include

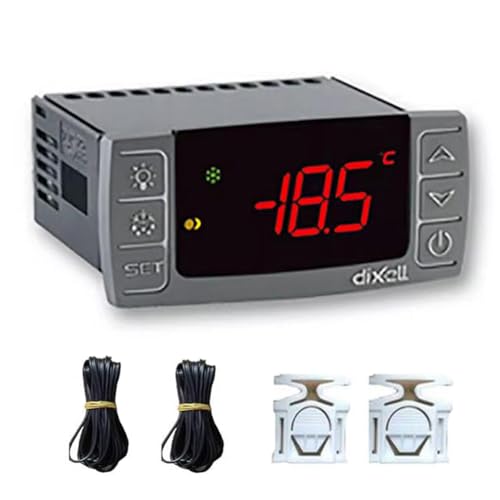

1 X Dixell XR70CX Digital Thermostat Controller(Probes included)
ProductSiteLaunchDate : 2024-08-10T10:30:30.488Z
Size : 3.10X2.00X2.00CM
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41112209
Voltage : 230 volts
