Specification
Brand : Marshall Air
BulletPoint : This is a genuine OEM (Original Equipment Manufacturer) part.
BulletPoint1 : Working voltage: 9V ~ 24V
BulletPoint2 : Input: J-type thermocouple
BulletPoint3 : Output voltage: 0.00V ~ 5.00V/0.00V ~ 10.00V
BulletPoint4 : Temperature measurement range: -100～+1000 (degrees)
ConnectorType : Screw
ExternallyAssignedProductIdentifier : 6256294946218
IncludedComponents : Replacement Part
InputVoltage : 5 volts

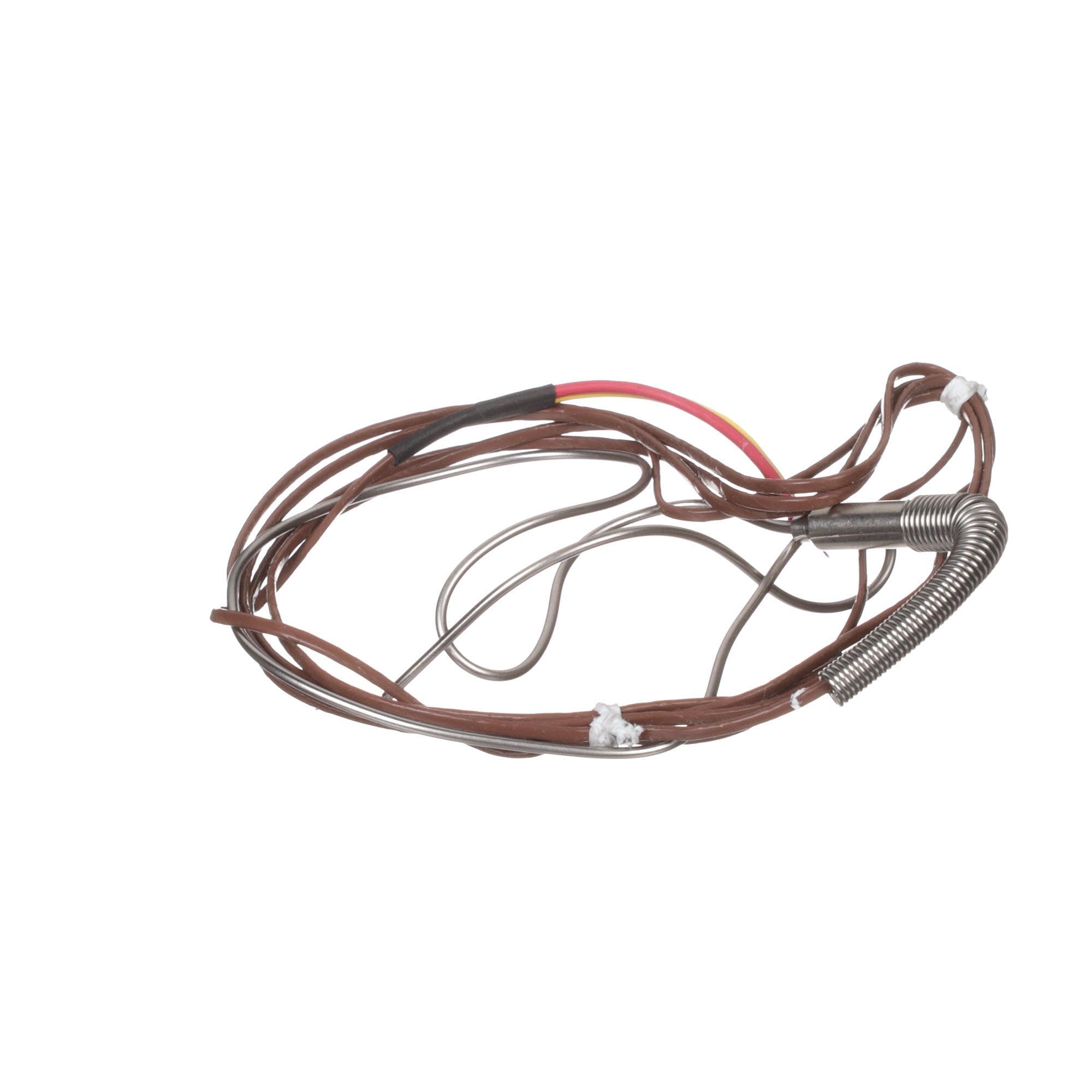

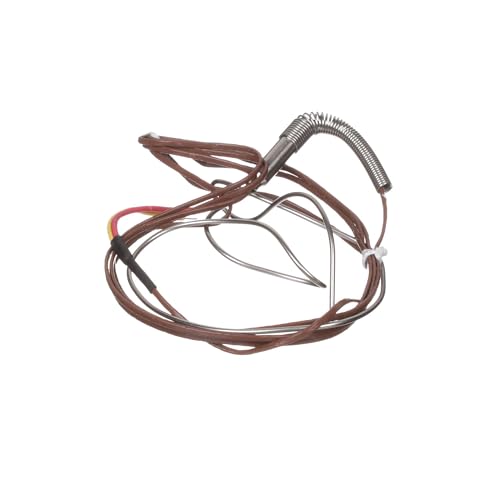

ItemName : Marshall Air Thermocouple
ItemPackageDimensions_Height : 7 inches
ItemPackageDimensions_Length : 11 inches
ItemPackageDimensions_Width : 8 inches
ItemPackageQuantity : 1
ItemTypeKeyword : thermocouple-blocks
Manufacturer : Marshall Air
Material : nickel, lead, copper
ModelNumber : 504474
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPorts : 1
PackageLevel : unit
PartNumber : 504474
ProductDescription : Specification:
1. Working voltage: 9V ~ 24V
2. Input: J-type thermocouple
3. Output voltage: 0.00V ~ 5.00V/0.00V ~ 10.00V
4. Temperature measurement range: -100～+1000 (degrees).
5. Output mode: J1 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.
6. Application scope: remote data acquisition and control equipment;
7. Size: (length) 26mm * (width) 23mm * (height) 10mm

Module interface:
24V: Power supply positive port (9V ~ 24V).
G: Power ground interface.
I+: Thermocouple positive interface.
I-: The negative terminal of thermocouple.
OUT: Signal output interface (0.00V ~ 5.00V/0.00V ~ 10.00V).
G: Power ground interface.

Note: When the output is 0.00V ~ 10.00V, the power supply voltage must be 15V.
Output (0.00V ~ 5.00V) Resolution: 0.00454545V/℃ (Volt/Celsius)
Output (0.00V ~ 10.00V) resolution: 0.00909090V/℃ (Volt/Celsius)
Calculate the measured temperature formula: (output voltage
(V)/resolution) -100°C = measured temperature (°C).

Packing: 1*J type thermocouple to voltage module


ProductSiteLaunchDate : 2021-10-23T15:11:08.916Z
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39121400
