Specification
Brand : Hilitand
BulletPoint1 : [Power Efficiency] Long-term display turn-off reduces power consumption, ensuring stable performance and simple .
BulletPoint2 : [Wide Application] Suitable for use in electric control boxes, boilers, and automobile engines, providing temperature control.
BulletPoint3 : [Data Synchronization] Data serial port output allows for synchronous collection, making installation easy in high-temperature environments.
BulletPoint4 : [Accurate Temperature Detection] Can accurately detect temperatures between 0~1024℃, with adjustable upper and lower limits for precise relay activation.
BulletPoint5 : [Delay Time Prevention] Features millisecond-level delay time to prevent output oscillation and protect the circuit from damage.
Color : Silver
ConnectorType : Crimp
ExternallyAssignedProductIdentifier : 7707663159252
ExternallyAssignedProductIdentifier1 : 781810752067
ExternallyAssignedProductIdentifier2 : 0781810752067
ExternallyAssignedProductIdentifier3 : 00781810752067
IncludedComponents : Tool
ItemDisplayWeight : 0.23 pounds

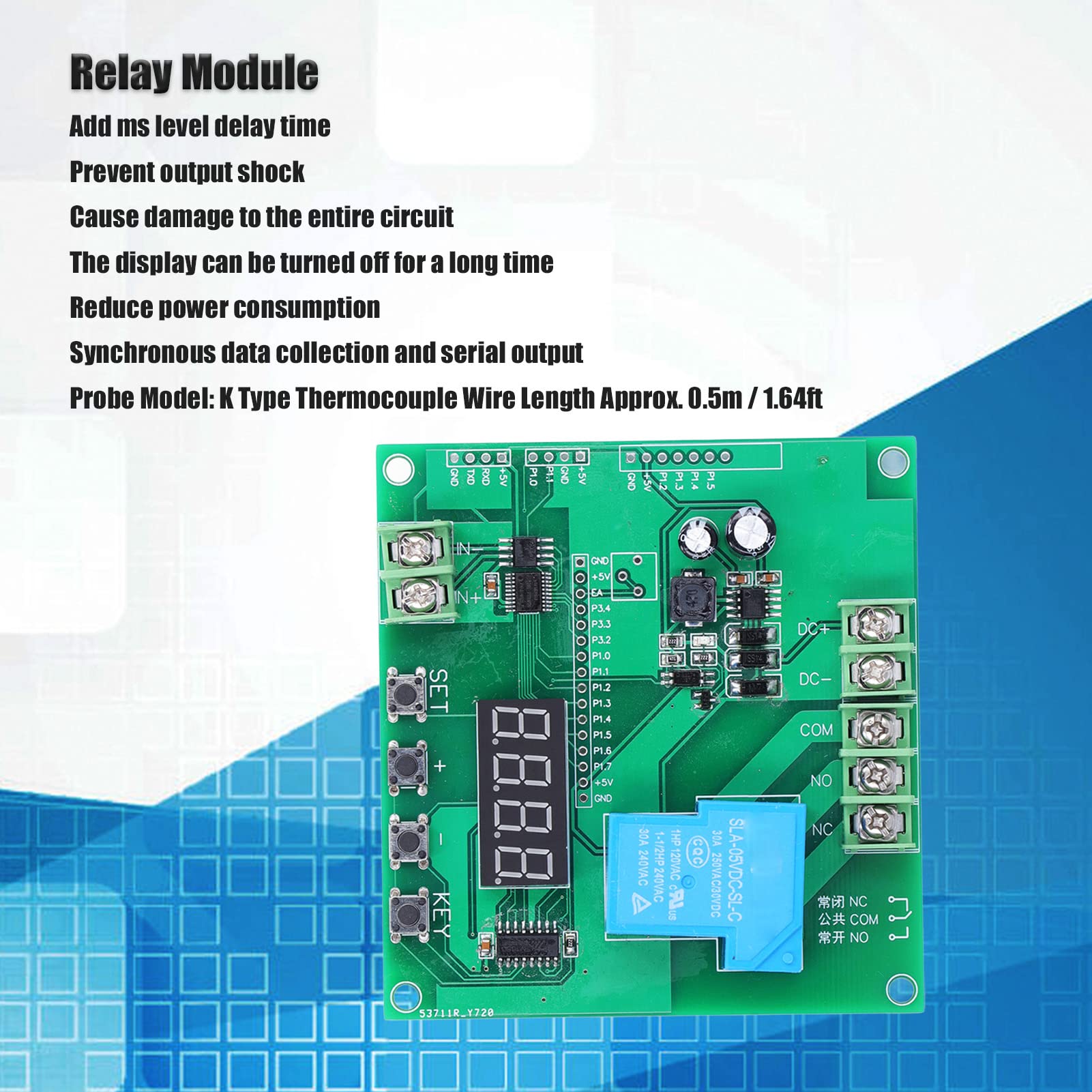

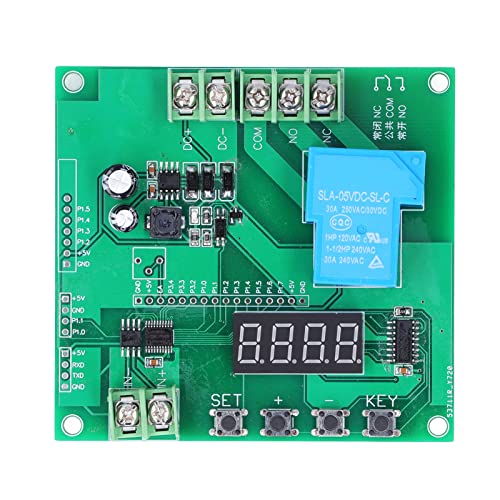

ItemName : K Type Thermocouple Module, Temperature Detection Control Relay Module Within 30A Switch, Data Synchronous Output, 0~1024℃, MS Delay Time, Long Life for Electric Control Boxes,
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 2
ItemTypeKeyword : thermocouple-blocks
Manufacturer : Hilitand
Material : plastic
MaximumVoltage : 35 volts
MeasurementSystem : Imperial
ModelName : Hilitandbug1t9vhdz
ModelNumber : Hilitandbug1t9vhdz
NumberOfItems : 2
PartNumber : Hilitandbug1t9vhdz
ProductDescription : Spec:

Item Type: K Type Thermocouple Module
Material: Plastic
Input Power Supply Voltage: DC 7~30V Universal
Output Controllable Power: DC AC High Power Within 30A Universal
Probe Model: K Type Thermocouple Wire Length Approx. 0.5m / 1.64ft
Screw Head Specifications: M6
Resolution: 1 ℃


How to Use:
Function Description: A and B are the values that we can set through the buttons ourselves
P-1: When the measurement is lower than the temperature value A, the relay is closed, and the temperature is higher than the temperature value B and the relay is disconnected
P-2: When the measurement is higher than the temperature value B, the relay is closed, and the temperature is lower than the temperature value A and the relay is disconnected
P--3: When the measured temperature is between A and B, the relay is disconnected, and the relay is closed in other cases
P-4: When the measured temperature is between A and B, the relay is closed, otherwise the relay is disconnected
P-5: When the measured temperature is higher than the temperature value B, the relay is closed, and the relay is disconnected when the temperature is lower than A
P-6: When the measured temperature is higher than the temperature value A, the relay is closed; always keep closed; until the power is manually cut off
P--7: When the measured temperature is equal to A each time, the relay outputs a jog signal




Package List:
1 x Relay Module
1 x Probe



ProductSiteLaunchDate : 2025-02-17T17:18:45.614Z
SpecificationMet1 : UL
SpecificationMet2 : CSA
StudSize : 5/8 Inch
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
TemperatureRating : 257 degree celsius
UnitCount : 1
UnspscCode : 39122200
Voltage : 600 volts
