Specification
AgeRangeDescription : Adult
Brand : Digi-Sense
BulletPoint : Sensor PS3-W6S
BulletPoint1 : Maximum temperature: 221° F (105° C).
BulletPoint2 : Each probe comes with color coded ANSI miniconnectors: type J-black, type K-yellow, and type T-blue.
BulletPoint3 : Custom designs or changes to this product are available upon request
BulletPoint4 : 6 month warranty
BulletPoint5 : 20-gauge (0.032" dia) Thermocouple Wire with PVC/PVC Insulation
CareInstructions : Wipe Clean
Color : Blue
ConnectorGender : Male-to-Female
ExternallyAssignedProductIdentifier : 4714094405837
ExternallyAssignedProductIdentifier1 : 0765057027638
ExternallyAssignedProductIdentifier2 : 765057027638
IncludedComponents : AMDSG08
ItemLength : 120 inches
ItemName : Digi-Sense Type-T, Extension Cable, Mini Connector, 10ft, 20-Gauge
ItemPackageDimensions_Height : 0.7 inches
ItemPackageDimensions_Length : 7.19 inches
ItemPackageDimensions_Width : 7.09 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : industrial-temperature-sensors
Manufacturer : Cole-Parmer
Material : Pvc
ModelNumber : AO-08505-30
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : AO-08505-30
PowerSourceType : ac/dc
ProductDescription :

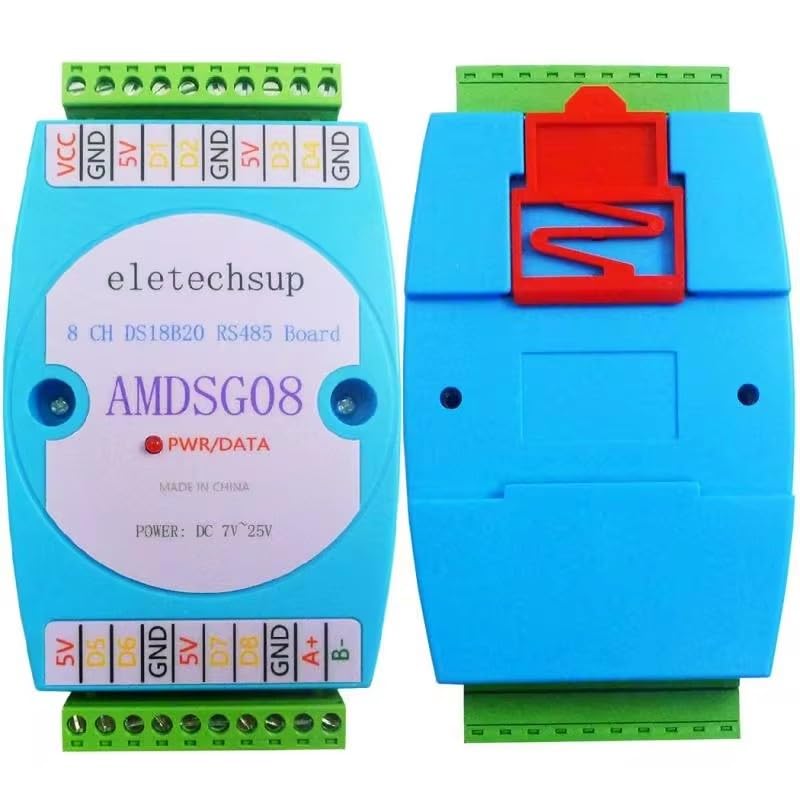

Product Name: 8CH DS18B20 temperature acquisition module / RS485 MODBUS RTU communication replace WP3066ADAM

Package inlcuded:

1 PCS DC 7-30V 8 Channel RS485 DS18B20 Temperature Collector

1 Product description

(1)8ch DS18B20 input channel

(2)RS485 MODBUS RTU standard communication protocol,Netted with configuration software, PLC or industry touch panel

(3)Communication circuit designed for thunder protection and interference immunity

(4)Used for signal collection and control in industrial field

2 Specification

1 Working voltage: DC 7-30V (9V 12V 24V)

2 Working current: 8-22MA

3 Using DS18B20 temperature sensor, up to 8 DS18B20 temperature sensors can be connected at the same time

4 The temperature measurable range is: -55°C to +125°C (-67°F to +257°F).

5 The temperature has an accuracy of +-0.5°C when the temperature is within -10 to 85°C.

6 RS485 communication isolation protection 3000VDC

7 Standard MODBUS RTU command (function code, 06/16 Write, 03/04 Read )

8 Supported baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200

9 Parity: No parity (default) Even parity Odd parity

10 Installation method Standard DIN rail installation

11 Size: 125×70×30mm

12 Weight: 114 grams

3 Interface definition:

VCC : Power input+

GND: Power input-

5V: DS18B20 power supply+

GND: DS18B20 power supply-

D1: DS18B20 channel 1 data port

D2: DS18B20 channel 2 data port

D3: DS18B20 channel 3 data port

D4: DS18B20 channel 4 data port

D5: DS18B20 channel 5 data port

D6: DS18B20 channel 6 data port

D7: DS18B20 channel 7 data port

D8: DS18B20 channel 8 data port

A+: RS485 signal A+

B-: RS485 signal B-

For more information, please contact me

Application

Thermostatic Controls

Industrial Systems

Consumer Products

Thermometers

Thermally Sensitive Systems

Indoor and outdoor temperature measurement

Weather forecasting, and monitoring

Temperature in Computer Room

Warehouse temperature

PLC analog expansion

RS485 Networking Diagram

ProductSiteLaunchDate : 2016-11-01T08:00:01.000Z
ResponseTime : 2 seconds
Reusability : Reusable
Size : TES1-03102
SpecificationMet : ANSI
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26121600
