Specification
Brand : Respicefinem
BulletPoint1 : Temperature Regulation with Advanced Chip: The pid controller boasts a built-in high- chip, ensuring sensitivity and accuracy in temperature control for demanding applications. It provides consistent performance with a temperature measurement error of merely ±1°C
BulletPoint2 : Versatile Temperature Display Resolution: Catering to global users, this pid temperature controller supports both Celsius and Fahrenheit displays. Its impressive 0.1°C/0.1°F digital display resolution guarantees meticulous monitoring and adjustment capabilities
BulletPoint3 : Flexible Output Options for Convenience: Offering a unique blend of flexibility, the temp controller supports both relay and SSR outputs. Users can effortlessly switch between the two based on their system requirements, enhancing compatibility and usability
BulletPoint4 : Compact Design for Any Environment: With a short, 85mm-depth form factor, this pid sensors is not only space-saving but also easily portable and installable. Its robust, flame-retardant housing ensures waterproof, dustproof, and anti-shock properties, for challenging industrial settings
BulletPoint5 : Universal Compatibility Interface: The digital temperature controller accepts a wide range of thermocouples (K, E, J, N, S, T, R, B, Pt100, etc.), allowing users to customize inputs as needed. Its intuitive interface and PID control with self-tuning further simplify setup and , enhancing overall efficiency
IncludedComponents : No
ItemName : Respicefinem Pid Controller Digital Pid Temperature Controller Relay SSR Output 48mmx48mm Heat Detector Intelligent Temperature Controller Set
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemTypeKeyword : temperature-controllers
Manufacturer : Respicefinem
ModelNumber : Respicefinem82fpa15izk
NumberOfItems : 1
PartNumber : Respicefinem82fpa15izk
ProductDescription : Features:
1. Built-in high chip for high sensitivity and accurate temperature control.
2. Support ℃/℉ temperature display.
3. When the thermocouple signal is input, the resolution of digital display can reach 0.1 ℃/0.1℉.
4. Relay and SSR integration, users can freely use relay output or SSR output.
5. Short shell design, only 85mm depth, easy to carry and mount.

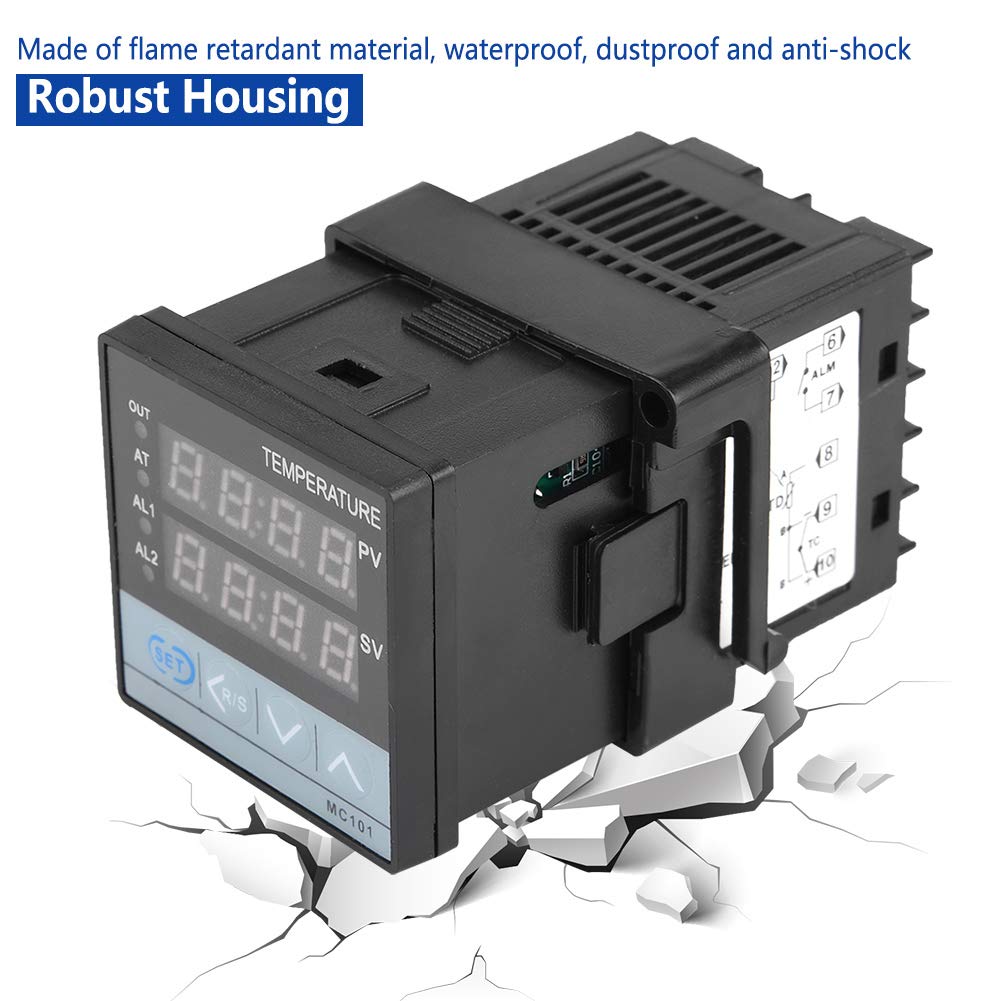

6. Robust flame-retardant housing, waterproof, dustproof and anti-shock.

Specification:

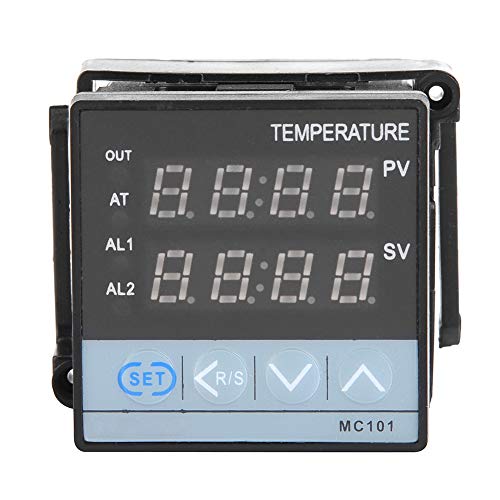

Model: MC101
Control type: temperature
Control mode: PID control and self-tuning control
Power consumption:
Measurement object: temperature
Temperature range: -199~1300°C
Temperature measurement error: ±1°C
Measurement accuracy: ±0.5%FS
Working voltage: 85~265V
Output signal: Relay/SSR output
Display: °F or °C
Input: Universal input (K, E, J, N, S, T, R, B, Pt100, etc., can be changed by yourself)
Minimum resolution: 0.1°C / 0.1°F
Mounting type: embedded panel
Mounting size: 45*45mm / 1.8*1.8in
Dimensions: 48*48*85mm / 1.9*1.9*3.3in
Weight: Approx. 142g/5.0oz

Package List:
1 * Digital PID Temperature Controller

Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
